2006 HYUNDAI KIA KIT450 CNC TURNING CENTER WITH FANUC SERIES 0I-TC CONTROL

Description

2006 HYUNDAI KIA KIT450 CNC TURNING CENTER WITH FANUC SERIES 0I-TC CONTROL

MANUFACTURER: HYUNDAI KIA MACHINE
MODEL: KIT450
S/N: KIT4502770
YEAR: 2006

OPERATING TIME: 28321
CUTTING TIME: 18666

POWER: 200/220V 50/60HZ 3PH 13KVA
CONTROL VOLT. AC 100/110V DC24V

GENERAL SPECIFICATIONS
MACHINE TYPE: GANG-TYPE CNC TURNING CENTER
NUMBER OF AXES: 2
BED TYPE: 60° SLANT BED STRUCTURE
SLIDE TYPE: LM GUIDEWAY

TRAVEL
TRAVEL X AXIS: 450 MM [17.7 IN]
TRAVEL Z AXIS: 300 MM [11.8 IN]

CAPACITY
SWING OVER BED: 20.9 INCHES
MAXIMUM TURNING DIAMETER: 6.5 INCHES
MAXIMUM TURNING LENGTH: 12.8 INCHES
BAR CAPACITY: 1.8 INCHES

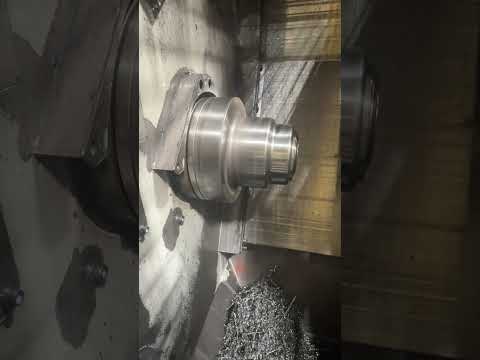

SPINDLE
CHUCK SIZE: 6.5 INCHES
SPINDLE BORE: 2.05 INCHES
SPINDLE SPEED RANGE: 50 TO 6,000 RPM
SPINDLE MOTOR (MAX/CONTINUOUS): 15/11 KW (20/15 HP)
SPINDLE TORQUE (MAX/CONTINUOUS): 70 / 51 FT.LB
SPINDLE TYPE: BELT DRIVE
SPINDLE NOSE: A2-5

FEED
TRAVEL (X/Z): 450/300 MM (17.7/11.8 INCHES)
RAPID TRAVEL (X/Z): 30/36 M/MIN (1,181/1,417 IPM)

TOOLING
NUMBER OF TOOLS: 6
TOOL SIZE OD: 1 INCH
TOOL SIZE ID: 1.25 INCHES

TANK CAPACITY
COOLANT TANK: 120 LITERS (31.7 GALLONS)
LUBRICATING TANK: 1.8 LITERS (0.48 GALLONS)​

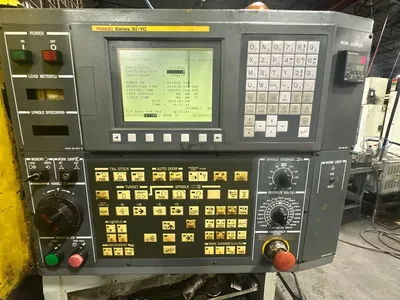

CNC CONTROL: FANUC SERIES 0I-TC

WEIGHT: 2800 KG
MACHINE DIMENSIONS: 85'' X 65'' X 89''
