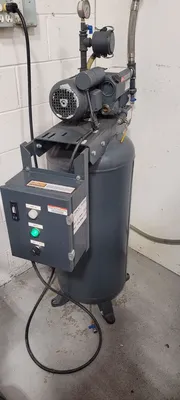

2019 Busch STM RC0021 compact vacuum system
Have one to sell?
ConditionUsed
1 available
2019 Busch STM RC0021 compact vacuum system
MANUFACTURER: BUSCH
MODEL: R5 RC0021 C
SERIAL NO.: U191600001
MFG DATE: 2019
POWER: 115V 1PH 60HZ
PUMP SPECS
NOMINAL PUMPING SPEED: 20 M³/H
ULTIMATE PRESSURE: 20.0 HPA (MBAR)
NOMINAL MOTOR RATING: 0.75 KW
NOMINAL MOTOR SPEED: 3000 MIN⁻¹
NOISE LEVEL (ISO 2151): 66 DB(A)
OIL CAPACITY: 0.45 L
GAS INLET: G ½″
LUBRICANT RETURN LINE FOR CONTINUOUS DUTY
INLET FILTER CANISTER WITH REMOVABLE PAPER CARTRIDGE
INLET GAUGE
INITIAL CHARGE FOR BUSCH R580 VACUUM PUMP LUBRICANT
COMPOSITE VANES FOR COOLER OPERATION AND EXTENDED LIFE
OIL LUBRICATED PUMP WITH SPIN-ON AUTOMOTIVE TYPE OIL FILTER
COALESCENT TYPE OIL REMOVAL EXHAUST FILTER, 99.9% EFFICIENT
COMPACT DESIGN ALLOWS FOR SMALL FOOTPRINT AND EASY SERVICING IN THE FIELD
UNITS OPERATE QUIET WITH VERY LOW VIBRATION
NON-RETURN VALVE
30 US GALLONS STEEL VERTICAL TANK
MANUAL SYSTEM ISOLATION VALVE
MANUAL DRAIN VALVE
PUMP MOUNTED ON TANK FOR COMPACT FOOTPRINT

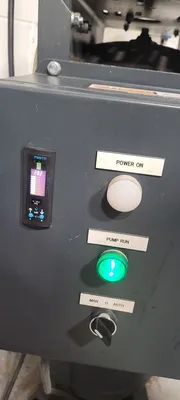

SIMPLEX RELAY CONTROL PANEL
CSA APPROVED
1.0 HP MAGNETIC MOTOR STARTER WITH FUSE PROTECTION
THREE POSITION SELECTOR SWITCH (MANUAL-AUTO-STOP)
SQUARE D DIAPHRAGM MECHANICAL VACUUM SWITCH
CONTROL VOLTAGE TRANSFORMER
PUMP RUNNING LIGHT
POWER ON LIGHT
2019 Busch STM RC0021 compact vacuum system
MANUFACTURER: BUSCH
MODEL: R5 RC0021 C
SERIAL NO.: U191600001
MFG DATE: 2019
POWER: 115V 1PH 60HZ
PUMP SPECS
NOMINAL PUMPING SPEED: 20 M³/H
ULTIMATE PRESSURE: 20.0 HPA (MBAR)
NOMINAL MOTOR RATING: 0.75 KW
NOMINAL MOTOR SPEED: 3000 MIN⁻¹
NOISE LEVEL (ISO 2151): 66 DB(A)
OIL CAPACITY: 0.45 L
GAS INLET: G ½″
LUBRICANT RETURN LINE FOR CONTINUOUS DUTY
INLET FILTER CANISTER WITH REMOVABLE PAPER CARTRIDGE
INLET GAUGE
INITIAL CHARGE FOR BUSCH R580 VACUUM PUMP LUBRICANT
COMPOSITE VANES FOR COOLER OPERATION AND EXTENDED LIFE
OIL LUBRICATED PUMP WITH SPIN-ON AUTOMOTIVE TYPE OIL FILTER
COALESCENT TYPE OIL REMOVAL EXHAUST FILTER, 99.9% EFFICIENT
COMPACT DESIGN ALLOWS FOR SMALL FOOTPRINT AND EASY SERVICING IN THE FIELD
UNITS OPERATE QUIET WITH VERY LOW VIBRATION
NON-RETURN VALVE
30 US GALLONS STEEL VERTICAL TANK
MANUAL SYSTEM ISOLATION VALVE
MANUAL DRAIN VALVE
PUMP MOUNTED ON TANK FOR COMPACT FOOTPRINT
SIMPLEX RELAY CONTROL PANEL
CSA APPROVED
1.0 HP MAGNETIC MOTOR STARTER WITH FUSE PROTECTION
THREE POSITION SELECTOR SWITCH (MANUAL-AUTO-STOP)
SQUARE D DIAPHRAGM MECHANICAL VACUUM SWITCH
CONTROL VOLTAGE TRANSFORMER
PUMP RUNNING LIGHT
POWER ON LIGHT
