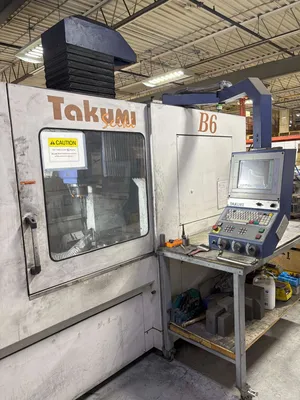

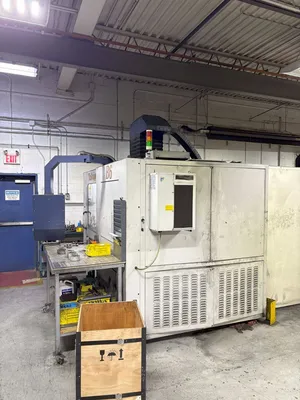

2003 TAKUMI B6 3-AXIS VERTICAL MACHINING CENTER WITH SELCA CONTROL

Description

2003 TAKUMI B6 3-AXIS VERTICAL MACHINING CENTER WITH SELCA CONTROL

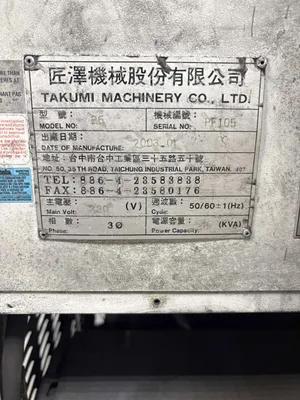

MANUFACTURER: TAKUMI SEIKI
MODEL: B6
SERIAL NO.: PF105
MFG DATE: 2003

POWER: 380V 50/60HZ 3PH
POWER CAPACITY: 35 KVA

Travel
X-axis: 800 mm
Y-axis: 600 mm
Z-axis: 450 mm
Distance between spindle nose & table surface: 85–535 mm
Distance between columns: 720 mm

Table
Size (X*Y): 900 × 600 mm
Load capacity: 1200 kg
T-slot: 14 mm × 7

Spindle
Spindle speed: 40,000 rpm (built-in)
Spindle drive motor: 20 kW
Spindle taper hole: 1/10 No. 40 taper

ATC (Automatic Tool Changer)
Tool shank: HSK-E40
Magazine capacity: 20 tools
Magazine type: Disk
Max. tool diameter: Ø16 mm
Max. tool length: 150 mm
Max. tool weight: 1.5 kg

Feed Rate
Rapid traverse (X/Y/Z): 40/40/40 m/min
Cutting feed: 40,000 mm/min
Motors (X/Y/Z): 5.7 / 7.5 / 7.6 kW

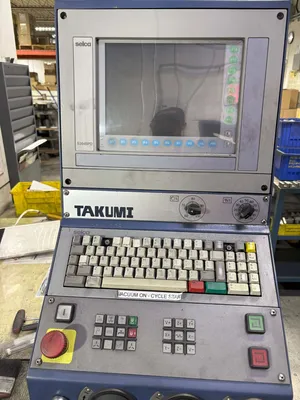

CNC Control: Selca 3045PD

Dimensions (L × W × H): 2870 × 1984 × 2936 mm
Machine Weight: 7200 kg
