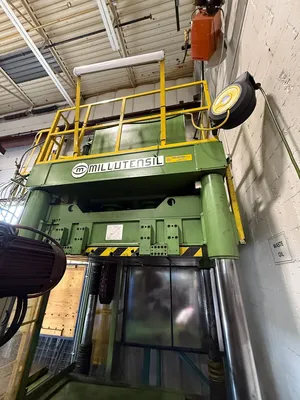

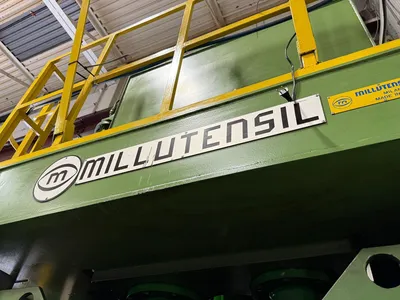

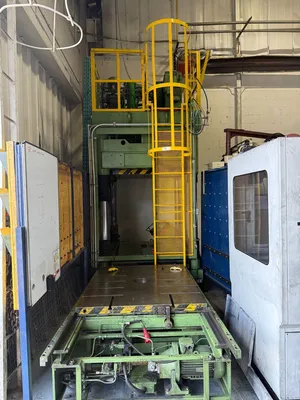

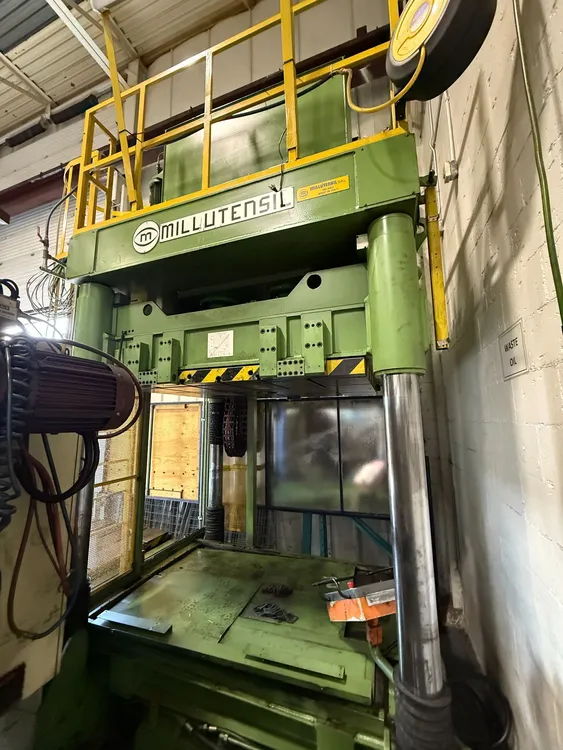

1995 MILLUTENSIL MIL162 110-TON DIE-TRYOUT AND SPOTTING PRESS
Have one to sell?
ConditionUsed
1 available
1995 MILLUTENSIL MIL162 110-TON DIE-TRYOUT AND SPOTTING PRESS
Manufacturer: Millutensil
Model: MIL162
Mfg Date: 1995
POWER: 400V 60HZ 20KW 4.5A
Capacity: 110 tons (~1,000 kN)
Platen Size: 62.99'' × 51.18'' (1600 × 1300 mm)
Column Spacing (L × H): 67.32'' × 53.93''
Max Upper/Lower Load: ~8,000 kg / ~16,000 kg
Forces (close / open): ~224,800 lbf (1,000 kN) / ~33,700 lbf
Speed (quick / working / return): 157 ipm / 19.6 ipm / 78.74 ipm
Plate Rotation Up to: 180° selectable
Motor Power (total): 24 HP (~18 kW)
Speed Feed Rates: Approach: 65–80 mm/s, working: 8 mm/s, return: 35–50 mm/s
Tilting: Lower ±70°, Upper ~100°

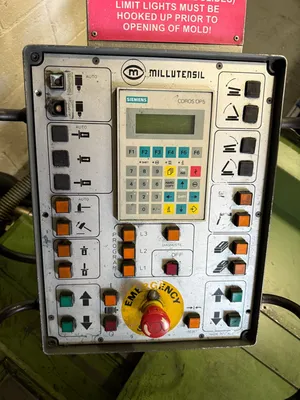

Control System: Siemens PLC, COROS OP5 Touch Panel
Dimensions: 210'' X 119'' X 161''
Weight: 42,000 LBS
1995 MILLUTENSIL MIL162 110-TON DIE-TRYOUT AND SPOTTING PRESS
Manufacturer: Millutensil
Model: MIL162
Mfg Date: 1995
POWER: 400V 60HZ 20KW 4.5A
Capacity: 110 tons (~1,000 kN)
Platen Size: 62.99'' × 51.18'' (1600 × 1300 mm)
Column Spacing (L × H): 67.32'' × 53.93''
Max Upper/Lower Load: ~8,000 kg / ~16,000 kg
Forces (close / open): ~224,800 lbf (1,000 kN) / ~33,700 lbf
Speed (quick / working / return): 157 ipm / 19.6 ipm / 78.74 ipm
Plate Rotation Up to: 180° selectable
Motor Power (total): 24 HP (~18 kW)
Speed Feed Rates: Approach: 65–80 mm/s, working: 8 mm/s, return: 35–50 mm/s
Tilting: Lower ±70°, Upper ~100°
Control System: Siemens PLC, COROS OP5 Touch Panel
Dimensions: 210'' X 119'' X 161''
Weight: 42,000 LBS
