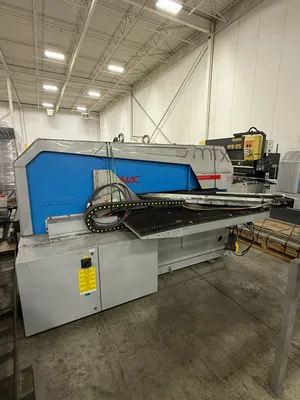

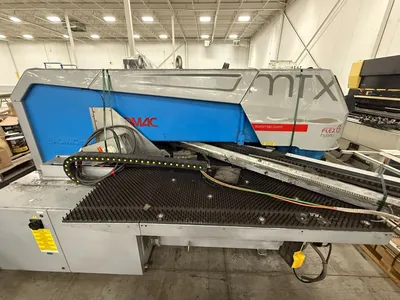

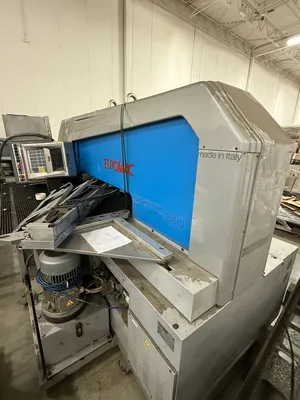

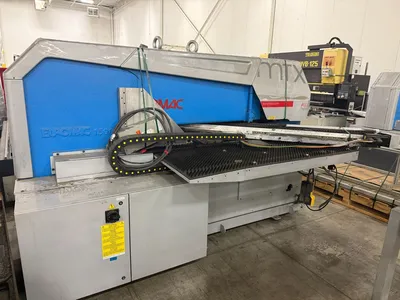

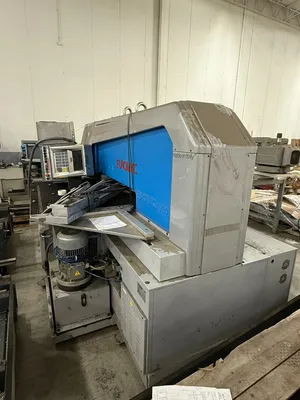

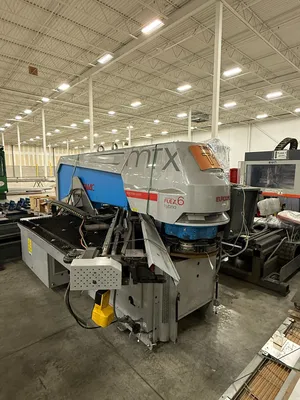

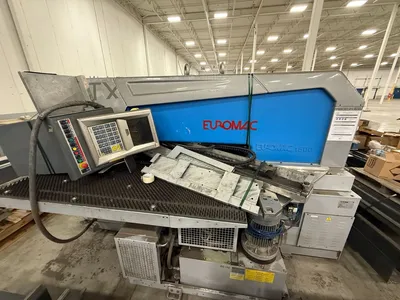

2014 EUROMAC MTX FLEX 6 TURRET PUNCH
Have one to sell?
ConditionUsed
1 available
2014 EUROMAC MTX FLEX 6 TURRET PUNCH

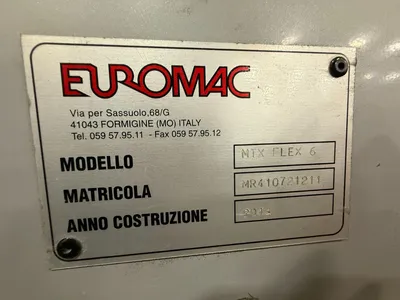

Manufacturer: Euromac
Model: MTX Flex 6
Mfg Date: 2014
POWER: 575V 60HZ 3PH
7.5KW 10.7A
Punching force: 30 Ton
Max steel thickness: 6 mm
Working area (X × Y): ~2,550 mm × 1,300 mm
X-axis repositioning up to: 10,000 mm (~10 m)
Stroke depth: 0.1–31 mm
Stroke rate (nibbling / punching): 1,000 / 375 strokes/min
Accuracy (position / repeat): ± 0.05 mm / ± 0.10 mm
Turret configuration: 6 × D stations: 3 auto‑index + 3 fixed
Table Size Overall: 127'' X 192''
Machine weight: 8,100 kg
Machine Dimensions: 183'' X 192'' X 78''
2014 EUROMAC MTX FLEX 6 TURRET PUNCH
Manufacturer: Euromac
Model: MTX Flex 6
Mfg Date: 2014
POWER: 575V 60HZ 3PH
7.5KW 10.7A
Punching force: 30 Ton
Max steel thickness: 6 mm
Working area (X × Y): ~2,550 mm × 1,300 mm
X-axis repositioning up to: 10,000 mm (~10 m)
Stroke depth: 0.1–31 mm
Stroke rate (nibbling / punching): 1,000 / 375 strokes/min
Accuracy (position / repeat): ± 0.05 mm / ± 0.10 mm
Turret configuration: 6 × D stations: 3 auto‑index + 3 fixed
Table Size Overall: 127'' X 192''
Machine weight: 8,100 kg
Machine Dimensions: 183'' X 192'' X 78''
