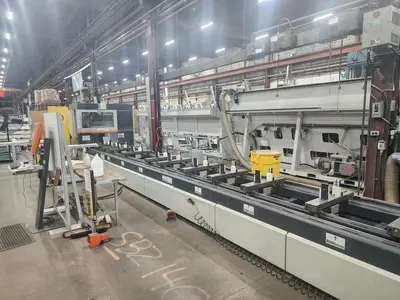

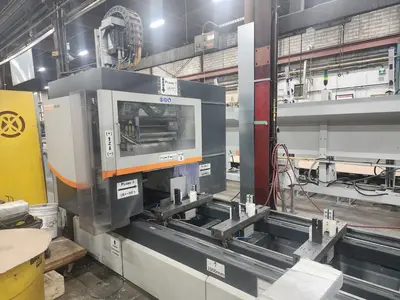

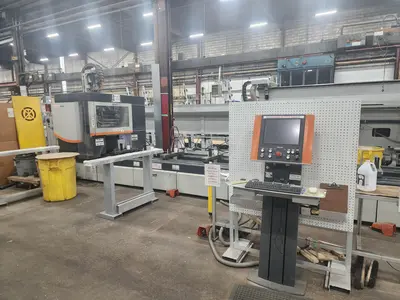

2012 ELUMATEC SBZ140 PROFILE MACHINING CENTER
Have one to sell?
ConditionUsed
1 available
2012 ELUMATEC SBZ140 PROFILE MACHINING CENTER
Manufacturer: Elumatec
Model: SBZ140
Mfg Date: 2012
POWER: 400V 3PH 50/60HZ
Machine Type: 4‑axis profile machining centre for aluminium and thin‑walled steel
Spindle: Up to 24,000 RPM; 11 kW S1 — air‑cooled standard; optionally water‑cooled
Tool Interface: HSK‑63F
Tool Magazine: Standard 8‑tool; optional 16‑station stationary magazine
A‑axis Pivot Range: –90° to +90° (or 0°–180° with programming in 0.1° steps)
Travel Speeds X: max 63 m/min; Y & Z: max 60 m/min
Travels: X-axis matches bed length; Y ≈845 mm; Z ≈620 mm (some variants up to ~650 mm)
Positioning Accuracy: ≈0.1 mm
Controls & Software: 4-axis CNC, Windows OS, eluCam, 18.5″ color display, USB, network
Machine Weight: 7,400 kg
2012 ELUMATEC SBZ140 PROFILE MACHINING CENTER
Manufacturer: Elumatec
Model: SBZ140
Mfg Date: 2012
POWER: 400V 3PH 50/60HZ
Machine Type: 4‑axis profile machining centre for aluminum and thin‑walled steel
Spindle: Up to 24,000 RPM; 11 kW S1 — air‑cooled standard; optionally water‑cooled
Tool Interface: HSK‑63F
Tool Magazine: Standard 8‑tool; optional 16‑station stationary magazine
A‑axis Pivot Range: –90° to +90° (or 0°–180° with programming in 0.1° steps)
Travel Speeds X: max 63 m/min; Y & Z: max 60 m/min
Travels: X-axis matches bed length; Y ≈845 mm; Z ≈620 mm (some variants up to ~650 mm)
Positioning Accuracy: ≈0.1 mm
Controls & Software: 4-axis CNC, Windows OS, eluCam, 18.5″ color display, USB, network
Machine Weight: 7,400 kg
