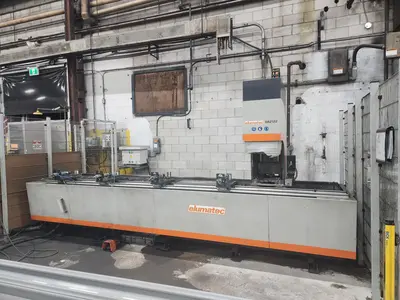

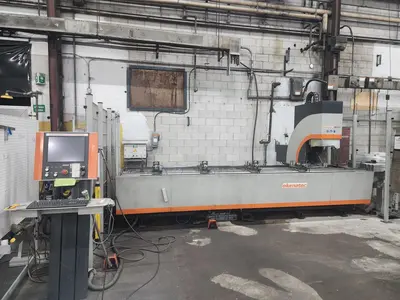

2010 ELUMATEC SBZ122/33 PROFILE MACHINING CENTER
Have one to sell?
ConditionUsed
1 available
2010 ELUMATEC SBZ122/33 PROFILE MACHINING CENTER
Manufacturer: Elumatec
Model: SBZ 122/33
POWER: 400V 3PH 50/60HZ
Axis: 3-Axis
X‑axis travel: 151.6'' (3,850 mm)
Y‑axis travel: 13.7''(350 mm)
Z‑axis travel: 11.0'' (280 mm)
Feed rate (X/Y/Z): ~1,968″/min / ~1,176″/min ~60 m/min / ~30 m/min
Max spindle speed: 24,000 RPM
Spindle power: ~9.3 HP 7 kW S1
Tool interface: HSK‑F63
Tool positions: 6–10 + angle-head
Max cutter diameter: 2.4'' (63 mm)
Positioning accuracy: ±0.003'' ±0.1 mm
Compressed air pressure: ~102 psi 7 bar
Air consumption: ~75 L/min
Weight: 2000 Kgs
2010 ELUMATEC SBZ122/33 PROFILE MACHINING CENTER
Manufacturer: Elumatec
Model: SBZ 122/33
POWER: 400V 3PH 50/60HZ
Axis: 3-Axis
X‑axis travel: 151.6'' (3,850 mm)
Y‑axis travel: 13.7''(350 mm)
Z‑axis travel: 11.0'' (280 mm)
Feed rate (X/Y/Z): ~1,968″/min / ~1,176″/min ~60 m/min / ~30 m/min
Max spindle speed: 24,000 RPM
Spindle power: ~9.3 HP 7 kW S1
Tool interface: HSK‑F63
Tool positions: 6–10 + angle-head
Max cutter diameter: 2.4'' (63 mm)
Positioning accuracy: ±0.003'' ±0.1 mm
Compressed air pressure: ~102 psi 7 bar
Air consumption: ~75 L/min
Weight: 2000 Kgs
