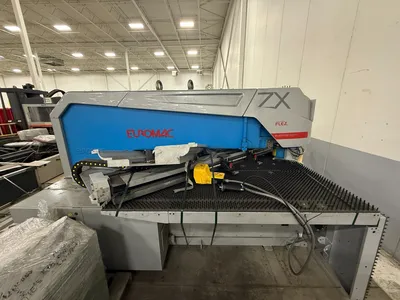

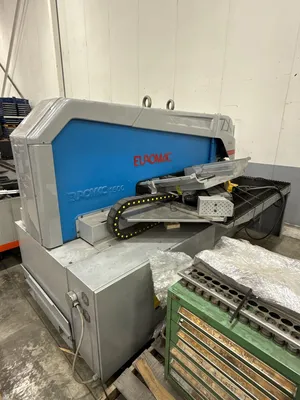

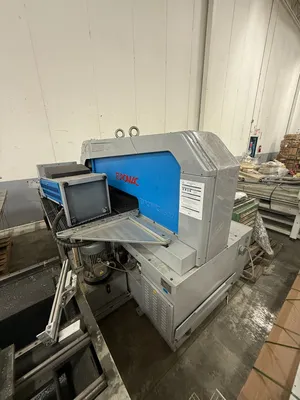

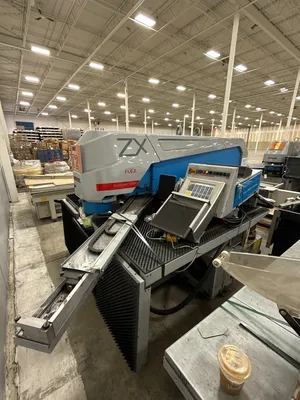

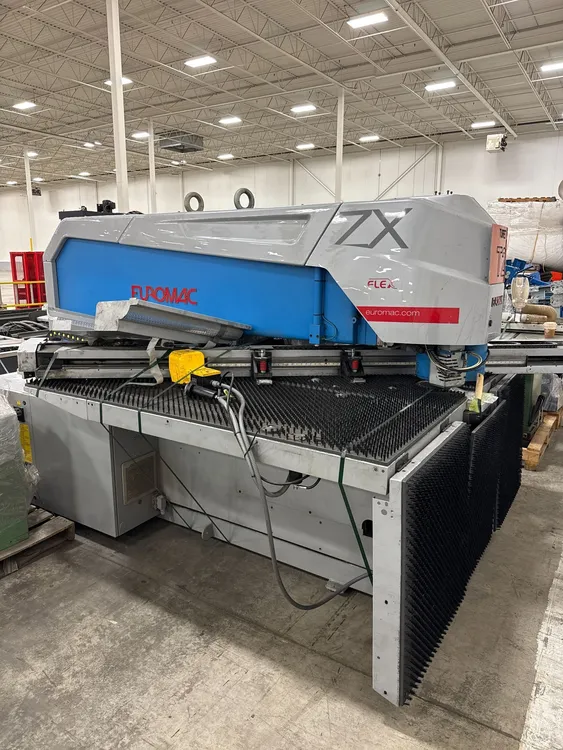

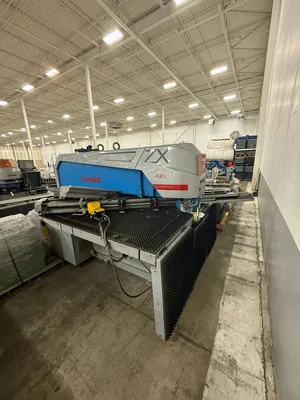

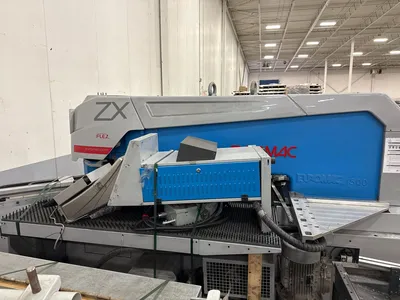

2013 EUROMAC ZX FLEX 1500 TURRET PUNCH
Have one to sell?
ConditionUsed
1 available
2013 EUROMAC ZX FLEX 1500 TURRET PUNCH
Manufacturer: Euromac
Model: ZX Flex 1500
POWER: 575V 60HZ 3PH
7.5KW 10.7A
Punching Force: 24 Ton
Work Range (no reposition): 1500 × 2500 mm
X Auto-Reposition: Up to 10,000 mm
Y Throat: 1500 mm
Sheet Thickness (typical steel): 0.5–6.5 mm
Hit Rates:
375 spm @ 20 mm pitch
1000 spm nibbling @ 1 mm
2000 spm marking
Positioning Accuracy: ±0.05 mm
Forming Repeatability: ±0.1 mm
Table: Brush table
Max Sheet Weight: ≈200 kg (at reduced axis speed)
Air Requirements: 6 bar, ≈800–1000 L/min
Control System: Windows-based CNC with CAN-bus; Toppunch® programming; graphic simulation; UPS

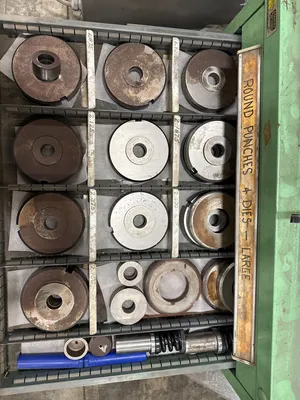

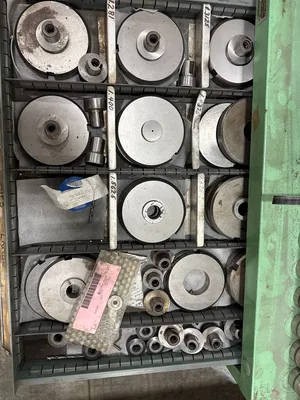

**INCLUDES TOOLING**
TABLE DIMENSIONS: 127'' X 192''
WEIGHT: 20,000 LBS
MACHINE DIMENSIONS. 183'' X 192'' X 78''
2013 EUROMAC ZX FLEX 1500 TURRET PUNCH
Manufacturer: Euromac
Model: ZX Flex 1500
POWER: 575V 60HZ 3PH
7.5KW 10.7A
Punching Force: 24 Ton
Work Range (no reposition): 1500 × 2500 mm
X Auto-Reposition: Up to 10,000 mm
Y Throat: 1500 mm
Sheet Thickness (typical steel): 0.5–6.5 mm
Hit Rates:
375 spm @ 20 mm pitch
1000 spm nibbling @ 1 mm
2000 spm marking
Positioning Accuracy: ±0.05 mm
Forming Repeatability: ±0.1 mm
Table: Brush table
Max Sheet Weight: ≈200 kg (at reduced axis speed)
Air Requirements: 6 bar, ≈800–1000 L/min
Control System: Windows-based CNC with CAN-bus; Toppunch® programming; graphic simulation; UPS
**INCLUDES TOOLING**
TABLE DIMENSIONS: 127'' X 192''
WEIGHT: 20,000 LBS
MACHINE DIMENSIONS. 183'' X 192'' X 78''
