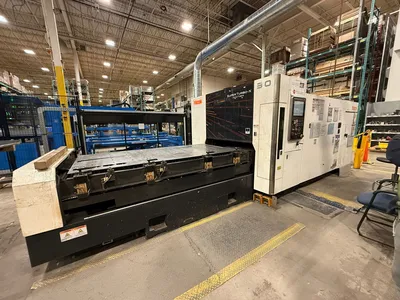

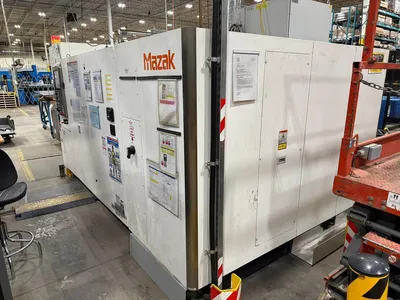

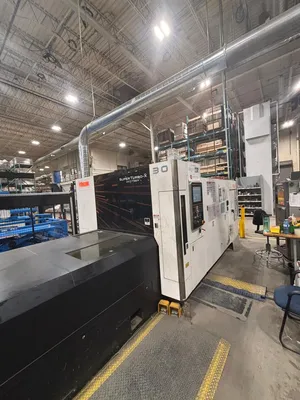

2018 MAZAK SUPER TURBO-X 3000 KW FIBER CNC LASER CUTTING MACHINE

Description

2018 MAZAK SUPER TURBO-X 3000 KW FIBER CNC LASER CUTTING MACHINE

Manufacturer: MAZAK

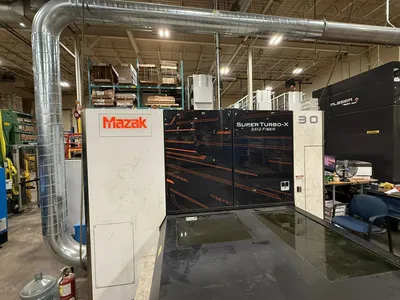

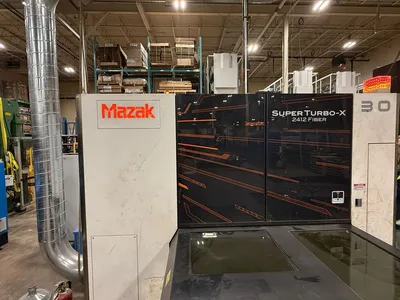

Model: SUPER TURBO-X 2412 FIBER
Mfg Date: 2018
Made in Japan

HOURS: 26671 hrs
POWER: 460v, 50/60hz, 3ph

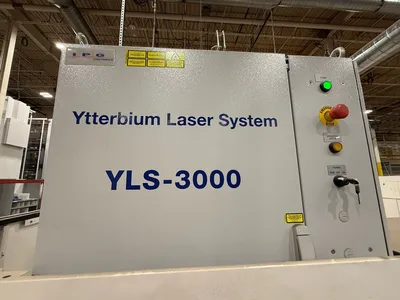

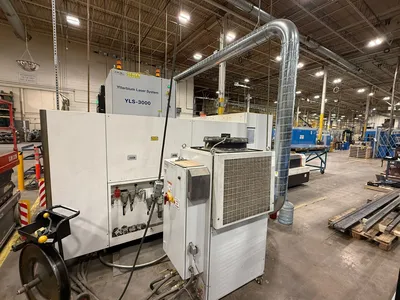

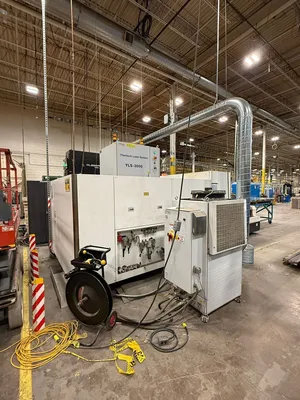

Laser Type & Power: YLS‑3000 fiber laser, 3 kW

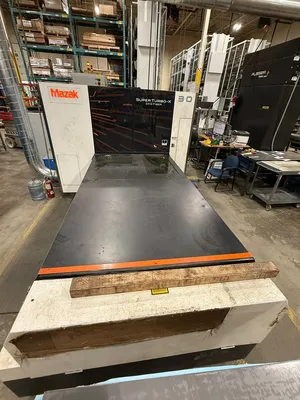

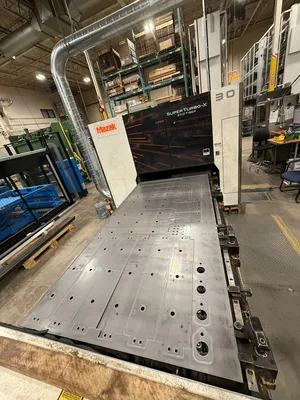

Worksheet Max Size: 1,250 mm × 2,500 mm
Axis Travel : X: 2,519.9 mm; Y: 1,270 mm; Z: 169.93 mm
Axis Speed : X/Y: 50 m/min; Z: 25 m/min
Positioning Accuracy: 10.2 µm

Cutting Capacity with Assist Gas
Mild steel (O₂): up to 20 mm (0.787")
Mild steel (N₂): up to 6 mm (0.236")
Stainless (N₂): up to 12 mm (0.472")
Aluminum (N₂): up to 12 mm (0.472")
Galvanized: up to 4 mm (0.157")
Brass: up to 6 mm (0.236")
Copper: up to 6 mm (0.236")

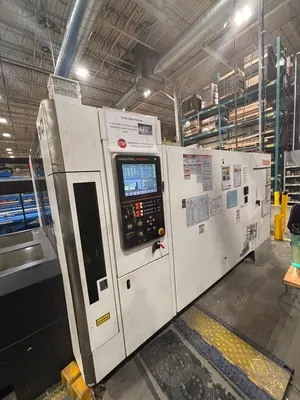

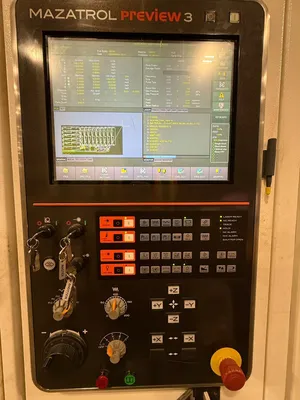

Controls: Mazatrol Preview 3 (15″ touchscreen)

Automation Features: Auto focus, beam control, auto nozzle, detection tools
Advantages (Fiber Laser): Lower power use, no laser gas, reflective material cutting, reduced maintenance

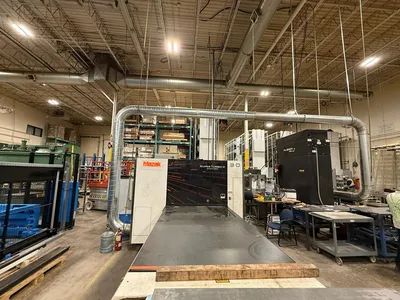

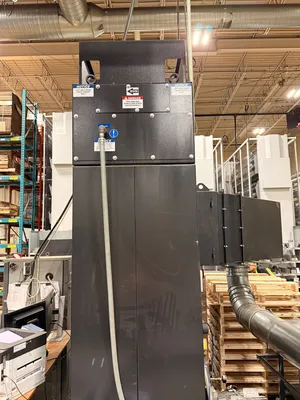

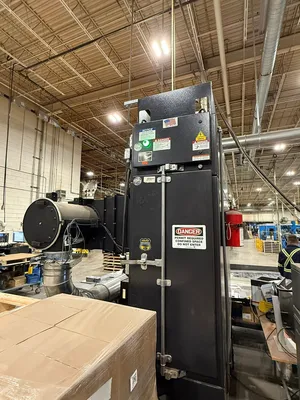

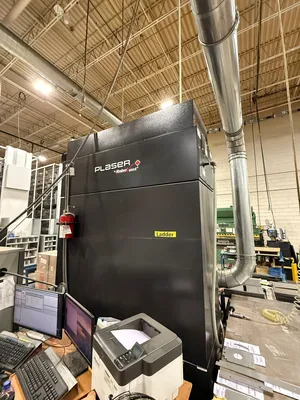

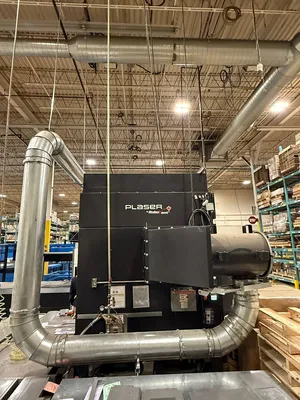

**Includes Dust Collector**

MACHINE WEIGHT: 10,350 KG
MACHINE DIMENSIONS: 263'' X 102'' X 105''
