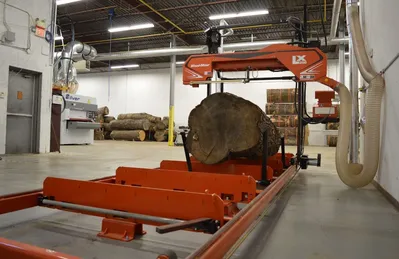

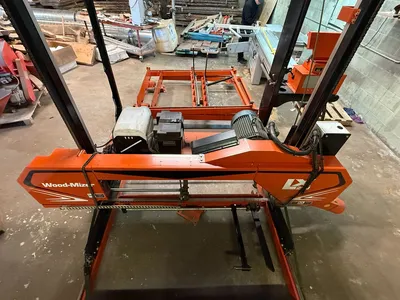

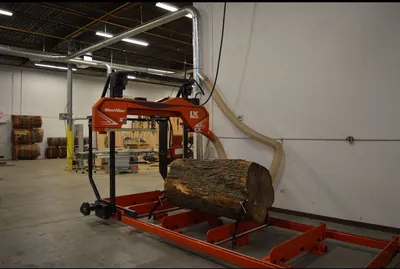

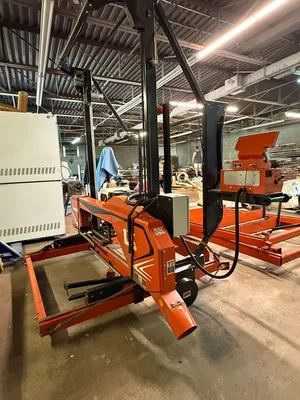

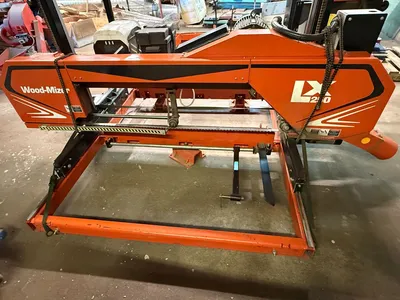

WOODMIZER LX250E15 SAWMILL

Description

WOODMIZER LX250E15 SAWMILL

Manufacturer: Woodmizer
Model: LX250E15

POWER: 230/460v 60hz, 3ph

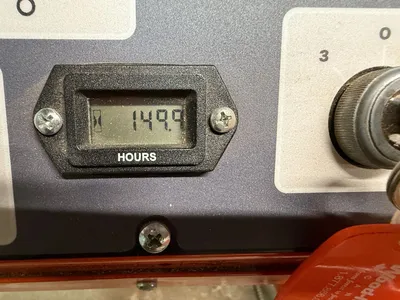

HOURS: 150 hrs

Fuel: Gas
Idle Speed: 1500 Rpm
High Throttle Speed: 3600 Rpm
Horsepower Rating: 38hp
Maximum log diameter: 140 cm (≈55.1 in)
Maximum width of cut (throat): 138 cm (≈54.3 in)
Maximum cant width: 125 cm (≈49.2 in)
Maximum depth of cut: 27 cm (≈10.6 in)
Blade length: 5,460 mm (≈215 in)
Blade width: 32 mm or 35 mm (≈1.26–1.38 in)
Blade wheel diameter: 473 mm (≈18.6 in)

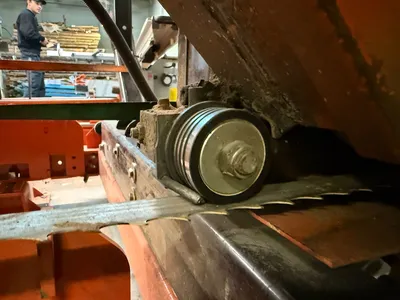

Blade drive type: Belted drive wheel

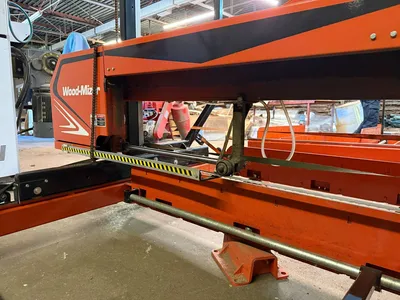

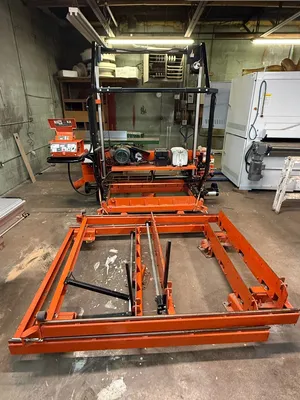

Bed / Frame: Twin-rail LX frame, modular bed sections (1.85 m each ≈72.8 in)

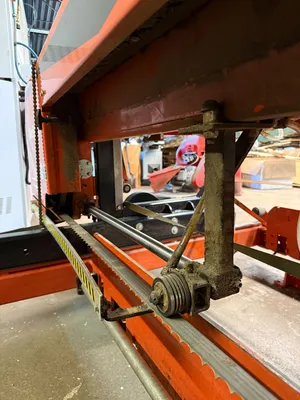

Head movement / feed: Electric up/down (chain), forward/reverse via two 0.75 kW motors

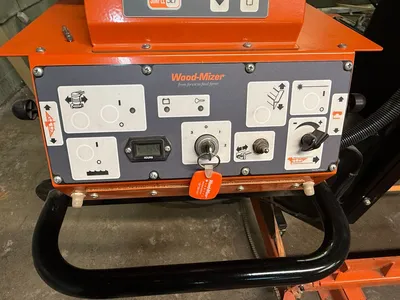

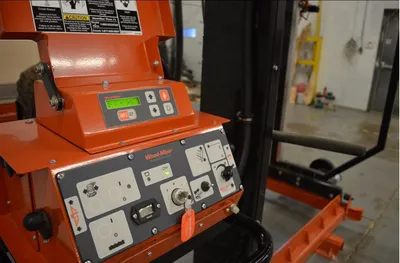

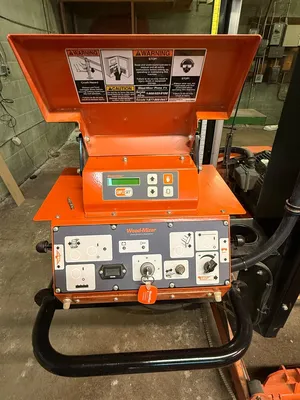

Setworks / Control system: SW10 setworks with board thickness presets

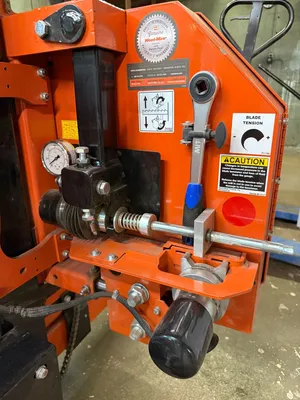

Blade guide / Tensioning: Electric guide arm, hydraulic tensioning handle with gauge
Dust / sawdust extraction port: Ø 150 mm (≈5.9 in)
Log handling / clamping: 3 manual side supports, 2 manual log clamps, cross bed supports

Weight: 3000 lbs
Machine Dimensions: 112'' x 60'' x 105'' in
