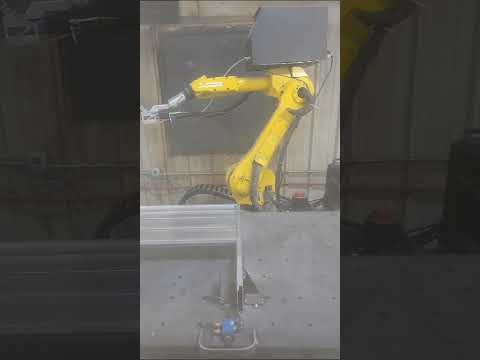

2006 FANUC ROBOT WITH 2023 IPG LIGHTWELD 1500XR LASER WELDER

Description

2006 FANUC ROBOT WITH 2023 IPG LIGHTWELD 1500XR LASER WELDER

Manufacturer: Fanuc, IPG
Model: ARC Mate 120iB, Lightweld 1500XR
Mfg Date: (welder) 2023, (robot) 2006

POWER: (Welder) 240v, 50/60hz, 1ph. (Robot) 230v, 50/60hz, 3ph

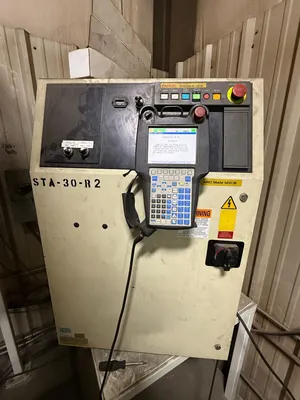

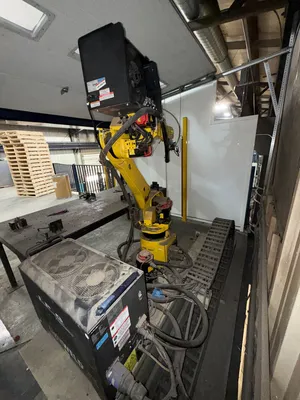

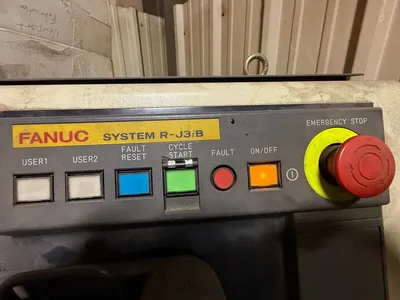

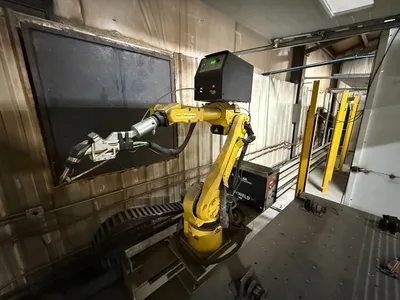

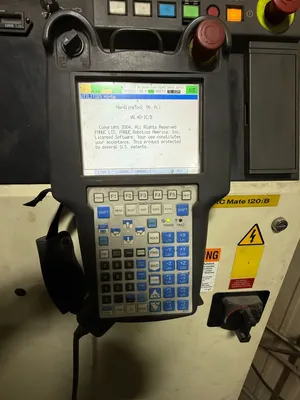

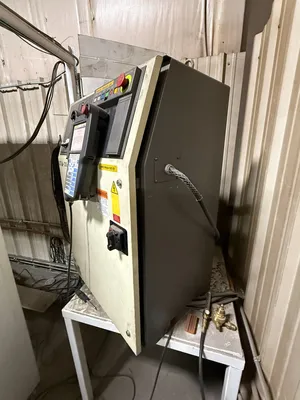

ROBOT

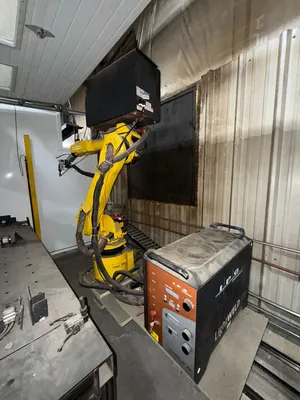

Model: ARC Mate 120iB
Type: 6-axis articulated welding robot
Year: 2006
Payload capacity: 20 kg (44 lb)
Maximum horizontal reach: 1,667 mm (65.6 in)
Repeatability: ± 0.08 mm
Structure: articulated arm

Motion Range (Joint Limits)
J1: ± 340°
J2: ± 250°
J3: ± 460°
J4: ± 400°
J5: ± 280°
J6: ± 900°

Maximum Motion Speed
J1: 165 °/s
J2: 165 °/s
J3: 175 °/s
J4: 350 °/s
J5: 340 °/s
J6: 520 °/s

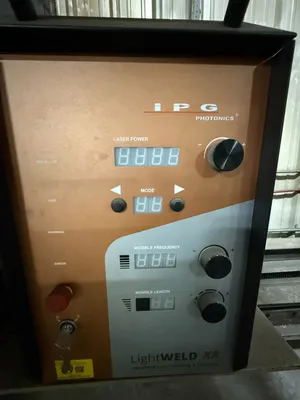

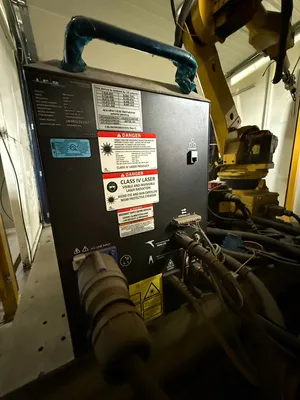

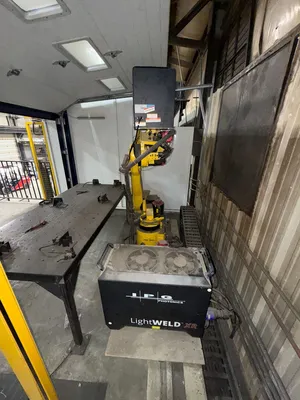

WELDER

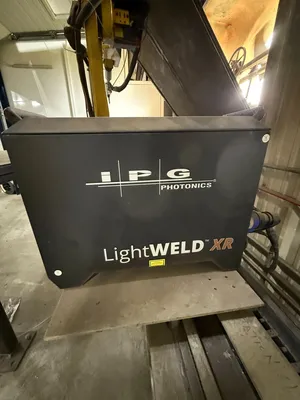

Model: LightWELD 1500 XR
Year: 2023
Cable length / umbilical: 10 m (≈ 33 ft)
Laser (average / continuous) power: up to 1500 W
Peak / pulsed cleaning power: up to 2500 W
Laser wavelength: ~ 1070 nm
Spot / beam diameter: ~ 150 µm (on-target)
Cooling: air-cooled

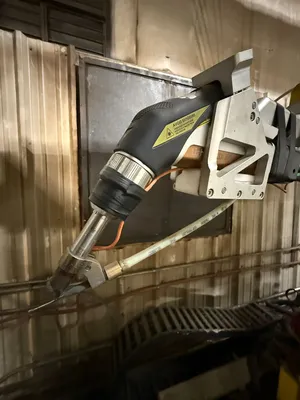

Wobble (beam oscillation) function:
 • Wobble length (amplitude): up to ~ 5 mm
 • Wobble frequency: up to ~ 300 Hz
Cleaning / scan width (pre- & post-weld cleaning mode): up to ~ 15 mm
Material thickness / welding capabilities (approx, for XR model):
 • Stainless, mild, galvanized steel: up to ~ 6.35 mm (0.250”)
 • Aluminum (3 & 5 series): up to ~ 6.35 mm (0.250”)
 • Aluminum 6 series: up to ~ 3.0 mm (~0.120”)
 • Titanium / Nickel alloys: up to ~ 5.0 mm (0.200”)
 • Copper: up to ~ 2.0 mm (0.080”)

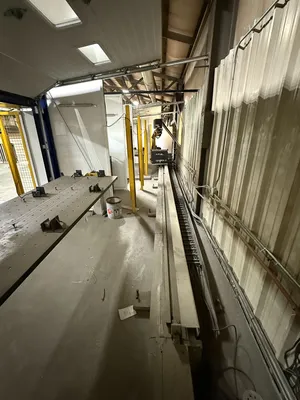

Welder Track Length: 26' ft

*INCLUDES*

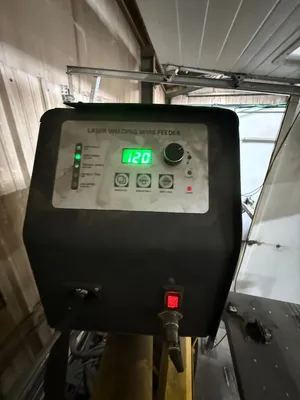

WIRE FEEDER

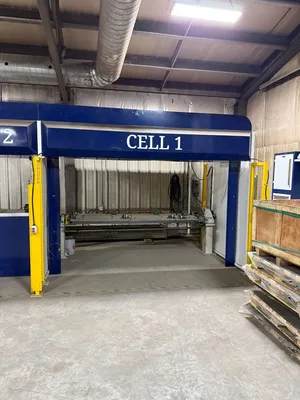

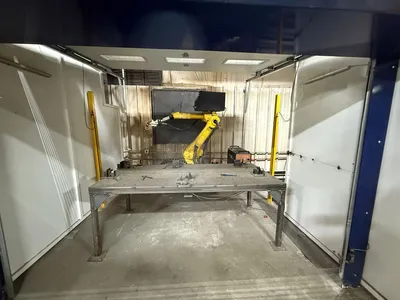

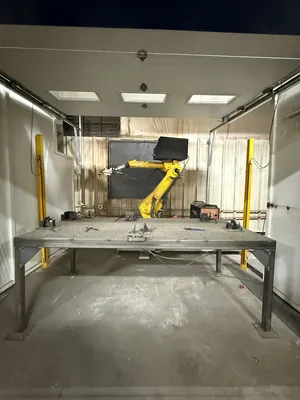

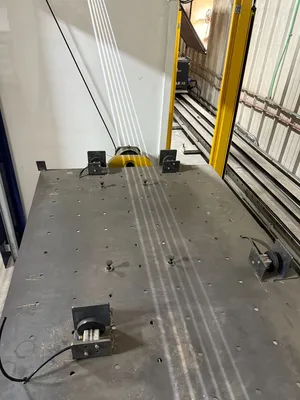

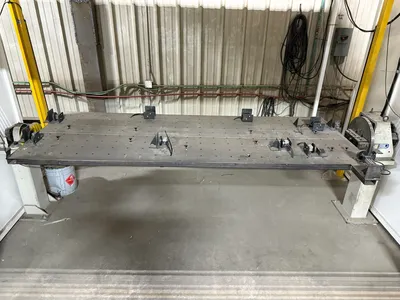

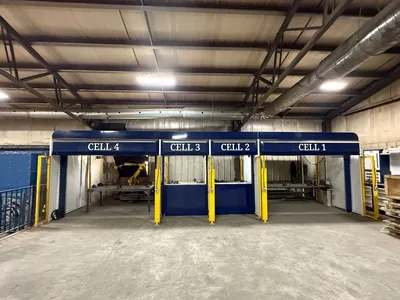

CELL 1 ROTATING TABLE (40'' X 100'')

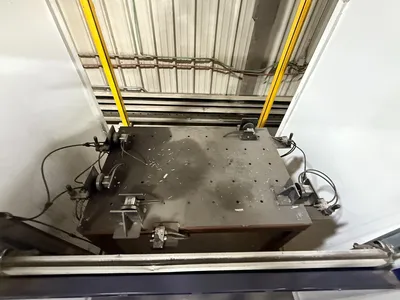

CELL 2 TABLE (26'' X 40'')

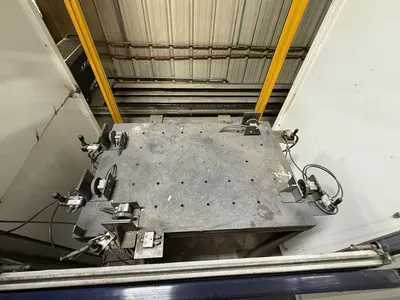

CELL 3 TABLE (26'' X 40'')
CELL 4 TABLE (39'' X 86'')

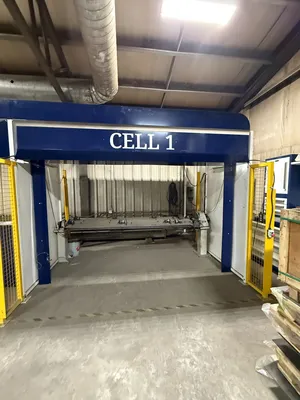

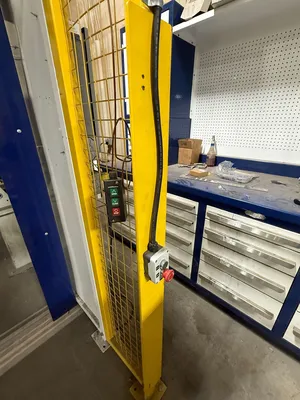

SAFETY LIGHT CURTAINS

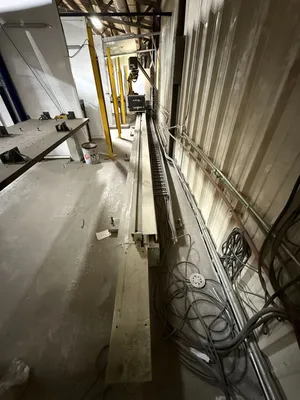

26' ft TRACK

WEIGHT: 5000 lbs
DIMENSIONS: 26''(D) x 40''(H)
