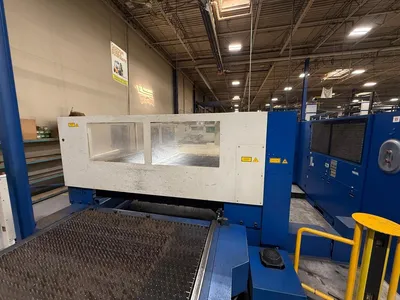

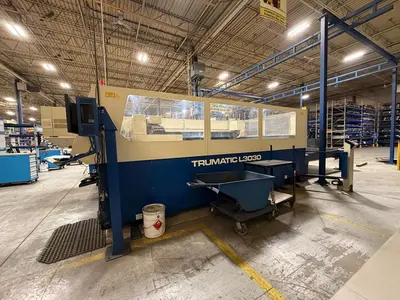

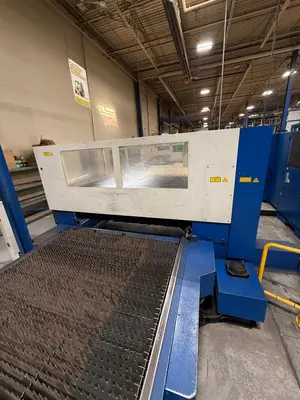

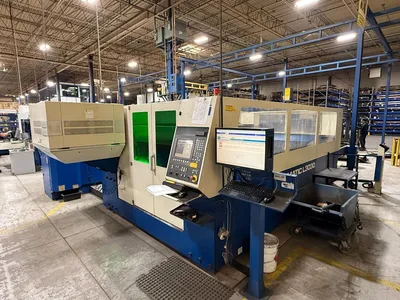

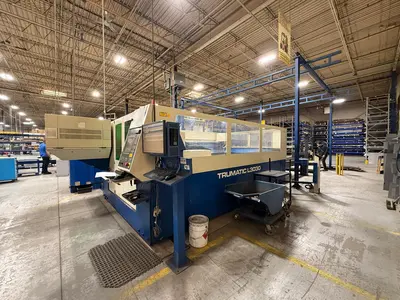

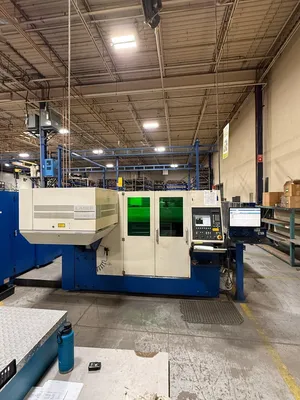

2006 TRUMPF TRUMATIC L3030 4000W CNC LASER CUTTING SYSTEM
Have one to sell?
ConditionUsed
1 available
2006 TRUMPF TRUMATIC L3030 4000W CNC LASER CUTTING SYSTEM
Manufacturer: Trumpf
Model: Trumatic L3030
Mfg Date: 2006
POWER: 460v, 60hz, 3ph
Machine type: CNC CO₂ Laser Cutting System
Laser power: 4000 watts (4 kW)
WORKING RANGE
X-axis travel: 3000 mm (118 in)
Y-axis travel: 1500 mm (59 in)
Z-axis travel: 115 mm (4.5 in)
Maximum workpiece weight: 710 kg (1565 lb)
CUTTING CAPACITY
Mild steel: up to 20 mm (0.79 in)
Stainless steel: up to 15 mm (0.59 in)
Aluminum: up to 10 mm (0.39 in)

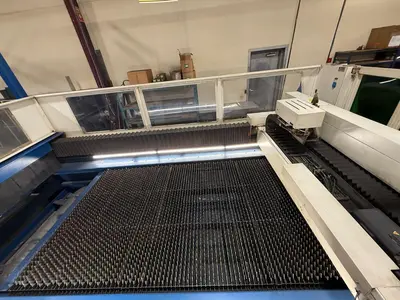

Cutting area (table size): 60 in × 120 in (1500 mm × 3000 mm)
ACCURACY / SPEED
Positioning accuracy: ± 0.10 mm
Repeatability: ± 0.03 mm
Axis speed (individual): 60 m/min (197 ft/min)
Simultaneous X + Y speed: 85 m/min (279 ft/min)
LASER SYSTEM

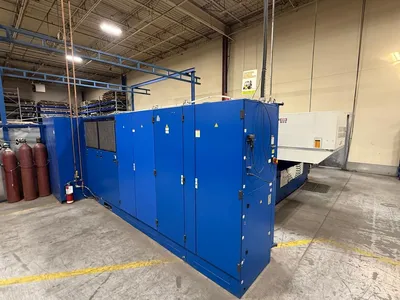

Laser type: TRUMPF TLF 4000 CO₂ resonator

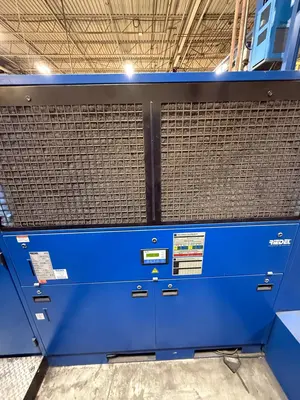

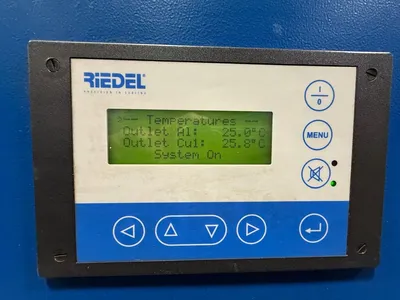

Cooling: external Riedel L16/29-TR3 chiller (water-cooled)
Wavelength: 10.6 µm
Gas type: CO₂ with helium and nitrogen mix
Cutting head options: 5 inch and 7.5 inch focal lenses
CONTROL SYSTEM

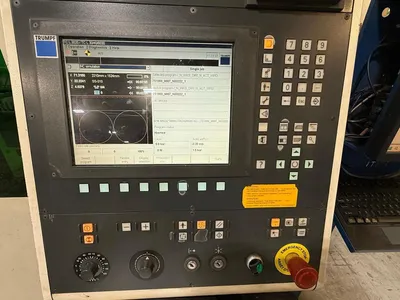

CNC control: TRUMPF CNC based on Siemens Sinumerik 840D
Interface: color display with hand wheel and numeric keyboard
CNC programming increment: 0.01 mm

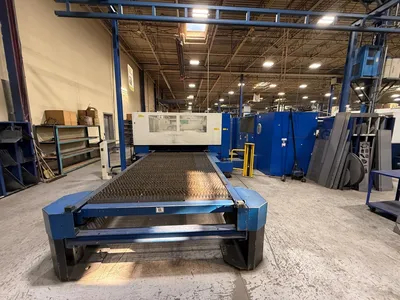

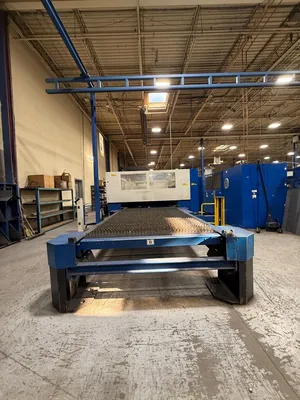

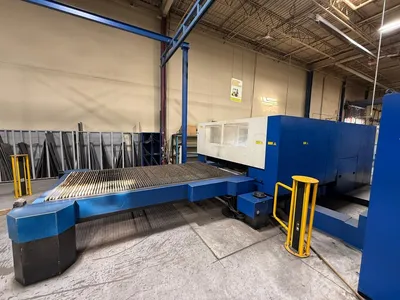

Table exchange: automatic dual-pallet shuttle system
Drive system: digital AC servo motors
Cooling unit: Riedel L16/29-TR3 chiller with R134a refrigerant
Fume extraction: integrated dust and smoke filtration system
Machine weight: 25,350 lbs
Dimensions (Floorspace): 32 ft × 30 ft × 6.5 ft
