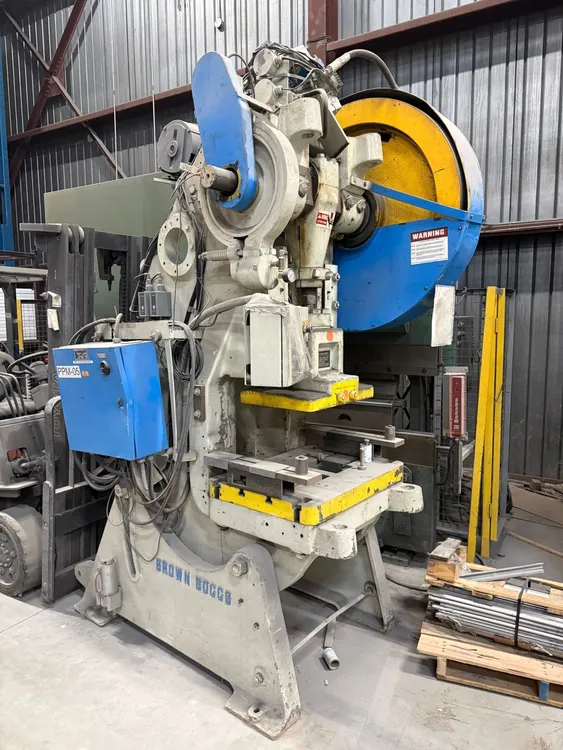

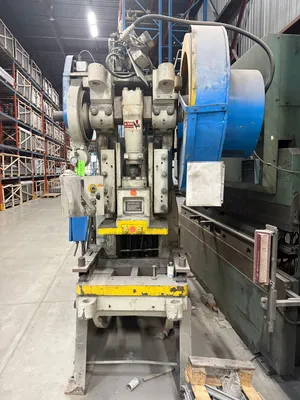

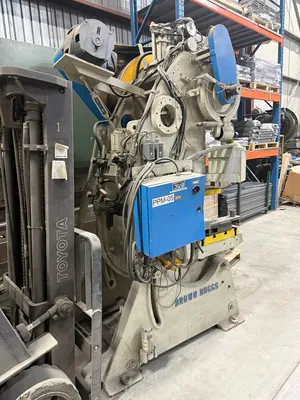

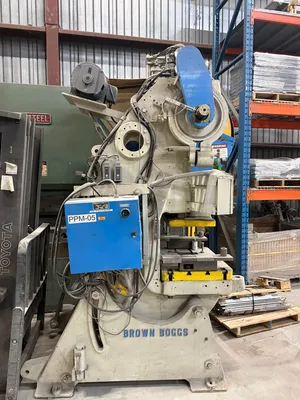

BROWN BOGGS 17½ 60 TON MECHANICAL PUNCH PRESS
Have one to sell?
ConditionUsed
1 available
BROWN BOGGS 17½ 60 TON MECHANICAL PUNCH PRESS
Manufacturer: Brown Boggs Foundry & Machine Co. Ltd.
Model: 17½ LJA
POWER: 575v, 60hz, 3ph
Total HP: 5 HP
Rated Tonnage: 60 tons
Stroke Length: 5 in
Shut Height: 9½ – 12½ in
Shut Height Adjustment: 3 in
Bed Area (L × R × F × B): 32 in × 22½ in
Ram Area (L × R × F × B): 21 in × 16 in
Strokes per Minute: 86 SPM
Air Pressures (Operating):
Clutch Air Pressure: 80 PSI (100 PSI max / 60 PSI min)
Brake Air Pressure: 80 PSI (100 PSI max / 60 PSI min)
Flywheel Brake Air Pressure: 60 PSI max / 40 PSI min
Counterbalance Air Pressure: 100 PSI max / 40 PSI min
Air Pressure Switch Settings:
Air Supply Opens at 60 PSI
Counterbalance Opens at 40 PSI
Flywheel Brake Closes at 10 PSI
Weight: 4,800 kg
BROWN BOGGS 17½ 60 TON MECHANICAL PUNCH PRESS
Manufacturer: Brown Boggs Foundry & Machine Co. Ltd.
Model: 17½ LJA
POWER: 575v, 60hz, 3ph
Total HP: 5 HP
Rated Tonnage: 60 tons
Stroke Length: 5 in
Shut Height: 9½ – 12½ in
Shut Height Adjustment: 3 in
Bed Area (L × R × F × B): 32 in × 22½ in
Ram Area (L × R × F × B): 21 in × 16 in
Strokes per Minute: 86 SPM
Air Pressures (Operating):
Clutch Air Pressure: 80 PSI (100 PSI max / 60 PSI min)
Brake Air Pressure: 80 PSI (100 PSI max / 60 PSI min)
Flywheel Brake Air Pressure: 60 PSI max / 40 PSI min
Counterbalance Air Pressure: 100 PSI max / 40 PSI min
Air Pressure Switch Settings:
Air Supply Opens at 60 PSI
Counterbalance Opens at 40 PSI
Flywheel Brake Closes at 10 PSI
Weight: 4,800 kg
