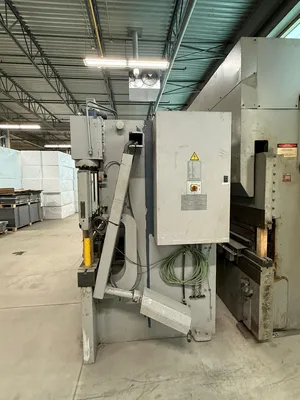

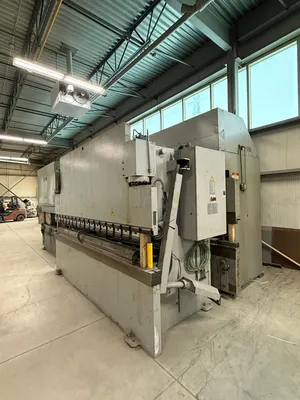

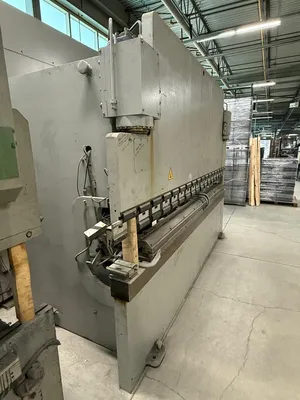

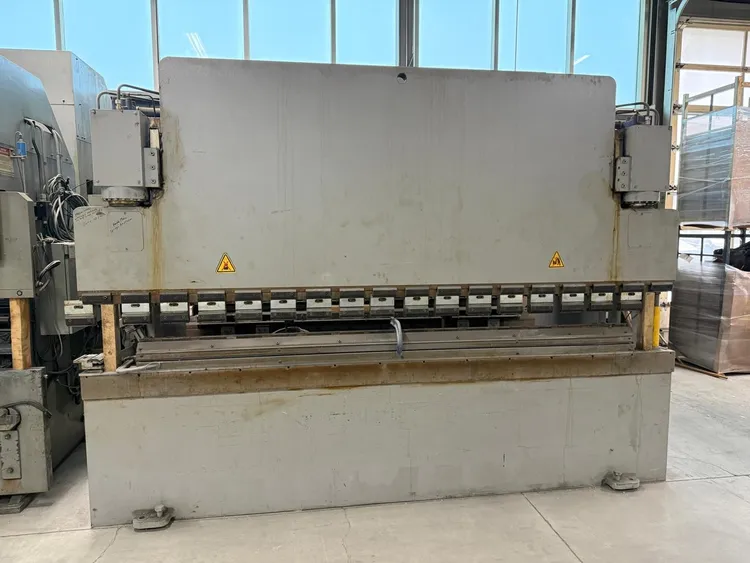

2007 DURMA E37160 160 TON X 12' PRESS BRAKE
Have one to sell?
ConditionUsed
1 available
2007 DURMA E37160 160 TON X 12' PRESS BRAKE
Manufacturer: Durmazlar
Model: 7534072830-E
Mfg Date: 2007

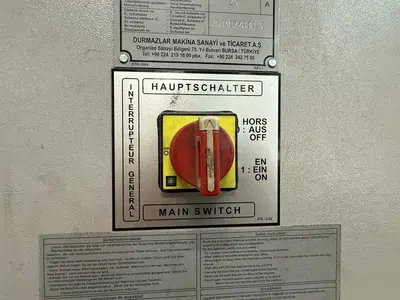

POWER: 575v, 60hz, 3ph
Capacity: 160 Ton
Bending Length: 3700 mm
Table / Bed Height: 859 mm
Hydraulic & Mechanical Performance
Max Pressure: 285 kg/cm² (4130 psi)
Stroke (Ram Travel): 200 mm
Distance Between Housings: 3090 mm
Open Height (max opening): 429 mm
Throat Depth: 351 mm

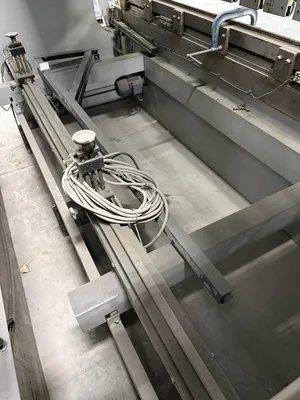

Back-gauge Travel / Range: 610 mm
Falling Time After Stopping: 102 ms
Traversing Distance After Stop: 8 mm
Safety Distance: 263.2 mm

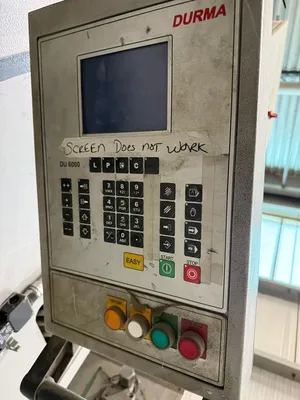

*Screen on control panel not working*
Weight: 33,000 lbs
Machine Dimensions: 83'' x 192'' x 106''in
2007 DURMA E37160 160 TON X 12' PRESS BRAKE
Manufacturer: Durmazlar
Model: 7534072830-E
Mfg Date: 2007
POWER: 575v, 60hz, 3ph
Capacity: 160 Ton
Bending Length: 3700 mm
Table / Bed Height: 859 mm
Hydraulic & Mechanical Performance
Max Pressure: 285 kg/cm² (4130 psi)
Stroke (Ram Travel): 200 mm
Distance Between Housings: 3090 mm
Open Height (max opening): 429 mm
Throat Depth: 351 mm
Back-gauge Travel / Range: 610 mm
Falling Time After Stopping: 102 ms
Traversing Distance After Stop: 8 mm
Safety Distance: 263.2 mm
Weight: 33,000 lbs
Machine Dimensions: 83'' x 192'' x 106''in
