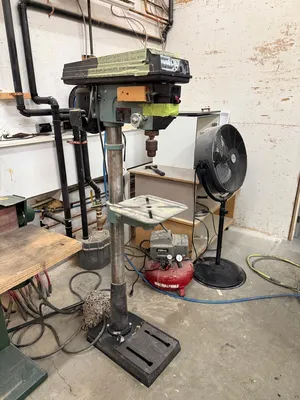

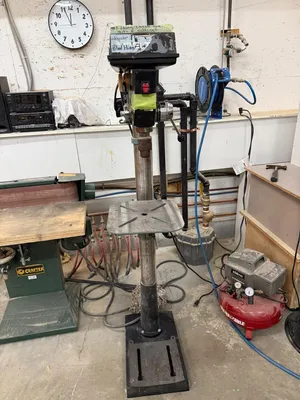

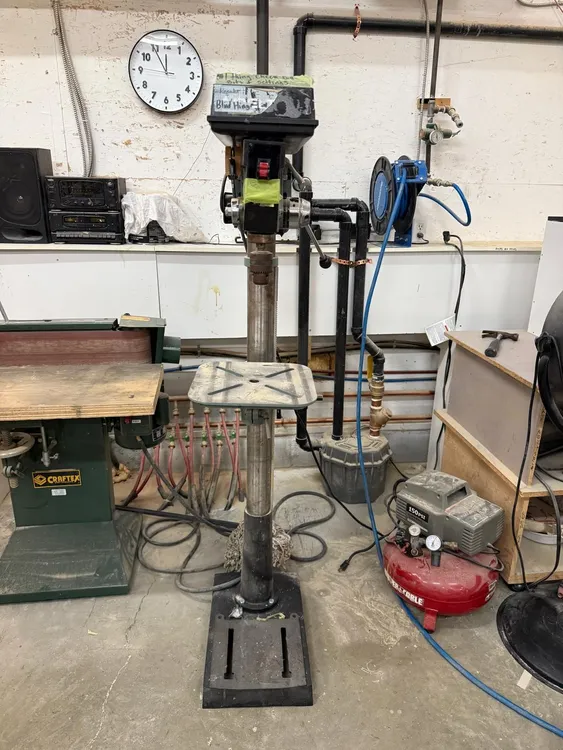

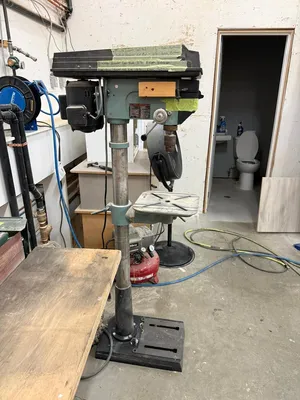

DELTA 17-901 DRILL PRESS
Have one to sell?
ConditionUsed
1 available
Manufacturer: Delta
Model: 17-901
POWER: 115v, 60hz, 1ph
CAPACITY
Swing: 17"
Maximum Drilling Diameter (Steel): approx. 3/4"
Spindle Travel (Quill Stroke): 6"
Distance Spindle to Column: approx. 8-1/2"
Maximum Distance Spindle to Table: approx. 31"
Maximum Distance Spindle to Base: approx. 47"
SPEEDS
Number of Speeds: 16
Speed Range: approx. 170 – 3,000 RPM
Speed Change: Step pulley system

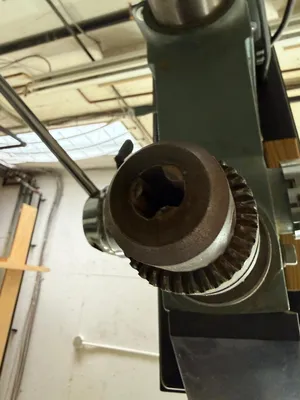

SPINDLE & CHUCK
Chuck Capacity: 1/8" – 5/8"
Chuck Type: Keyed

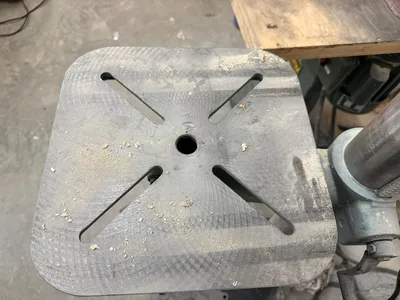

TABLE
Table Size: approx. 12" × 12"
Table Tilt: 45° left / 45° right
Table Rotation: 360° around column
Table Height Adjustment: Rack and pinion

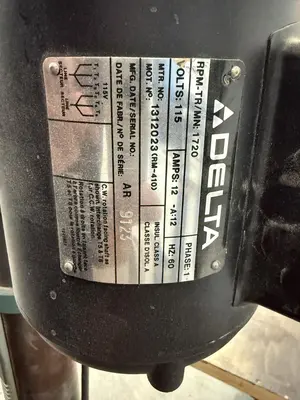

MOTOR & ELECTRICAL
Motor Power: 3/4 HP
Voltage: 115 / 230V
Phase: Single Phase
Frequency: 60 Hz
CONSTRUCTION
Head, Table, and Base: Cast Iron
Feed Handles: 3-Spoke
Weight: 215 lbs
Dimensions: 30'' x 15'' x 65''
Manufacturer: Delta
Model: 17-901
POWER: 115v, 60hz, 1ph
CAPACITY
Swing: 17"
Maximum Drilling Diameter (Steel): approx. 3/4"
Spindle Travel (Quill Stroke): 6"
Distance Spindle to Column: approx. 8-1/2"
Maximum Distance Spindle to Table: approx. 31"
Maximum Distance Spindle to Base: approx. 47"
SPEEDS
Number of Speeds: 16
Speed Range: approx. 170 – 3,000 RPM
Speed Change: Step pulley system
SPINDLE & CHUCK
Chuck Capacity: 1/8" – 5/8"
Chuck Type: Keyed
TABLE
Table Size: approx. 12" × 12"
Table Tilt: 45° left / 45° right
Table Rotation: 360° around column
Table Height Adjustment: Rack and pinion
MOTOR & ELECTRICAL
Motor Power: 3/4 HP
Voltage: 115 / 230V
Phase: Single Phase
Frequency: 60 Hz
CONSTRUCTION
Head, Table, and Base: Cast Iron
Feed Handles: 3-Spoke
Weight: 215 lbs
Dimensions: 30'' x 15'' x 65''
