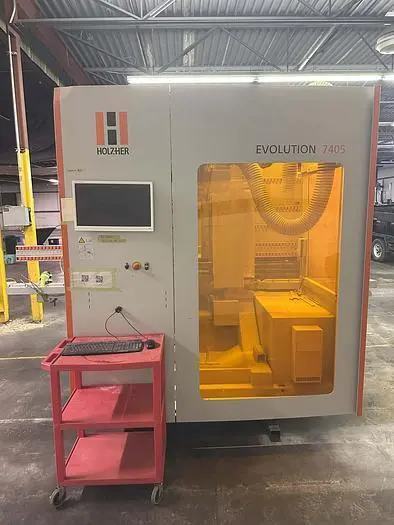

2019 Holzher Evolution 7405 Vertical CNC Machining Center in Ottawa, Canada

Description

2019 Holzher Evolution 7405 Vertical CNC Machining Center,
SERIAL NO. 803,
400V, 50/60Hz, 3PH
Control Voltage 230AC, 24DC
Full Load Current 25A
Design Current Largest Consumer 32A
Max Input Fuse Rating 35A
Working dimension X 3.200 mm
Working dimension Y 920 mm
Working dimension Z 70 mm
Number of milling spindles 1
Main motor power 8 kW
Rotation speed max 24.000 rpm
Tool clamping system HSK-F63
Tool changer positions 6
Vertical drilling spindles 9
Horizontal drilling spindles in X 4
Horizontal drilling spindles in Y 2
Groove saw in X-direction
Vertical working surface yes
Machine table Feed-through technology

Special workpiece clamping system
Vacuum clamping system Safety device enclosed cabin
Software DIREKT CNC NC-HOPS 7.5, HOLZ-HER CABINET CONTROL BASE

(MACHINE DIM.) 12.5 X 6 X 8.8 FT.
