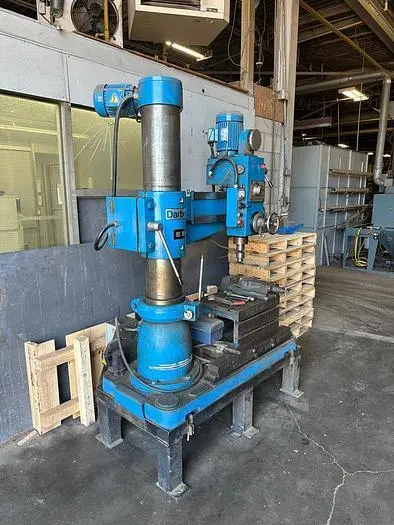

2004 DARBERT TF-900S RD-900 RADIAL DRILLING MACHINE in Toronto, Canada
Have one to sell?
ConditionUsed
1 available
2004 DARBERT TF-900S RD-900 RADIAL DRILLING MACHINE. 5.3HP, 600V, 4A, 60HZ, 3PH. WITH 2004 JIE SHENG 3 PHASE INDUCTION MOTOR (2HP, 1420/1720RPM, 600V, 2.2A, 4 POLES, 50/60HZ, 3PH, S/N: 22602)
WORKING CONDITION
Drilling capacity in steel: 38 mm
Spindle taper: MT4
Spindle travel (stroke): 200–210 mm
Spindle speeds: 6 steps, 88–1500 RPM
Column diameter: 210 mm
Headstock horizontal travel (arm travel): 545 mm
Maximum reach (column surface to spindle centre): 920 mm
Minimum reach (column surface to spindle centre): 290 mm
Maximum distance from base to spindle: 1,110 mm
Minimum distance from base to spindle: 282 mm
Table size (effective area): 550 × 405 × 315 mm
Drilling capacity in steel: 38 mm
Spindle taper: MT4
Spindle travel (stroke): 200–210 mm
Spindle speeds: 6 steps, 88–1500 RPM
Column diameter: 210 mm
Headstock horizontal travel (arm travel): 545 mm
Maximum reach (column surface to spindle centre): 920 mm
Minimum reach (column surface to spindle centre): 290 mm
Maximum distance from base to spindle: 1,110 mm
Minimum distance from base to spindle: 282 mm
Table size (effective area): 550 × 405 × 315 mm
