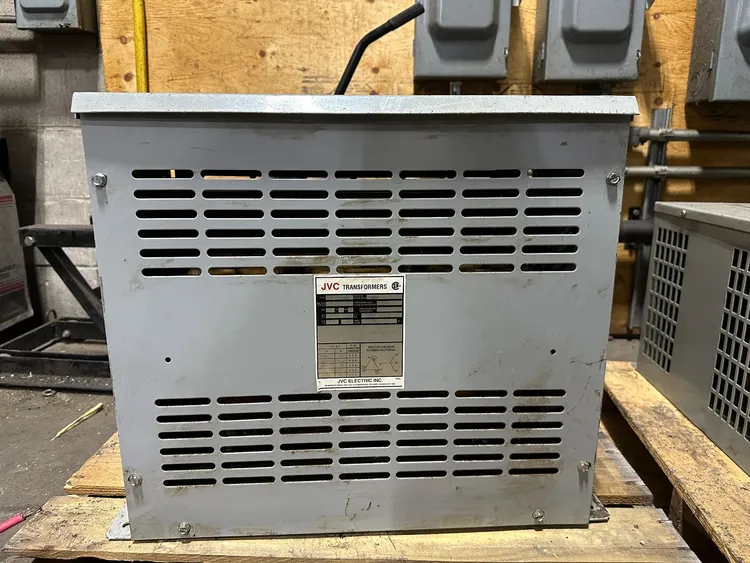

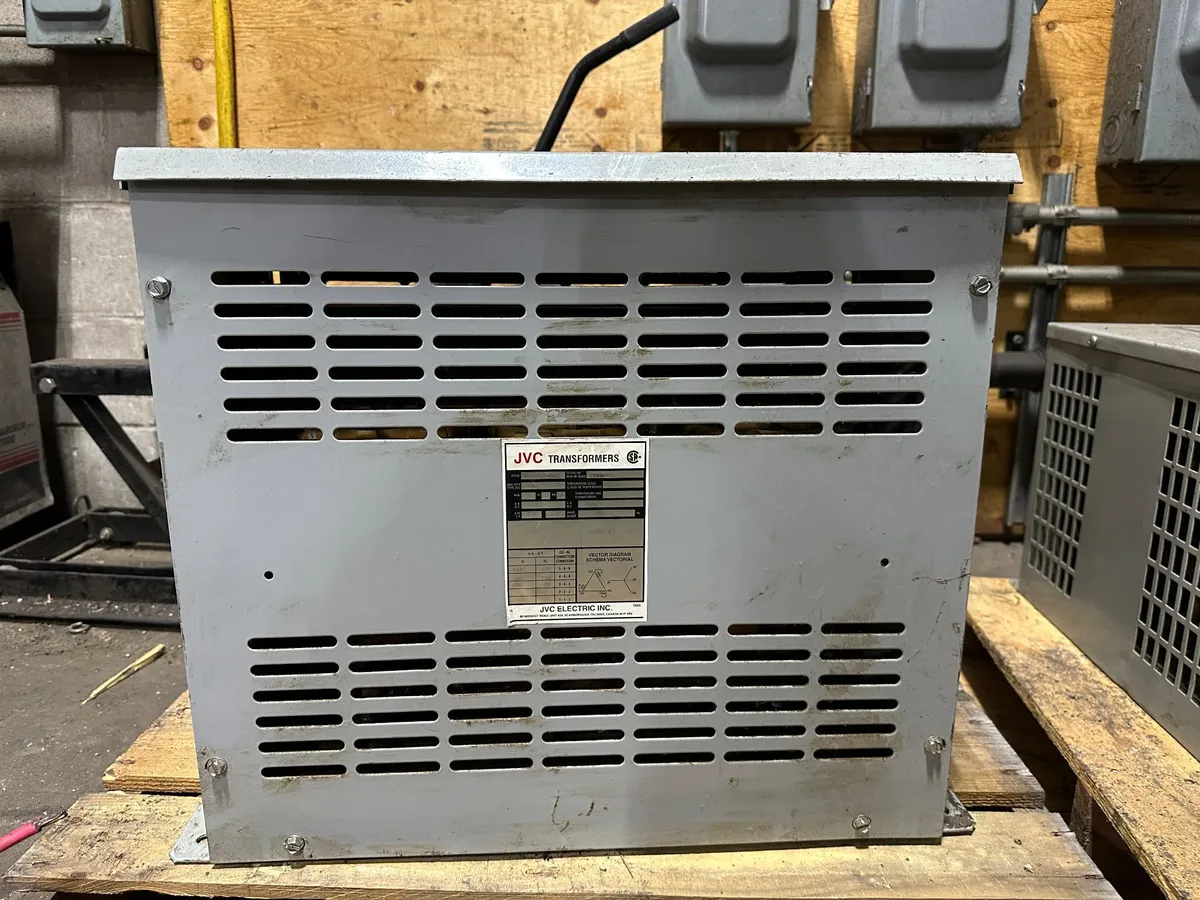

2003 JVC DH3-15B-56C THREE PHASE DRY TYPE TRANSFORMER 14 KVA (480V-230V)
Have one to sell?
ConditionUsed
1 available
2003 JVC DH3-15B-56C THREE PHASE DRY TYPE TRANSFORMER 14 KVA (480V-230V)

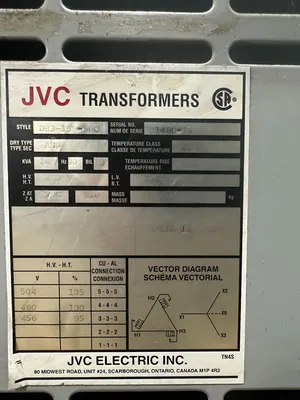

Manufacturer: JVC Electric Inc.
Model: DH3-15B-56C
Product Type: Three Phase Dry Type Transformer
Serial Number: 31480-1
Made in: Scarborough, Ontario, Canada
Specifications:
High Voltage (HV): 480 V
Tap Voltages:
504 V → 105%
480 V → 100%
456 V → 95%
Low Voltage (LV): 230 V
Power Rating: 15 KVA
Cooling: ANN (Air Natural, Natural convection)
Temperature Class: 220°C
Temperature Rise: 170°C
Impedance (Z): 5.0%
Frequency: 60 Hz
Phase: 3 Phase
CSA Certified: Yes
2003 JVC DH3-15B-56C THREE PHASE DRY TYPE TRANSFORMER 14 KVA (480V-230V)
Manufacturer: JVC Electric Inc.
Model: DH3-15B-56C
Product Type: Three Phase Dry Type Transformer
Serial Number: 31480-1
Made in: Scarborough, Ontario, Canada
Specifications:
High Voltage (HV): 480 V
Tap Voltages:
504 V → 105%
480 V → 100%
456 V → 95%
Low Voltage (LV): 230 V
Power Rating: 15 KVA
Cooling: ANN (Air Natural, Natural convection)
Temperature Class: 220°C
Temperature Rise: 170°C
Impedance (Z): 5.0%
Frequency: 60 Hz
Phase: 3 Phase
CSA Certified: Yes
