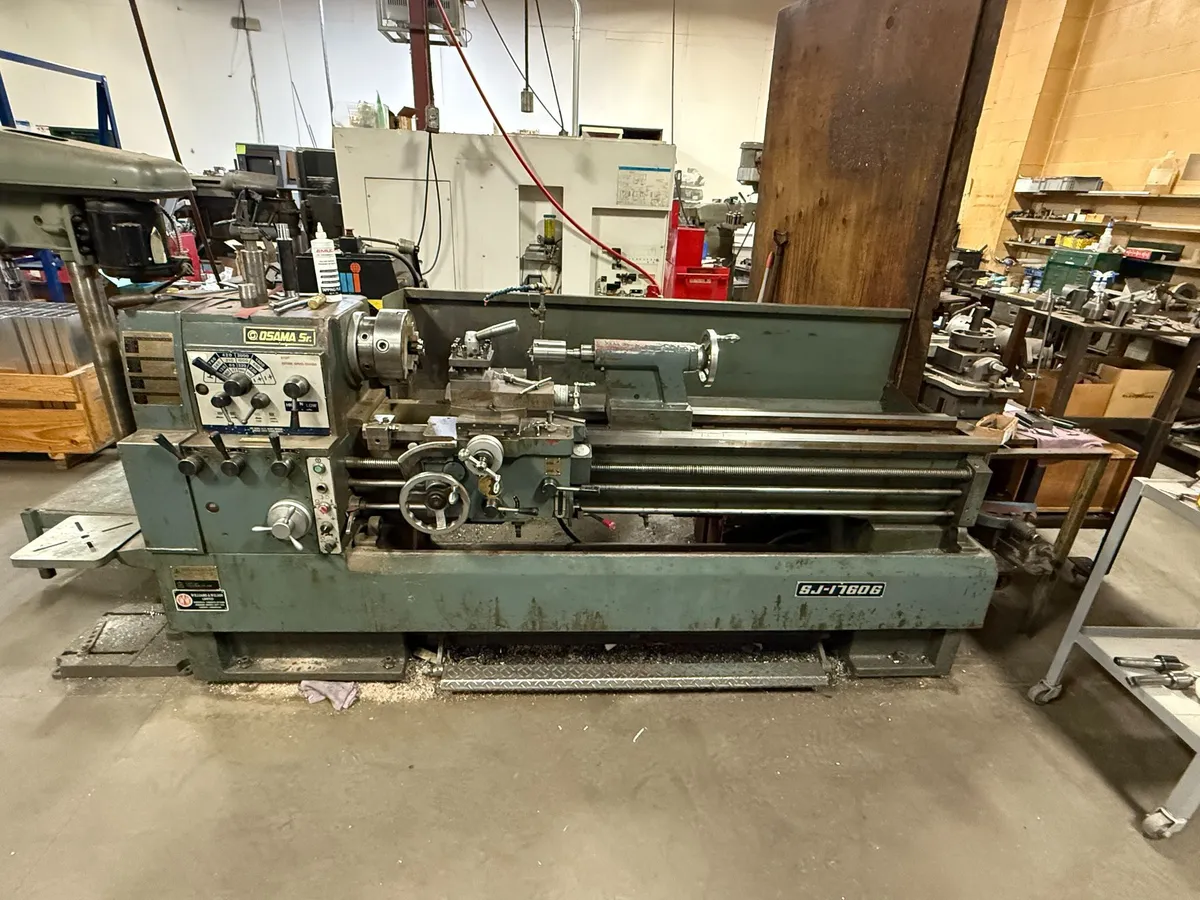

1984 Osama Sr SJ-1760G 17'' X 60'' Lathe
Have one to sell?
ConditionUsed
1 available
1984 Osama Sr SJ-1760G 17'' X 60'' Lathe
Manufacturer: Osama Sr
Model: SJ-1760
Serial No.: 840715
MFG Date: 1984
POWER: 600V 3PH 60HZ
Chuck: 8'' 3 Jaw Chuck
Swing over ways: 17''
Swing over cross slide: 9''
Swing in gap: 25-5/8''
Distance between centers: 60''
Spindle thru hole: 2-9/32″
Spindle speeds (12): 20-2000 RPM
Spindle nose: D1-6
Spindle taper: MT#4
Longitudinal feeds: 0.088-0.618
Cross feeds: 0.032-0.222
Tailstock quill travel: 4''
Inch threads: 4-56 TPI
Metric threads: P0.5-97
Spindle motor: 5 HP
WEIGHT: 5500 LBS
MACHINE DIMENSIONS: 108'' X 44'' X 51''
1984 Osama Sr SJ-1760G 17'' X 60'' Lathe
Manufacturer: Osama Sr
Model: SJ-1760
Serial No.: 840715
MFG Date: 1984
POWER: 600V 3PH 60HZ
Chuck: 8'' 3 Jaw Chuck
Swing over ways: 17''
Swing over cross slide: 9''
Swing in gap: 25-5/8''
Distance between centers: 60''
Spindle thru hole: 2-9/32″
Spindle speeds (12): 20-2000 RPM
Spindle nose: D1-6
Spindle taper: MT#4
Longitudinal feeds: 0.088-0.618
Cross feeds: 0.032-0.222
Tailstock quill travel: 4''
Inch threads: 4-56 TPI
Metric threads: P0.5-97
Spindle motor: 5 HP
WEIGHT: 5500 LBS
MACHINE DIMENSIONS: 108'' X 44'' X 51''
