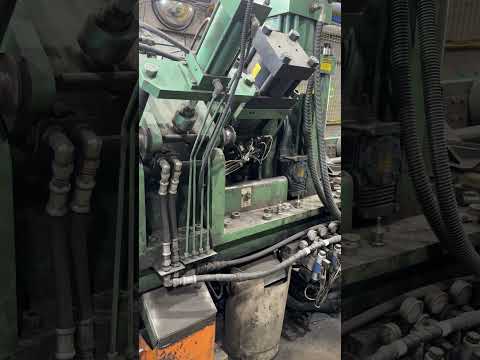

2005 PEDDINGHAUS ANGLEMASTER 643 SHEAR & PUNCH MACHINE
Have one to sell?
ConditionUsed
1 available
2005 PEDDINGHAUS ANGLEMASTER 643 SHEAR & PUNCH MACHINE
MANUFACTURER: PEDDINGHAUS
MODEL: ANGLEMASTER 643-0
SERIAL NO.: 47742
MFG DATE: 2005
POWER: 460V 3PH 50HZ
PUNCH TONNAGE CAP: 230 TONS
SHEAR TONNAGE CAPACITY: 75 TONS
DOUBLE CUT SHEAR TONNAGE: 100 TONS
ANGLE: 1 1/2'' X 1 1/2'' X 1/8''-6'' X 6'' X 5/8''
FLATS: 2'' X 1/4''-6'' X 5/8''
THROAT: 5 1/4″
STROKE: 1 3/4″
MAX. HOLE SIZE: 1 1/4″
MATERIAL FEED RATE: 150FT./MIN
MAX MATERIAL THICKNESS: 5/8''
# OF PUNCHES: 272
CONTROL: Siemens Control (Sinumerik)
*comes with external monitor for control*
INFEED CONVEYOR: 40FT(L) X 6FT.(W)
OUTFEED LENGTH: ~12FT.(L) X 8FT.(W)
MACHINE WEIGHT: 20000 LBS
MACHINE DIMENSIONS (FOOTPRINT): 75'(L) X 20'(W) FT.
2005 PEDDINGHAUS ANGLEMASTER 643 SHEAR & PUNCH MACHINE
MANUFACTURER: PEDDINGHAUS
MODEL: ANGLEMASTER 643-0
SERIAL NO.: 47742
MFG DATE: 2005
POWER: 460V 3PH 50HZ
PUNCH TONNAGE CAP: 230 TONS
SHEAR TONNAGE CAPACITY: 75 TONS
DOUBLE CUT SHEAR TONNAGE: 100 TONS
ANGLE: 1 1/2'' X 1 1/2'' X 1/8''-6'' X 6'' X 5/8''
FLATS: 2'' X 1/4''-6'' X 5/8''
THROAT: 5 1/4″
STROKE: 1 3/4″
MAX. HOLE SIZE: 1 1/4″
MATERIAL FEED RATE: 150FT./MIN
MAX MATERIAL THICKNESS: 5/8''
CONTROL: Siemens Control (Sinumerik)
*comes with external monitor for control*
INFEED CONVEYOR: 40FT(L) X 6FT.(W)
OUTFEED LENGTH: ~12FT.(L) X 8FT.(W)
MACHINE WEIGHT: 20000 LBS
MACHINE DIMENSIONS (FOOTPRINT): 75'(L) X 20'(W) FT
