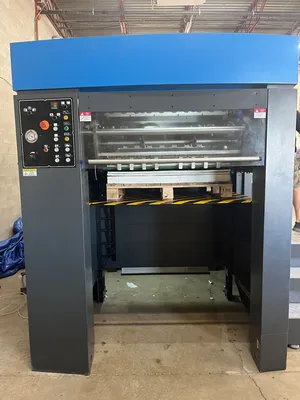

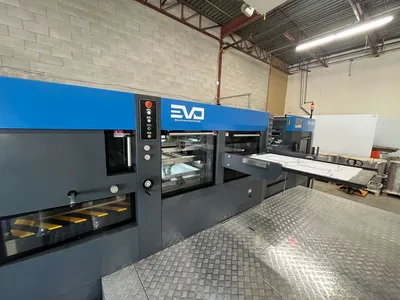

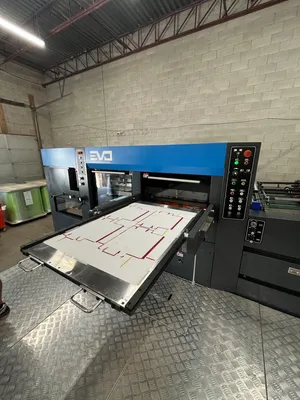

2021 SHM SH-1060SE AUTOMATIC DIE CUTTING AND STRIPPING MACHINE
Have one to sell?
ConditionUsed
1 available

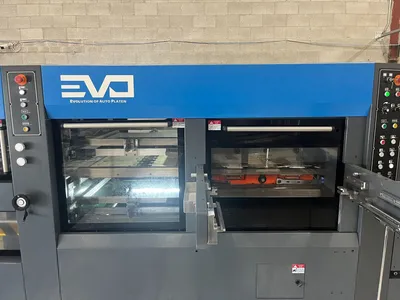

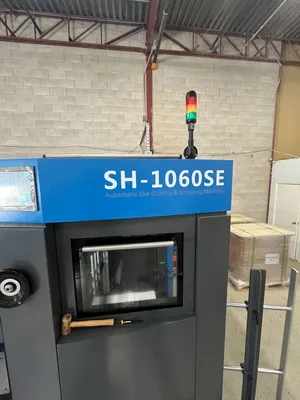

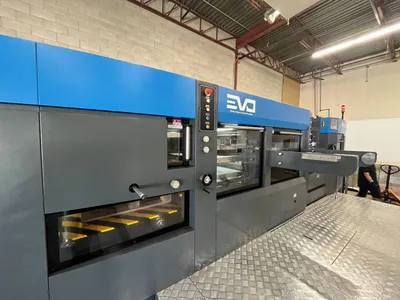

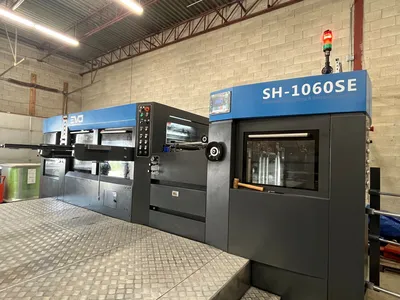

2021 SHM SH-1060SE AUTOMATIC DIE CUTTING AND STRIPPING MACHINE

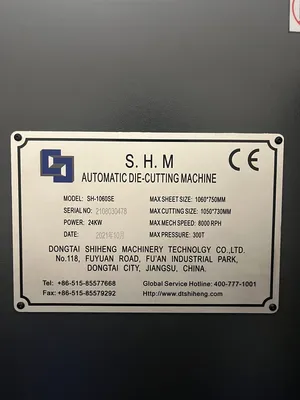

MANUFACTURER: Shi Heng Machinery
MODEL: SH-1060SE
SERIAL NO.: 2108030478
MFG DATE: 2021
POWER: 380v/50Hz (3 phase)
24KW

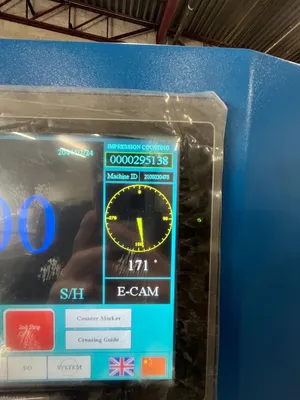

Impression Count: 295,138
Maximum paper size (mm): 1060 × 750
Minimum paper size (mm): 400 × 360
Maximum die cutting size (mm): 1050 × 730
Minimum blade size (mm): 8mm
Applicable paper range 80-2000 gsm cardboard
Corrugated cardboard thickness (mm): = 4 mm
Maximum die cutting speed (rph): 8000
Precision: ±0.075mm
Maximum working pressure: 300T

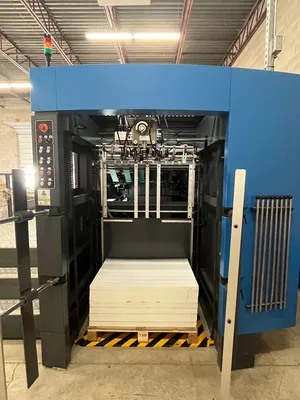

Max feeding pile height: 1700mm including the pallet
Stripping function: 4 side stripping, including gripper side waste

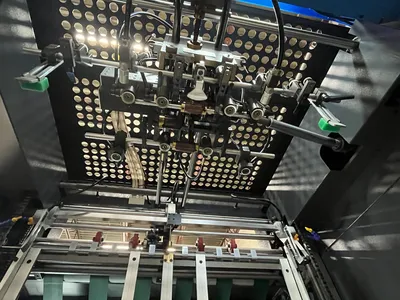

Non‑stop feeder with pre‑loading platform

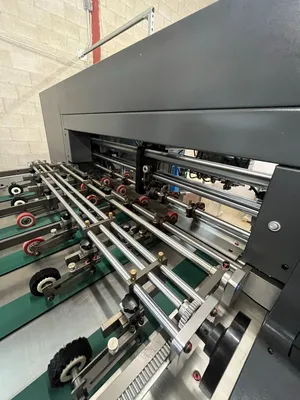

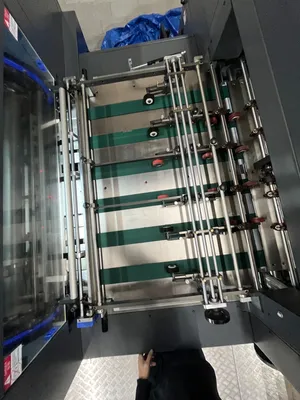

Non‑stop delivery with brush push‑down, jogger device, and auxiliary belt table

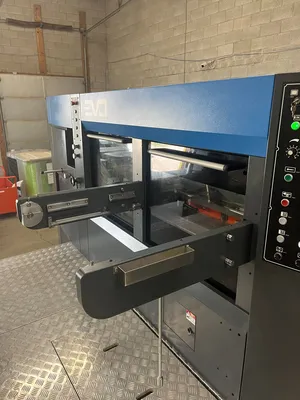

Stripping chases: 3 (upper/lower frames pull out)
Second stripping channel for gripper-margin waste
Supports stripping pins or tools
Mitsubishi/Toshiba inverters, Mitsubishi/Panasonic PLC

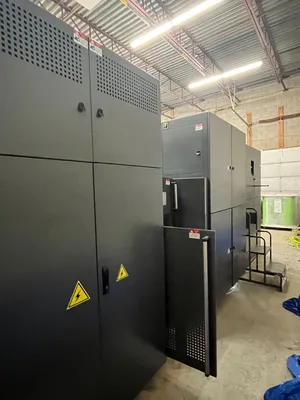

MOSLER/Eaton switches and breakers

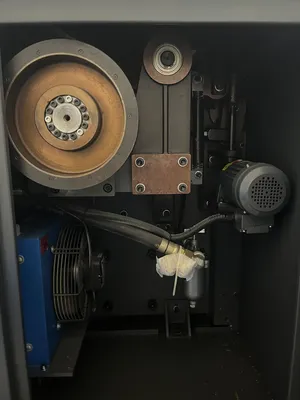

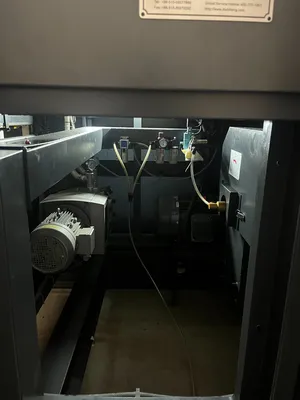

TECO motors, Becker vacuum pump

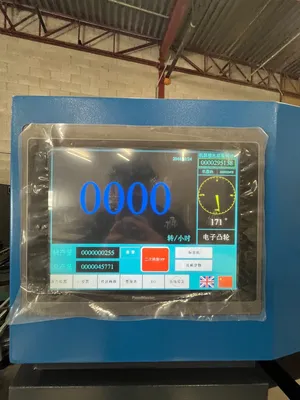

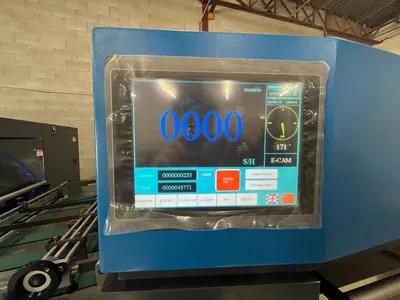

Full-color HMI touchscreen (records pressure settings, troubleshooting help)
MACHINE WEIGHT: 17000 LBS
MACHINE DIMENSIONS: 240'' X 101'' X 110''
2021 SHM SH-1060SE AUTOMATIC DIE CUTTING AND STRIPPING MACHINE
MANUFACTURER: Shi Heng Machinery
MODEL: SH-1060SE
SERIAL NO.: 2108030478
MFG DATE: 2021
POWER: 380v/50Hz (3 phase)
24KW
Impression Count: 295,138
Maximum paper size (mm): 1060 × 750
Minimum paper size (mm): 400 × 360
Maximum die cutting size (mm): 1050 × 730
Minimum blade size (mm): 8mm
Applicable paper range 80-2000 gsm cardboard
Corrugated cardboard thickness (mm): = 4 mm
Maximum die cutting speed (rph): 8000
Precision: ±0.075mm
Maximum working pressure: 300T
Max feeding pile height: 1700mm including the pallet
Stripping function: 4 side stripping, including gripper side waste
Non‑stop feeder with pre‑loading platform
Non‑stop delivery with brush push‑down, jogger device, and auxiliary belt table
Stripping chases: 3 (upper/lower frames pull out)
Second stripping channel for gripper-margin waste
Supports stripping pins or tools
Mitsubishi/Toshiba inverters, Mitsubishi/Panasonic PLC
MOSLER/Eaton switches and breakers
TECO motors, Becker vacuum pump
Full-color HMI touchscreen (records pressure settings, troubleshooting help)
MACHINE WEIGHT: 17000 LBS
