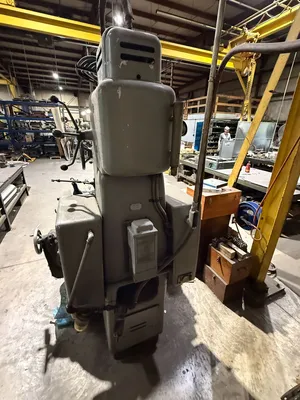

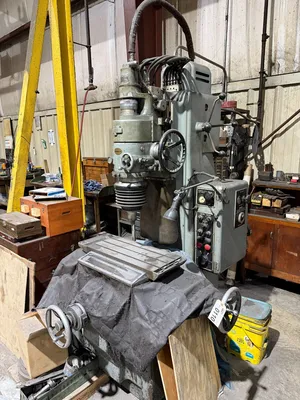

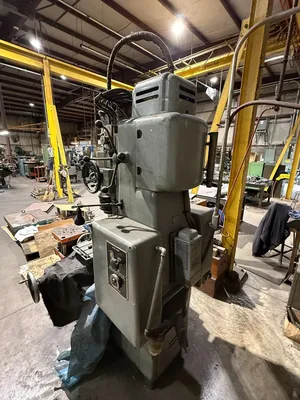

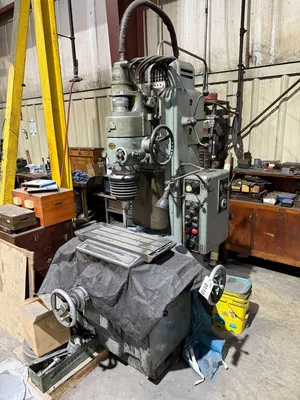

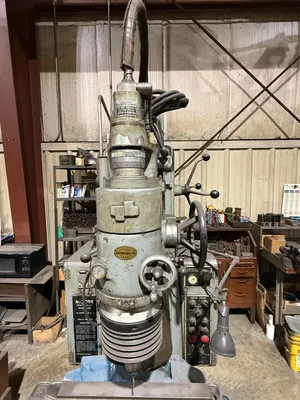

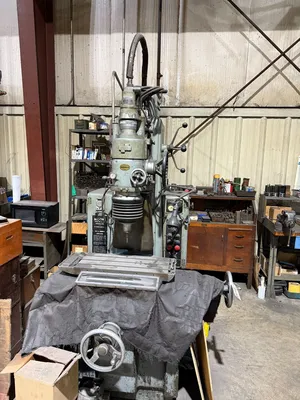

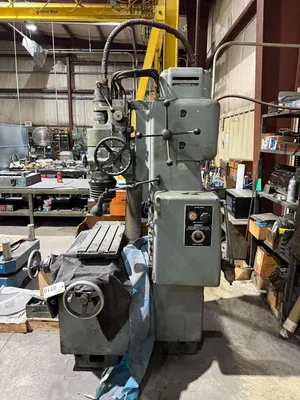

MOORE TOOLS JIG GRINDER MODEL NO. 3

Description

MOORE TOOLS JIG GRINDER MODEL NO. 3

MANUFACTURER: MOORE TOOLS
MODEL: NO. 3

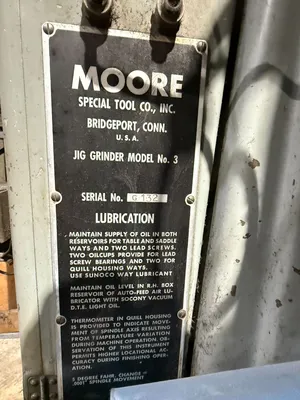

SERIAL NO.: G132

POWER: 440V 3PH

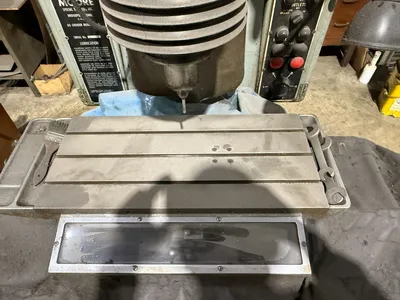

Table Size: 11'' × 24''
Table Travel (L × X): 18'' longitudinal × 11'' cross
Spindle-to-Collect (Min–Max): 2'' – 18''
Spindle-to-Ways Clearance: 10''
Spindle-to-Column Below Ways: 13½''
Head Vertical Travel: ~3⅝''

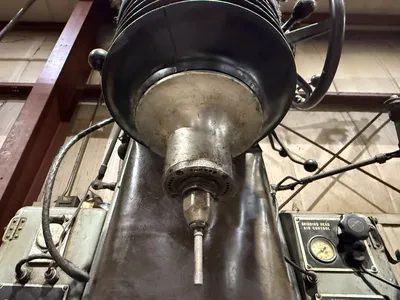

Spindle Speeds: 40–250 RPM (infinitely variable)
Wheel Speed: Up to ~10,000 RPM
Spindle Feed: 4–240 SPM
Angular Tilt: ±1½°
Grinding Capacity: 0.187'' – 5''
Controls: Hydraulic/air variable feeds & speeds
Dimensions (F×R×H): 80'' × 65'' × 102''

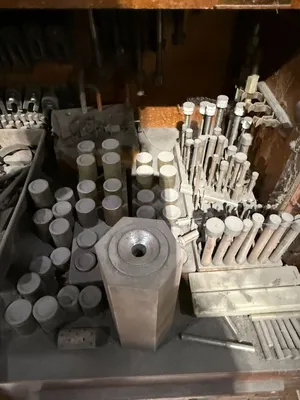

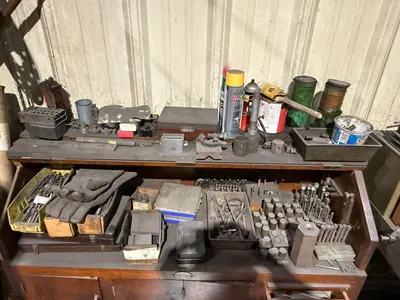

COMES WITH SOME CONSUMABLES
*CABINET NOT INCLUDED*

Weight: 3,800 lb
MACHINE DIMENSIONS: 52'' X 64'' X 101''
