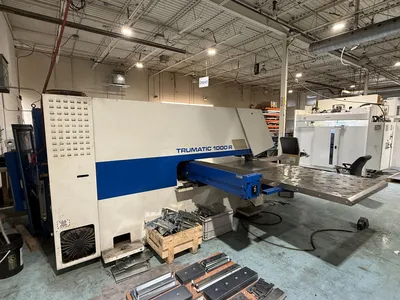

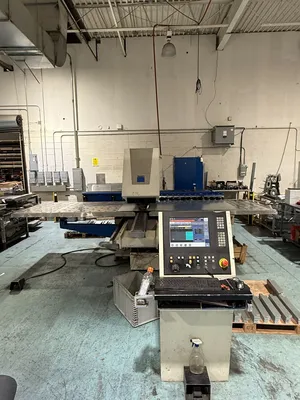

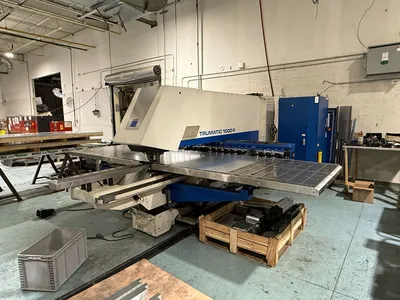

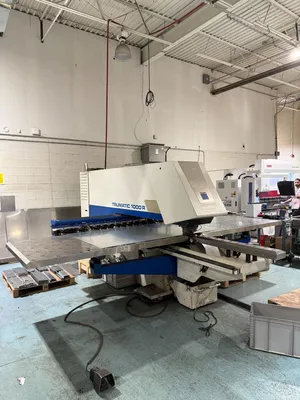

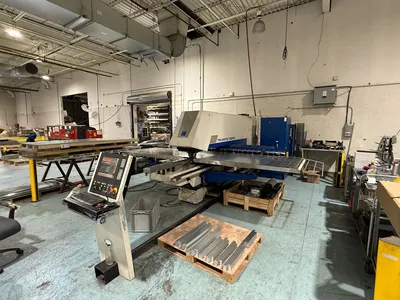

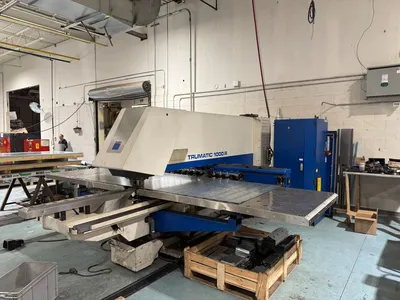

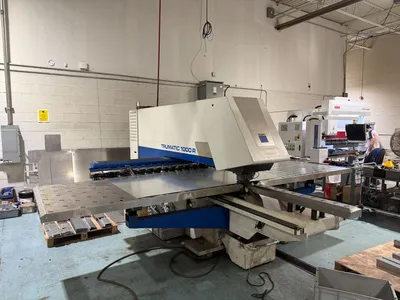

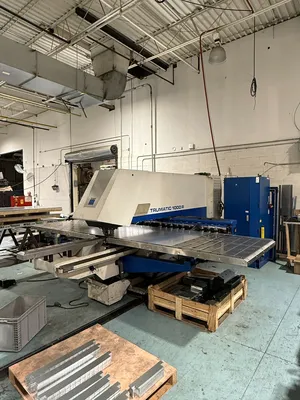

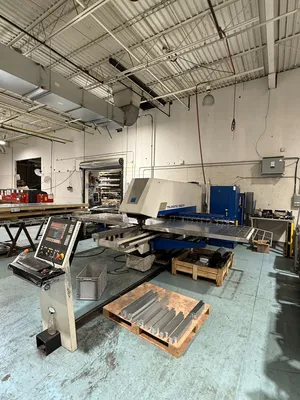

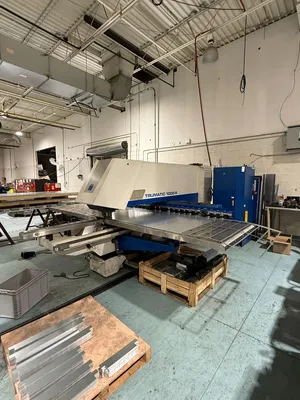

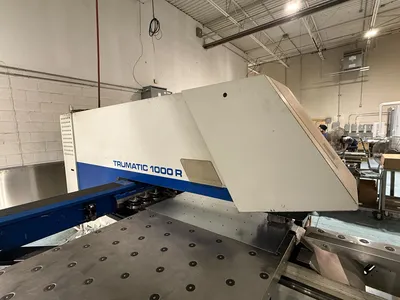

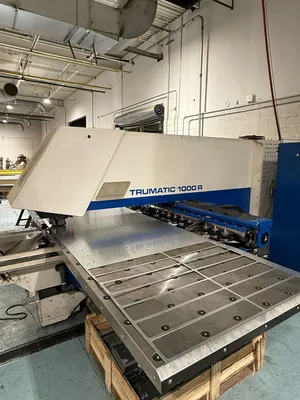

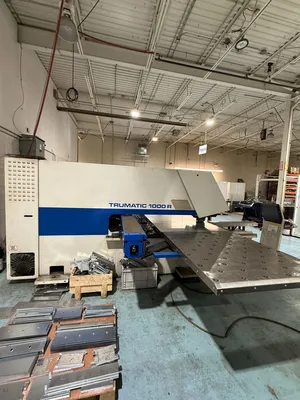

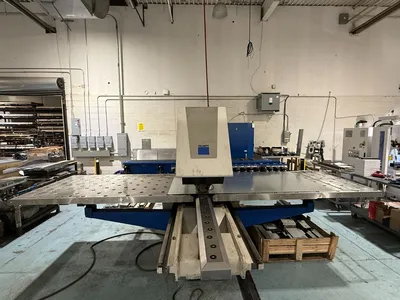

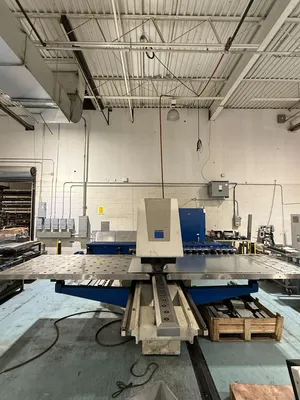

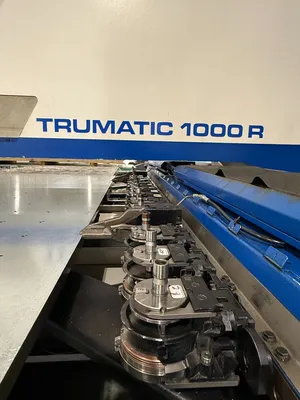

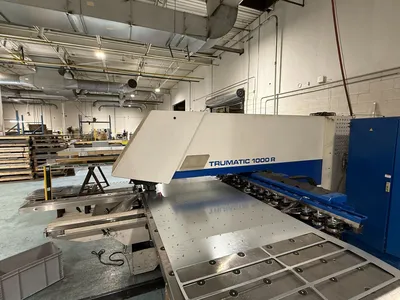

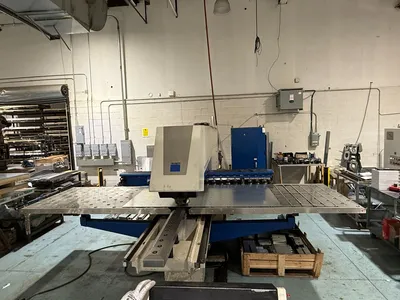

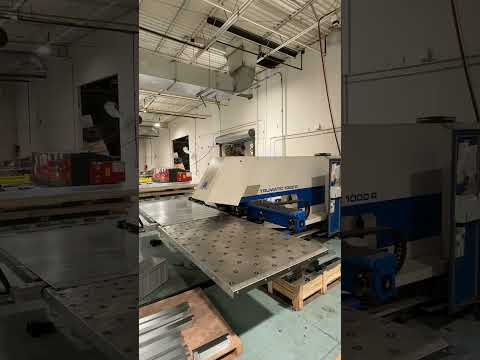

2006 TRUMPF TRUMATIC 1000R TURRET PUNCH
Have one to sell?
ConditionUsed
1 available
2006 TRUMPF TRUMATIC 1000R TURRET PUNCH

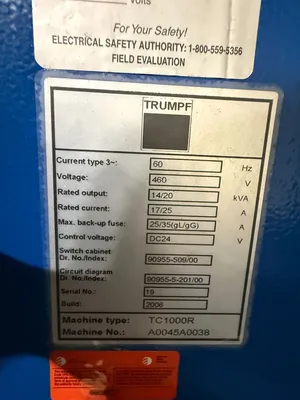

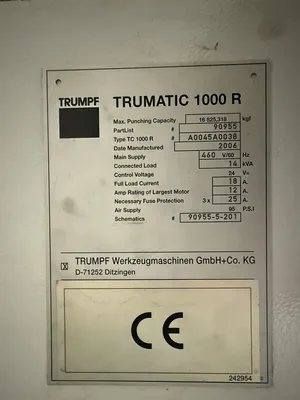

MANUFACTURER: TRUMPF
MODEL: TRUMATIC 1000R
SERIAL NO.; 90955
MFG DATE: 2006
POWER: 460V 60HZ

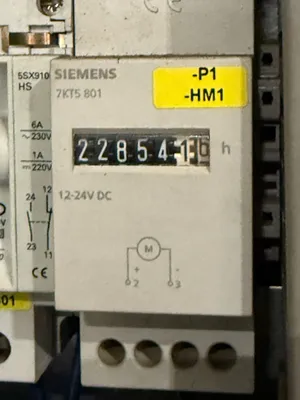

HOURS: 22,854 HOURS
CONNECTED LOAD: 14KVA
CONTROL VOLTAGE: 24V
FULL LOAD CURRENT:18A
PUNCH FORCE: ~165 KN (16.5 T)
SHEET THICKNESS (MAX): 6.4 MM
PUNCH DIAMETER (MAX): 76.2 MM
STROKE RATE: 600 PUNCHES/MIN (1 MM PITCH)
TRAVEL X / Y: ≈2070 × 1250 MM
WORKPIECE WEIGHT (MAX): ~150 KG
AIR SUPPLY: 95 PSI
TABLE SIZE: 50 X 170'' INCHES
*SAFETY LIGHT CURTAINS INCLUDED*
MACHINE WEIGHT: ~9000 KG
MACHINE DIMENSIONS: 93'' X 200'' X 90''
2006 TRUMPF TRUMATIC 1000R TURRET PUNCH
MANUFACTURER: TRUMPF
MODEL: TRUMATIC 1000R
SERIAL NO.; 90955
MFG DATE: 2006
POWER: 460V 60HZ
HOURS: 22,854 HOURS
CONNECTED LOAD: 14KVA
CONTROL VOLTAGE: 24V
FULL LOAD CURRENT:18A
PUNCH FORCE: ~165 KN (16.5 T)
SHEET THICKNESS (MAX): 6.4 MM
PUNCH DIAMETER (MAX): 76.2 MM
STROKE RATE: 600 PUNCHES/MIN (1 MM PITCH)
TRAVEL X / Y: ≈2070 × 1250 MM
WORKPIECE WEIGHT (MAX): ~150 KG
AIR SUPPLY: 95 PSI
TABLE SIZE: 50 X 170'' INCHES
*SAFETY LIGHT CURTAINS INCLUDED*
MACHINE WEIGHT: ~9000 KG
