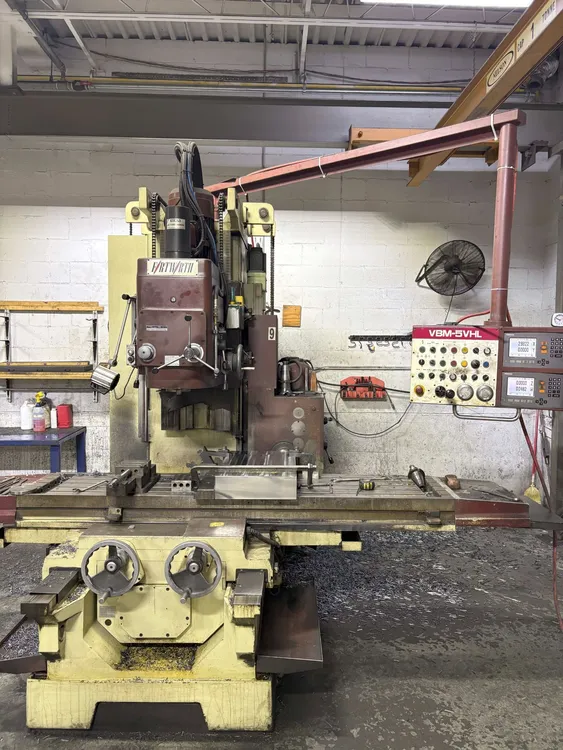

FORTWORTH VBM-5VHL VERTICAL/HORIZONTAL BORING & MILLING MACHINE

Description

FORTWORTH VBM-5VHL VERTICAL/HORIZONTAL BORING & MILLING MACHINE

MANUFACTURER: FORT WORTH
MODEL: VBM-5VHL

POWER: 600V 18 Amp 3Ph 60Hz

TRAVELS
X-Axis longitudinal: 1500 mm
Y-Axis cross: 600 mm
Z-Axis vertical head travel: 700 mm
W-Axis horizontal head travel: 650 mm
Guideway type (X / Y / Z / W): dovetail/box/box/box
Bedway type (X / Y / Z / W): Turcite

TABLE
Work surface: 2200 x 500 mm
T-slot number (width x pitch): 5 (18 x 90 mm)
Table top to floor: 915 mm
Max table load: 1250 kg

VERTICAL SPINDLE
Taper: ISA 50
Spindle drive motor: 15 hp
Spindle speed (12-step): 45 - 1500 rpm
Z-Axis feed (5-step): 0.05 - 0.2 mm/rev
Spindle nose to table: 100 - 800 mm
Spindle nose to column surface: 550 mm

HORIZONTAL SPINDLE
Taper: ISA 50
Horizontal spindle drive motor: 7.5 hp
Spindle speed (12-step): 40 - 1450 rpm
Distance between spindle centres: 550 mm

FEED SYSTEM
Longitudinal & cross feed: 28 - 1000 mm/min
Longitudinal & cross rapid feed: 3300 mm/min
Horizontal head feed up & down: 28 - 1000 mm/min
Horizontal head rapid feed: 3800 mm/min
Change of feeds: infinitely variable
Longitudinal & cross feed motor: 4.7 hp servo
Vertical head feed motor: —
Horizontal head feed motor: 1.14 hp

GENERAL
Electrical approval: CSA SPE-1000
PHSR exemption letter: valid in Ontario

Weight: 8700 kg
