2005 SCM CONCEPT NT/L DOUBLE-END TENONING LINE

Description

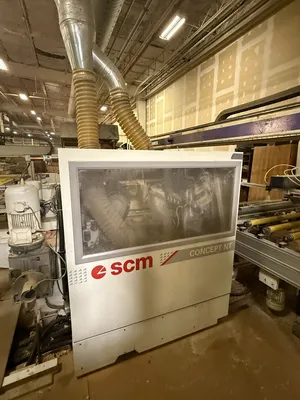

2005 SCM CONCEPT NT/L DOUBLE-END TENONING LINE

MANUFACTURER: SCM GROUP
MODEL: CONCEPT NT/L
MFG DATE: 2005
TYPE: DOUBLE-END TENONING LINE

POWER: 600V 3PH 60HZ

Panel length: 200–2 600 mm (8"–102")
Panel width: ≤ 3 000 mm (118")
Panel thickness: 4–90 mm
Scoring head motor: ≈2.2 kW (3 hp) each
Trim/hogging motor: 5.6–7.5 kW (7.5–10 hp) each
Coping/station motor: ≈6.3 kW (8.5 hp) each
Feed speed: 4–32 m/min (13–105 ft/min)
Opening system: Motorized, LED/digital readout
Jump cope (electropneumatic): Yes
Required air pressure: 8–10 bar dry air
Dust extraction: Multiple ports: Ø100 mm, Ø80 mm
Laydown support: ~600 mm in/out (24")
Minimum width support: ~170 mm (6.7")
CONVEYOR WIDTH: 64''
SPEED (MIN.): 7 PANELS/MIN

*COMPONENTS*

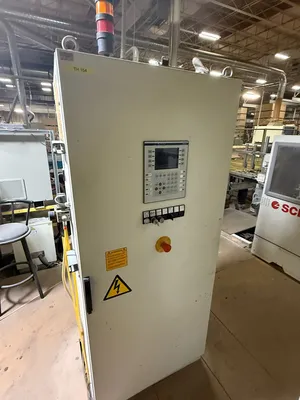

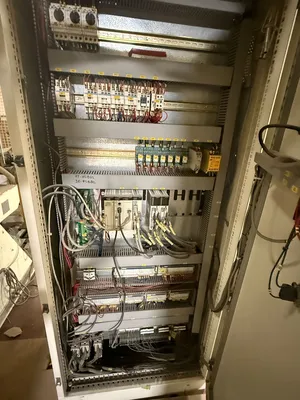

PLC CONTOLS

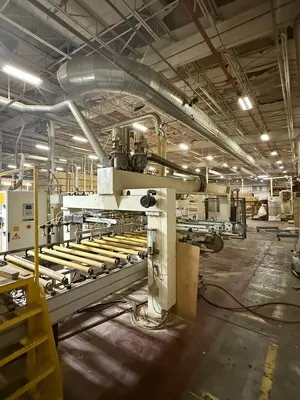

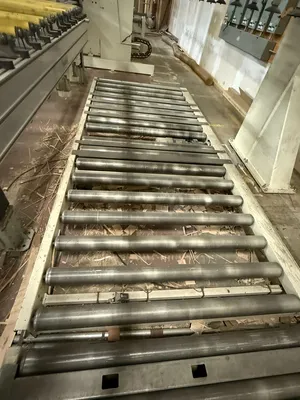

POWERED ROLLER CONVEYORS (~60” wide)
TRIMMING AND SCORING HEADS
VACCUUM FEEDER STACKERS
POWER TRANSFORMERS
SAFETY ENCLOSURES

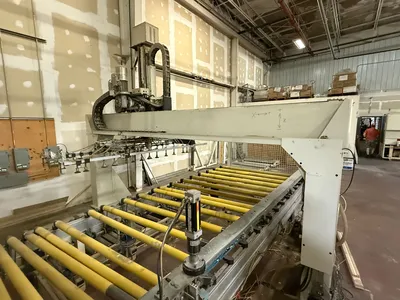

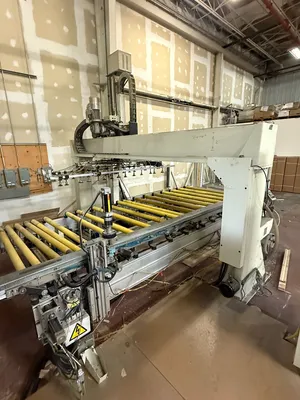

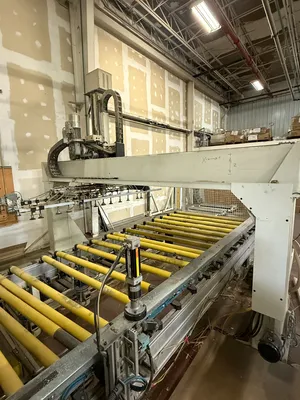

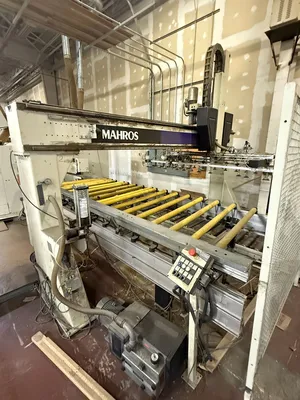

VACCUUM FEEDERS:

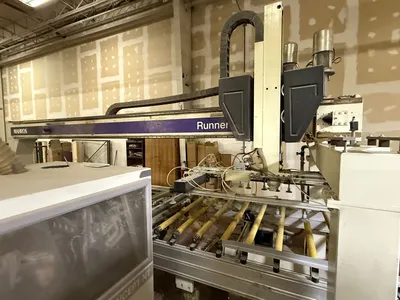

2005 MAHROS RUNNER/S
SERIAL NO.: SI00113/05
WEIGHT: 5500KG

2006 MAHROS RUNNER/D-CSL
SERIAL NO.: SI00113/01
WEIGHT: 5300 KG

2005 MAHROS RUNNER/D-SSL
SERIAL NO.:SI00113/05
5000KG
