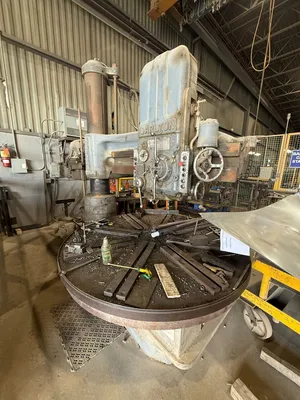

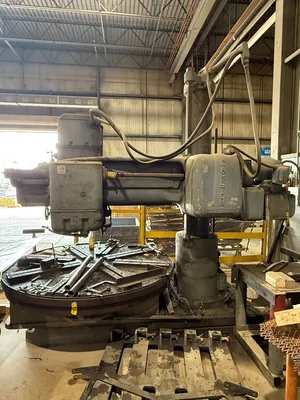

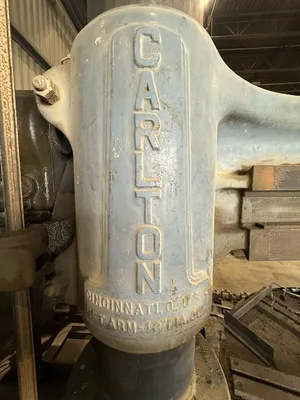

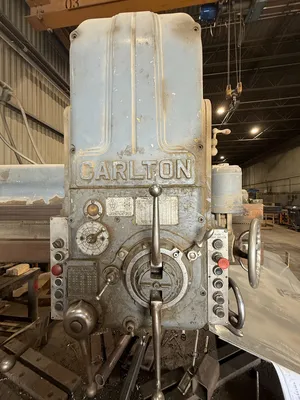

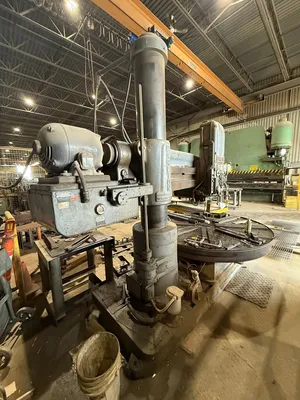

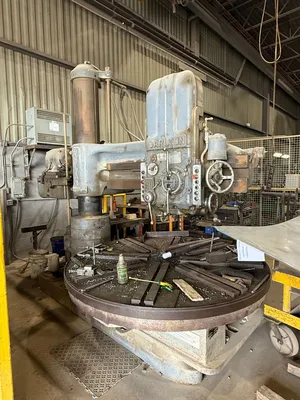

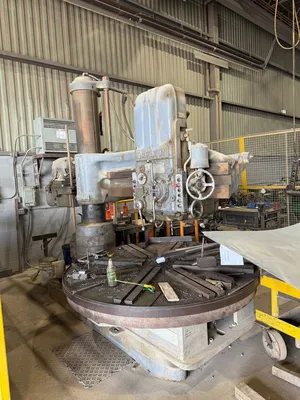

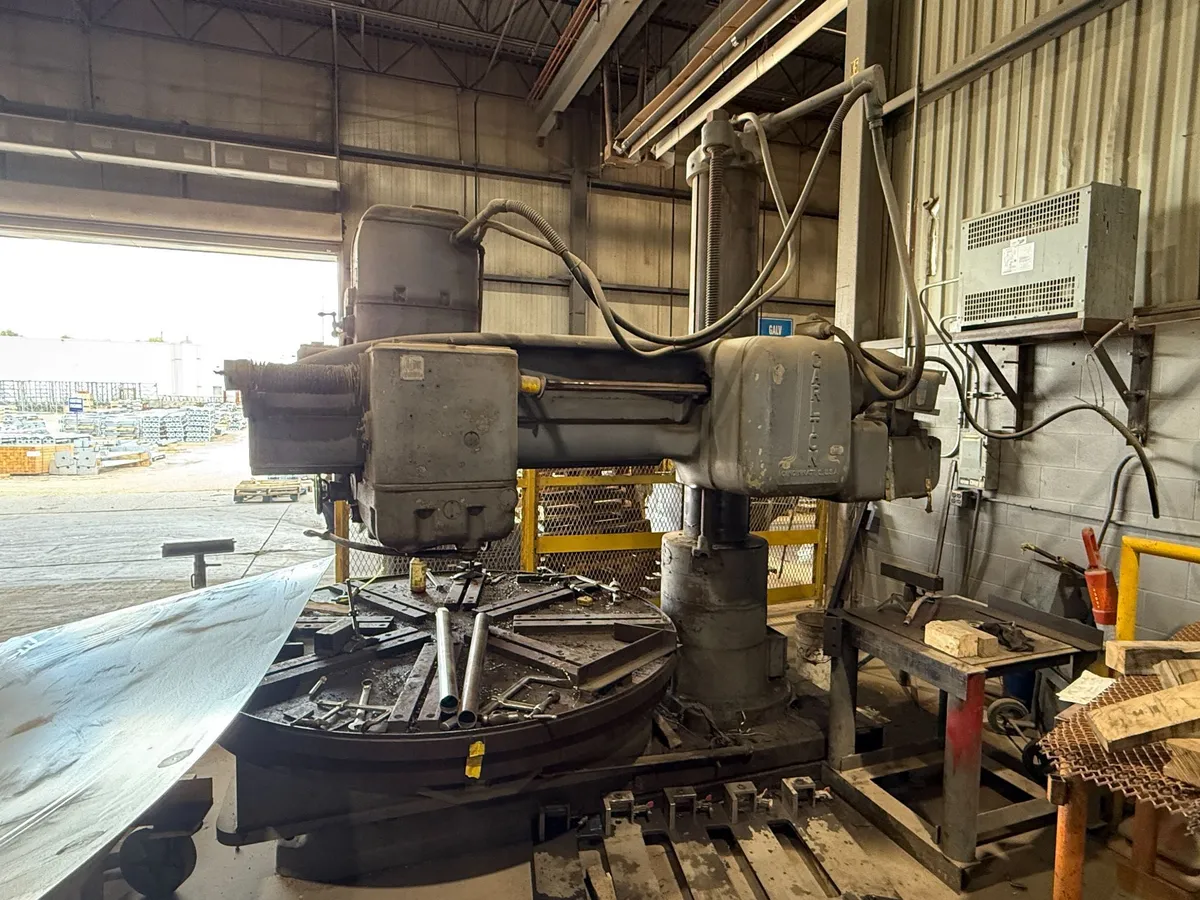

2011 CARLTON RFT-150 8' RADIAL ARM DRILL
Have one to sell?
ConditionUsed
1 available
2011 CARLTON RFT-150 8' RADIAL ARM DRILL
Manufacturer: Carlton
Model: RFT-150
Mfg Date: 2011
POWER: 440V 3PH 60HZ
Arm Length: 8′ 2.4'' (≈ 2.49 m)
Table Diameter: 80''
Column Diameter: 19'' (482.6 mm)
Max Spindle-to-Base: 78'' (1,981 mm)
Min Spindle-to-Base: 14.5'' (368 mm)
Vertical Arm Travel (Column): 43'' (1,092 mm)
Horizontal Head Travel (Arm): 82'' (2,083 mm)
Max Spindle Radius from Column Face: 96'' (2,438 mm)
Vertical Spindle Travel (Head): 20'' (508 mm)
Spindle Diameter: 4'' (101.6 mm)
Spindle Speeds: 36 speeds, 15–3,550 RPM
Power Functions: Clamping (arm & head), elevation, head power traverse
Machine Dimensions:182'' X 70'' X 147''
Weight: ~15,900 kg
2011 CARLTON RFT-150 RADIAL ARM DRILL
Manufacturer: Carlton
Model: RFT-150
Mfg Date: 2011
POWER: 440V 3PH 60HZ
Arm Length: 8′ 2.4'' (≈ 2.49 m)
Table Diameter: 80''
Column Diameter: 19'' (482.6 mm)
Max Spindle-to-Base: 78'' (1,981 mm)
Min Spindle-to-Base: 14.5'' (368 mm)
Vertical Arm Travel (Column): 43'' (1,092 mm)
Horizontal Head Travel (Arm): 82'' (2,083 mm)
Max Spindle Radius from Column Face: 96'' (2,438 mm)
Vertical Spindle Travel (Head): 20'' (508 mm)
Spindle Diameter: 4'' (101.6 mm)
Spindle Speeds: 36 speeds, 15–3,550 RPM
Power Functions: Clamping (arm & head), elevation, head power traverse
Machine Dimensions:182'' X 70'' X 147''
Weight: ~15,900 kg
