2023 IPG PHOTONICS LIGHTWELD 1500 XR HANDHELD LASER WELDING SYSTEM

Description

2023 IPG PHOTONICS LIGHTWELD 1500 XR HANDHELD LASER WELDING SYSTEM

Manufacturer: IPG PHOTONICS
Model: LIGHTWELD 1500 XR
Mfg Date: April 2023

VOLTAGE: 200-240VAC, 50/60 Hz, 1Ph
Full load current: 24 A
Maximum breaker size: 30A

System Type: Handheld fiber laser welding & cleaning (XR model)
Laser Type / Wavelength: Ytterbium fiber, ~1070 nm
Average Output Power: Up to 1500 W weld
Peak (Pulsed) Power: Up to 2500 W for cleaning

Max Welding Thickness:
Steel (stainless/galv/mild): 6.35 mm
Aluminum (3 & 5 series): 6.35 mm
Aluminum (6 series): 3 mm
Titanium / Nickel alloys: 5 mm
Copper: 2 mm

Wobble Welding Width: Up to 5 mm
Cleaning Width: Up to 15 mm
Preset Modes: 74 stored settings (weld & clean)
Cooling: Air-cooled

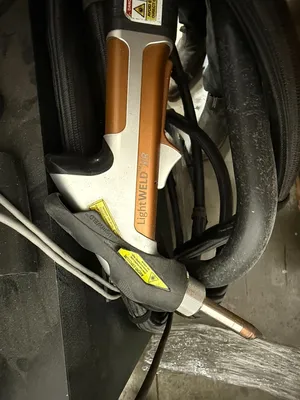

Fiber Cable: 10 m single-mode delivery to handheld head
Beam Spot: 150 µm; focal length 120 mm

Controls: Front-panel knobs/buttons + Ethernet GUI

Safety Features: Key switch, E‑Stop, fiber gun interlock, two-step trigger, part-contact interlock

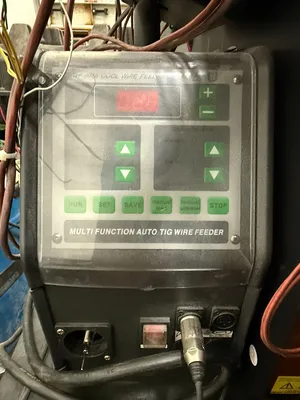

Multi Function Auto Tig Wire Feeder:
Model: WF-007A
Power Supply: 110VAC, 50/60Hz

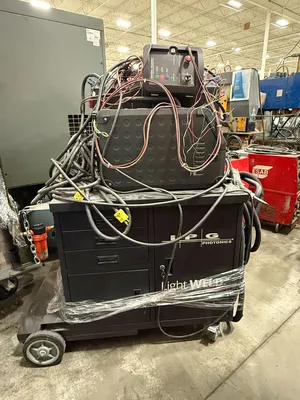

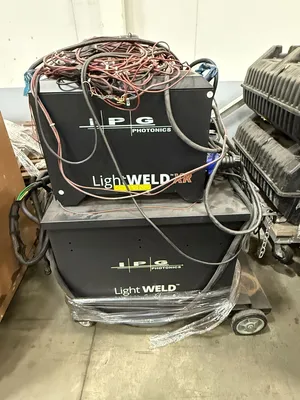

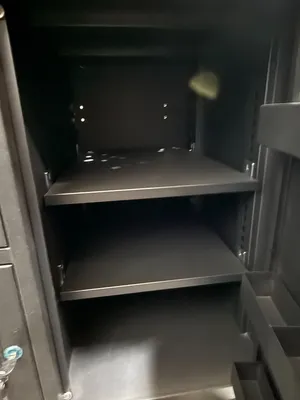

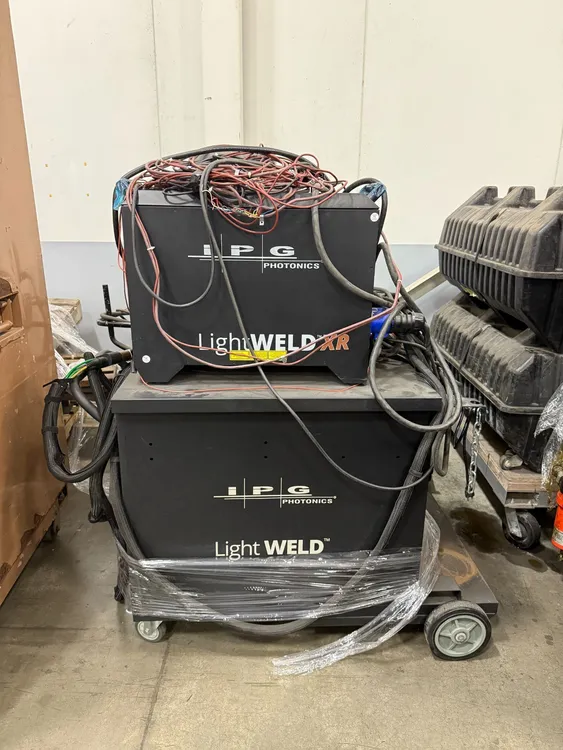

*INCLUDES WELDER, CART, WIREFEEDER*

WEIGHT (WELDER): 53 KGS
MACHINE DIMENSIONS (WELDER): 25'' X 12'' X 21''
