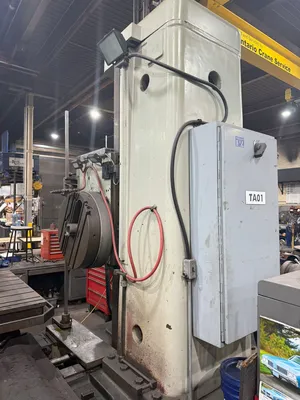

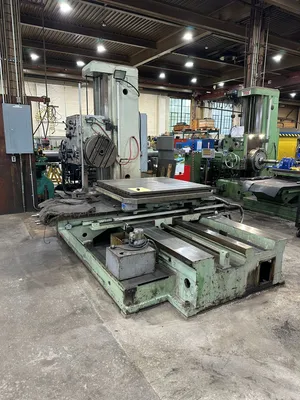

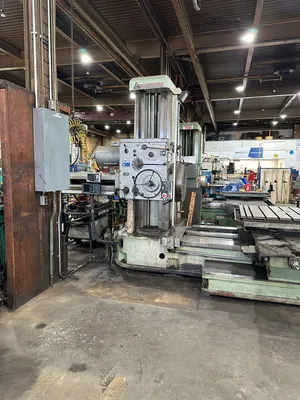

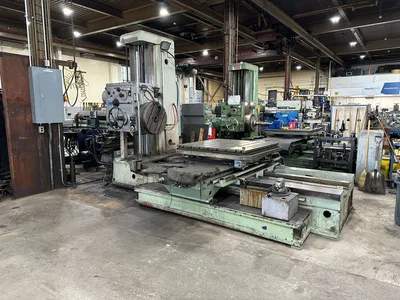

TOS W100A HORIZONTAL BORING MACHINE

Description

TOS W100A HORIZONTAL BORING MACHINE

Manufacturer: TOS
Model: W100A

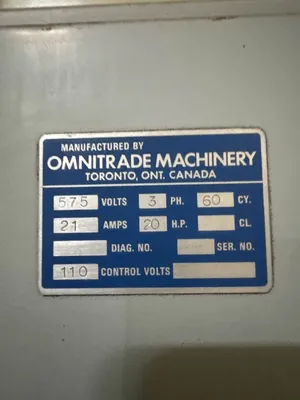

POWER: 575v, 60hz , 3ph

Spindle diameter: 100 mm
Spindle taper: ISO 50
Spindle stroke (W-axis): 900 mm
Facing head diameter: 580 mm
Spindle speeds: 7.1 – 1120 RPM, 23 steps
Max spindle torque: 3350 Nm
X-axis travel (table cross): 1600 mm
Y-axis travel (vertical headstock): 1120 mm
Z-axis travel (longitudinal saddle): 1250 mm
W-axis travel (spindle stroke): 900 mm
Table size: 1250 × 1250 mm (49'' x 49'')
T-slot size: 22 mm
Max table load: 3000 kg
Rotary table: 360° indexing, 1 RPM rotation
Feeds: 18 – 900 mm/min (18 steps)
Threading feeds (metric): 0.25 – 12 mm/rev
Threading feeds (imperial): 120 – 2.5 TPI
Rapid traverse (X, Y, Z, W): 2800 mm/min (110 IPM)
Main spindle motor: 11 kW (15 HP) at 1460 RPM
Feed drive motor: 1.1 kW
Aux/pump motors: 0.25 – 0.75 kW

Weight: 14,000 kg
Machine Dimensions: 264'' x 136'' x 118''
