2016 PEDDINGHAUS PEDDDIWRITER PW-1250 PLASMA LAYOUT SYSTEM

Description

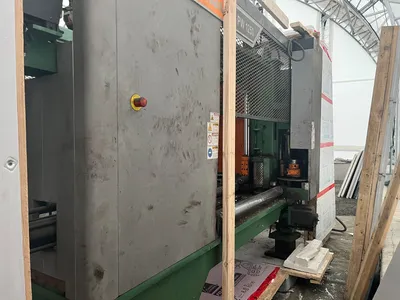

2016 PEDDINGHAUS PEDDDIWRITER PW-1250 PLASMA LAYOUT SYSTEM

Manufacturer: Peddinghaus
Model: Peddiwriter PW-1250
Mfg Date: 01.2016

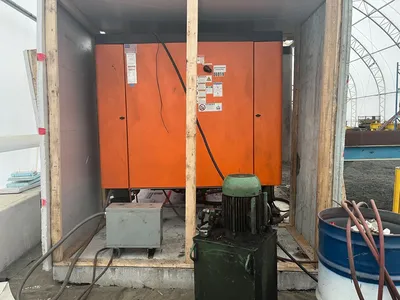

POWER: 460v, 60hz, 3ph
Full load current: 28.4 A
Largest motor FLA: 11 A
Power requirement: 22.6 kVA
SCCR: 50 kA

Type: Automatic Plasma Layout Marking System
Software: Peddinghaus Raptor (CAD/CAM)

MATERIAL / PROFILE CAPACITY
Minimum section width: 3 in
Maximum section width: 50 in
Minimum section height: 3 in
Maximum section height: 24 in
Maximum profile weight: 43,800 lbs
Minimum material length: ~10 ft
Maximum section density: ~300 lbs/ft

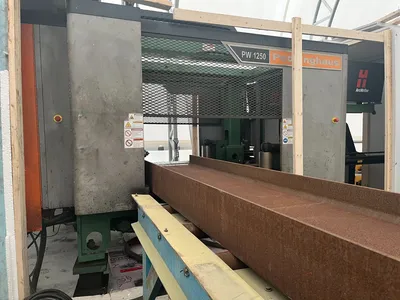

Shapes processed: Beams, channels, angles, square/rectangular tubing, flat stock

MARKING SYSTEM

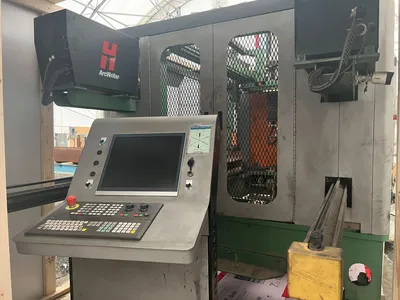

Number of plasma torches: 2 (Hypertherm ArcWriter)
Surfaces marked simultaneously: 2

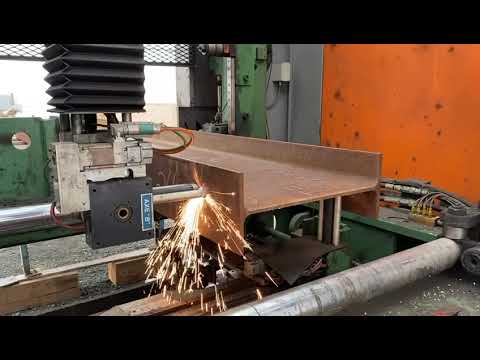

Marking capability: 4-sided (top & bottom web, top & bottom flange)
Torch stand-off system: Mechanical roller probe detection

MACHINE TRAVEL (APPROX.)
X-axis: 24 in (610 mm)
Y-axis: 49.25 in (1250 mm)
Z-axis: 24 in (609 mm)

Weight: 16,000 lbs
