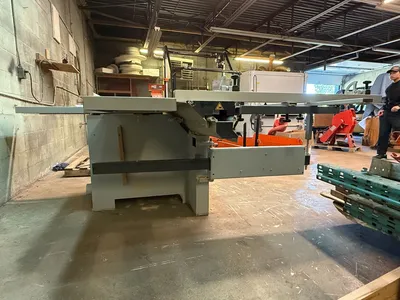

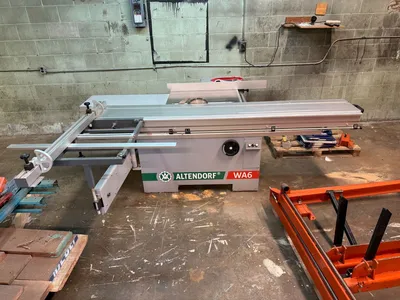

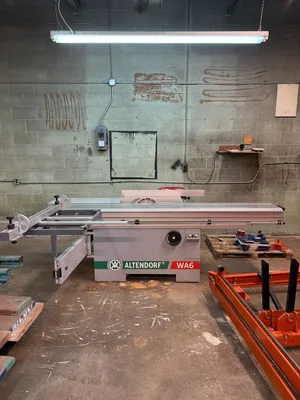

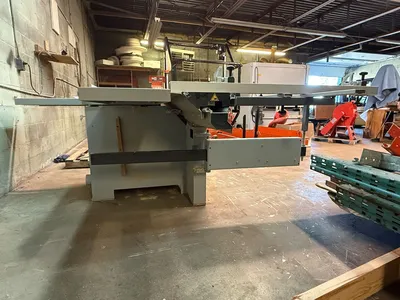

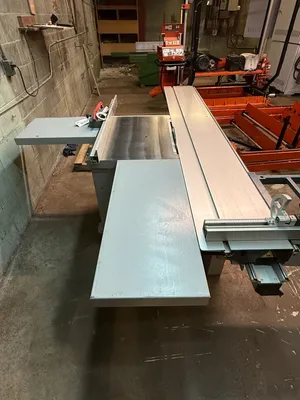

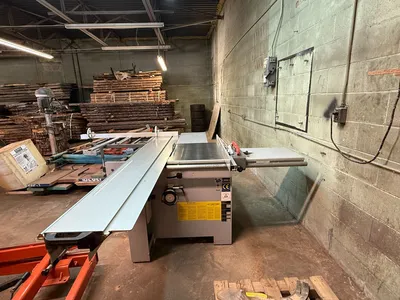

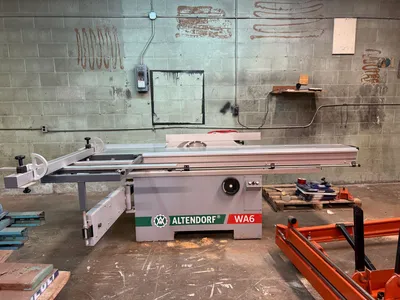

2006 WILHELM ALTENDORF WA6 SLIDING TABLE CIRCULAR SAW

Description

2006 WILHELM ALTENDORF WA6 SLIDING TABLE CIRCULAR SAW

Manufacturer: Wilhelm Altendorf
Model: WA6
Mfg Date: 2006

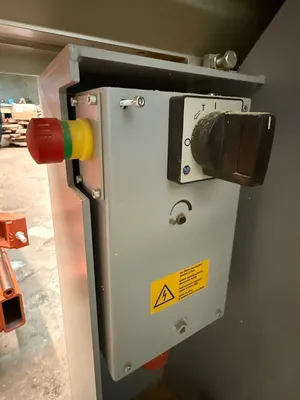

POWER: 440v, 60hz, 3ph

Machine type: Sliding-table (format) circular saw

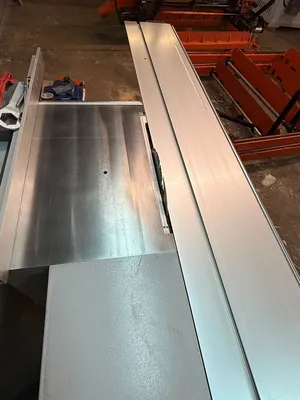

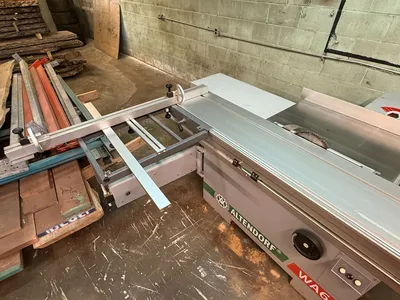

Sliding table length: 2,600 mm
Cutting length (mechanical travel): 2,500 mm
Rip fence cutting width: 1,260 mm

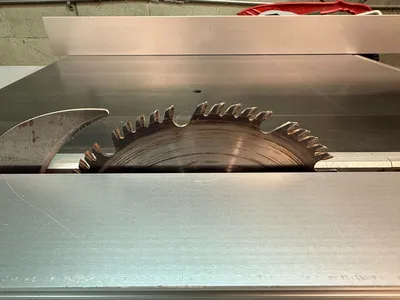

Saw blade diameter (main blade):
Minimum: 250 mm
Maximum: 315 mm (CE version)
Maximum cutting height at 90°: up to 117.5 mm (depending on blade size)

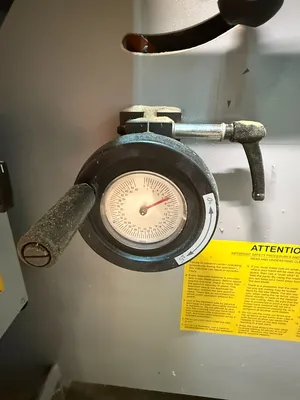

Maximum cutting height at 45°: up to 83 mm (depending on blade size)
Main motor power: 4.0 kW (≈5.5 HP)
Main saw speed: approx. 4,200 rpm
Scoring unit motor (when equipped): 0.37 kW (≈0.5 HP)
Saw blade tilt range: 0° to 45°
Mitre fence swivel range: up to 49°
Sliding table system: Double roller carriage (standard)
Table height: 910 mm (≈35.8 in)
Dust extraction outlet: Ø 100 mm

Weight: 450 kg
Machine Dimensions: 100'' X 110'' X 40'' in
