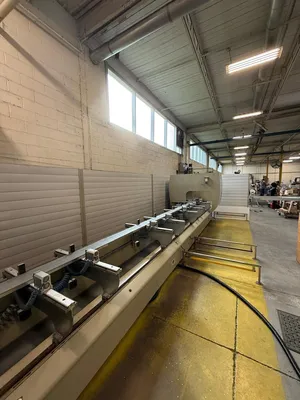

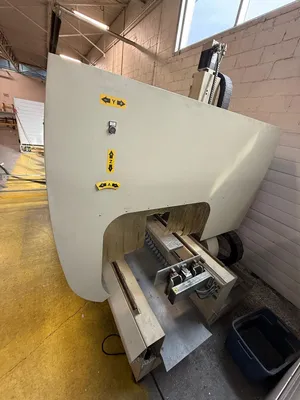

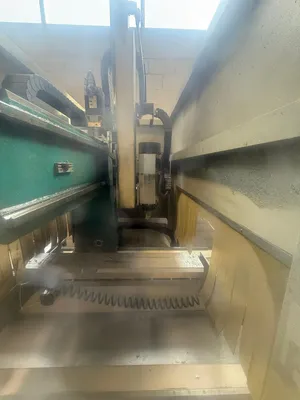

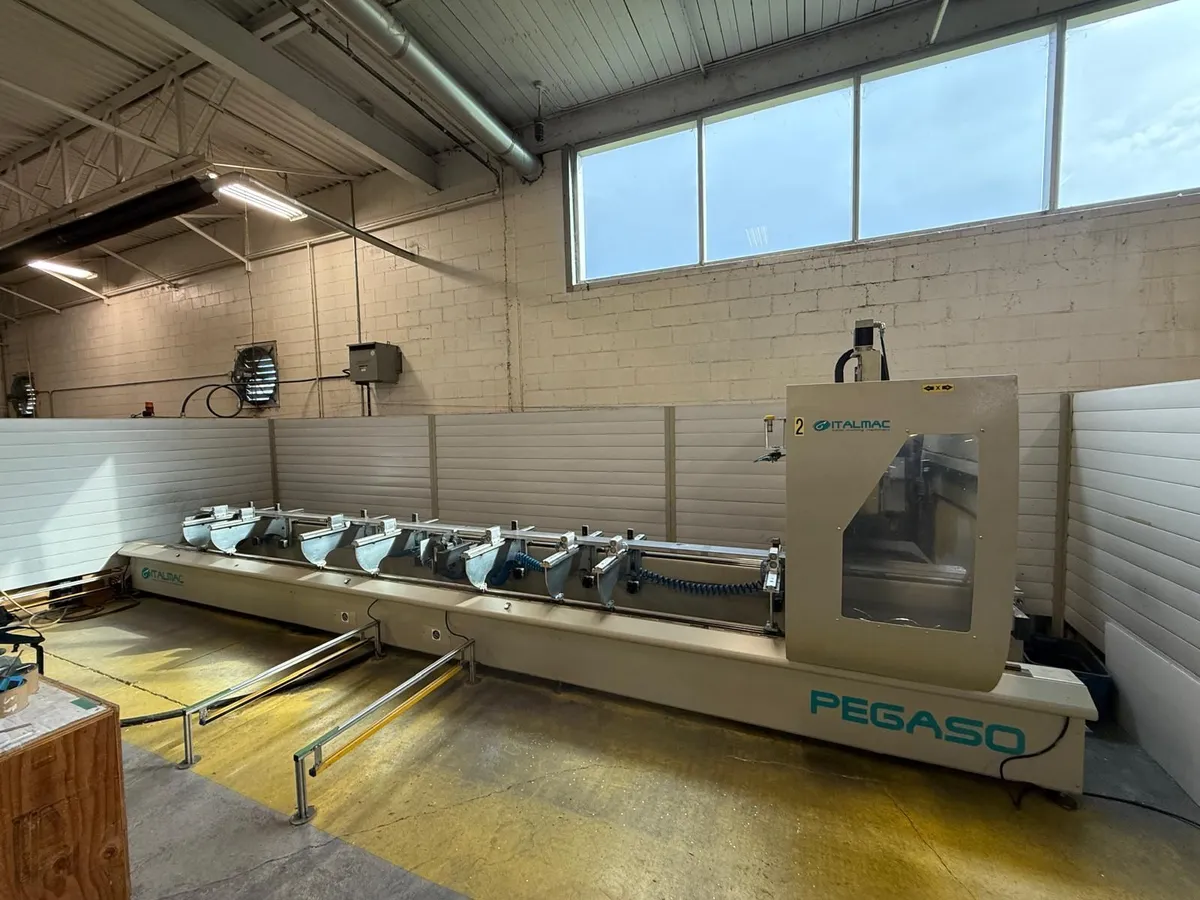

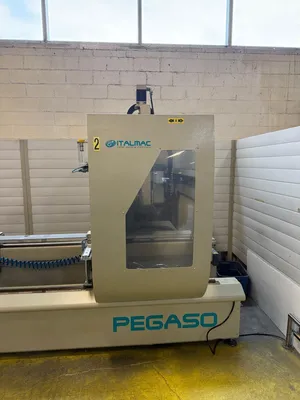

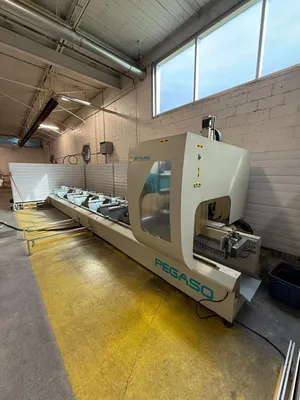

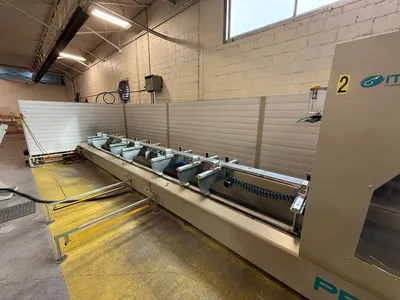

2015 ITALMAC PEGASO 7.0 ASSI 4-AXIS CNC MACHINING CENTER
Have one to sell?
ConditionUsed
1 available
2015 ITALMAC PEGASO 7.0 ASSI 4-AXIS CNC MACHINING CENTER
Manufacturer: Italmac
Model: Pgaso 7.0 ASSI
Mfg Date: 2015

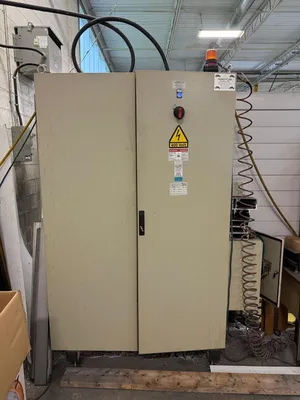

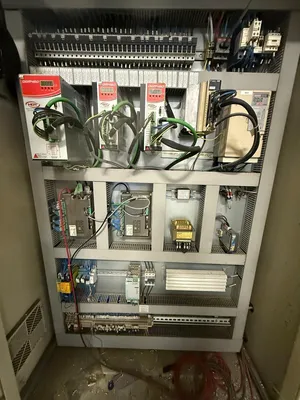

POWER:400v, 60hz, 11 kw, 32 amps
Machine type: 4-axis CNC machining center for aluminum, PVC, and light alloys
Axis Travel (Stroke)
X-axis: 7,470 mm
Y-axis: 1,325 mm
Z-axis: 600 mm
A-axis rotation: –90° to +90°
C-axis rotation: –185° to +185°
Axis Speeds
X-axis: 100 m/min
Y-axis: 60 m/min
Z-axis: 30 m/min

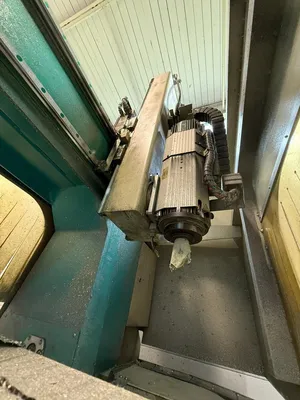

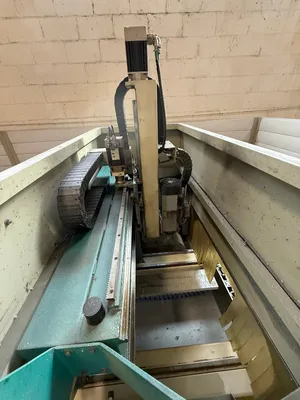

Spindle
Motor power: 12 kW
Maximum speed: up to 24,000 RPM
Tool taper: HSK F63
Cooling system: liquid-cooled
Capable of heavy milling, drilling, and tapping operations
Tool Magazine
Automatic tool changer
Standard capacity: 15 tools
Expandable capacity: up to 30 tools
Linear rack type

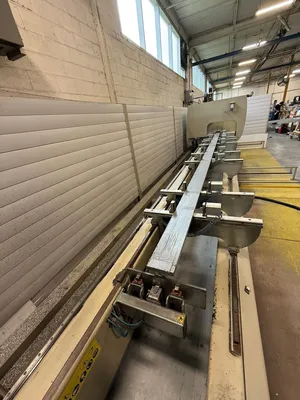

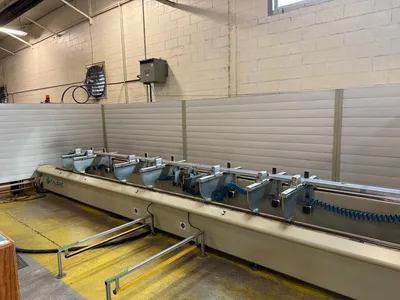

Work Area and Clamping
Machinable bar/profile length: up to 7,000 mm
Pneumatic clamps (4 standard, programmable repositioning)
Maximum profile cross-section: approx 300 × 640 mm
Weight: 4,300 kg
Machine Dimensions: 26' x 7' x 8'ft
2015 ITALMAC PEGASO 7.0 ASSI 4-AXIS CNC MACHINING CENTER
Manufacturer: Italmac
Model: Pgaso 7.0 ASSI
Mfg Date: 2015
POWER:400v, 60hz, 11 kw, 32 amps
Machine type: 4-axis CNC machining center for aluminum, PVC, and light alloys
Axis Travel (Stroke)
X-axis: 7,470 mm
Y-axis: 1,325 mm
Z-axis: 600 mm
A-axis rotation: –90° to +90°
C-axis rotation: –185° to +185°
Axis Speeds
X-axis: 100 m/min
Y-axis: 60 m/min
Z-axis: 30 m/min
Spindle
Motor power: 12 kW
Maximum speed: up to 24,000 RPM
Tool taper: HSK F63
Cooling system: liquid-cooled
Capable of heavy milling, drilling, and tapping operations
Tool Magazine
Automatic tool changer
Standard capacity: 15 tools
Expandable capacity: up to 30 tools
Linear rack type
Work Area and Clamping
Machinable bar/profile length: up to 7,000 mm
Pneumatic clamps (4 standard, programmable repositioning)
Maximum profile cross-section: approx 300 × 640 mm
Weight: 4,300 kg
Machine Dimensions: 26' x 7' x 8'ft
