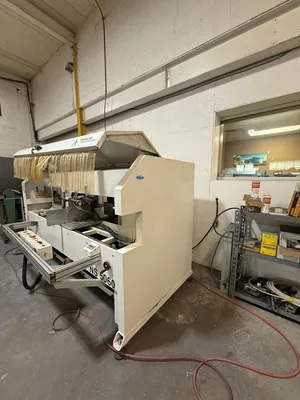

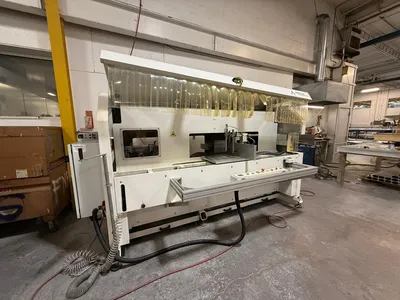

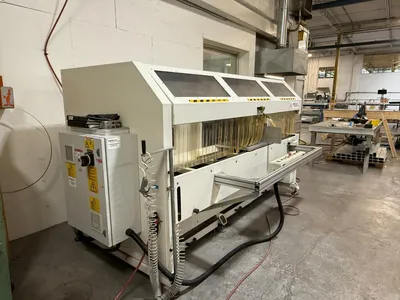

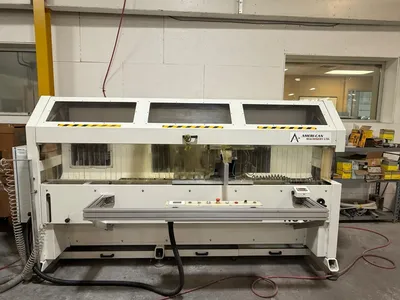

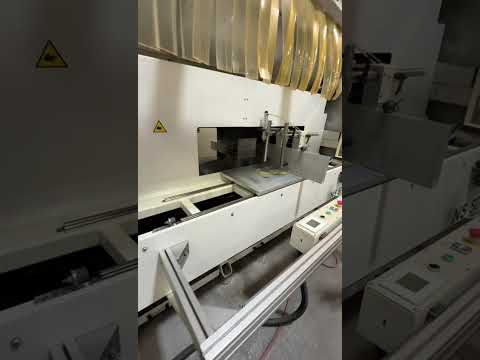

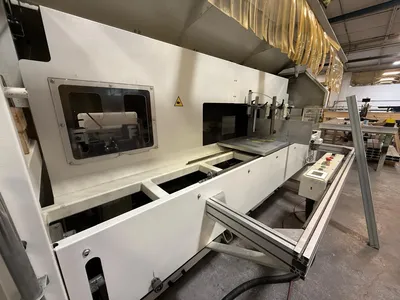

AMERI-CAN NS5060 TWO-BLADED NOTCH SAW

Description

AMERI-CAN NS5060 TWO-BLADED NOTCH SAW

Manufacturer: Ameri-Can
Model: NS5060

POWER: 220v, 60hz, 3ph

Machine type: Two-blade notching saw
Horsepower: 9hp

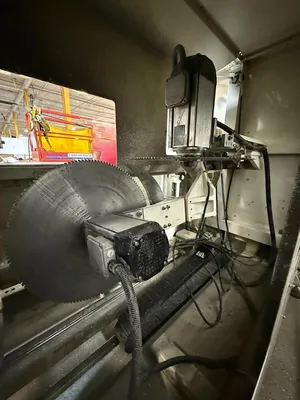

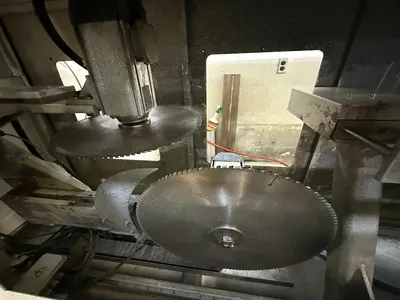

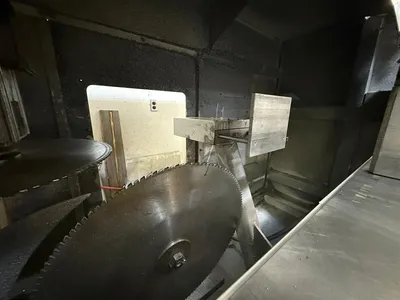

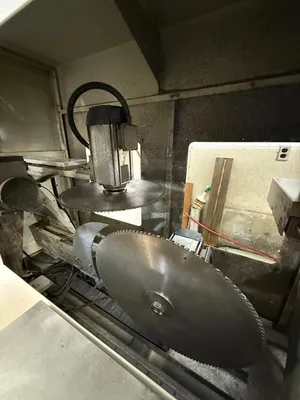

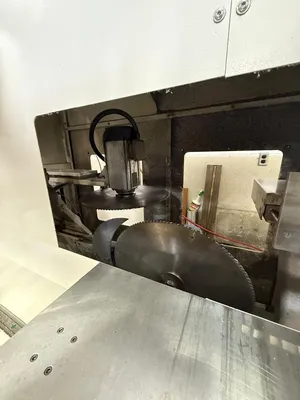

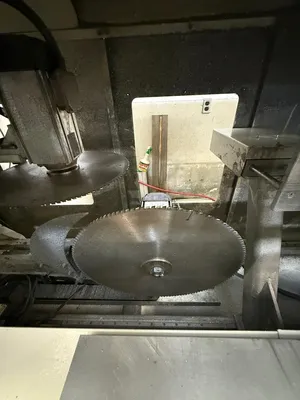

Blades: Vertical Ø 600 mm; Horizontal Ø 500 mm
Motors: 2x 2,800 rpm
Saw feed: Hydro-pneumatic, max stroke 970 mm
Vertical unit pivot: 45° outward, 60° inward
Horizontal unit tilt: +60° to −60°
Pivoting fence positions: 30° – 90° – 30°
Cutting width at 90°: 300 mm
Cutting width at 45°: 190 mm
Cutting width at 30°: 100 mm
Max workpiece height: 280 mm
Height adjustment: Hand-wheel with digital display
Depth stop: Adjustable with numeric display
Tilt adjustment readout: Digital display
Table/slide: Supporting table travels on linear guides
Clamping: Vertical and horizontal pneumatic clamping
Lubrication: Dual automatic venturi lubrication sets

Weight: 1225 kgs
Machine Dimensions: 12' x 7' x 6'ft
