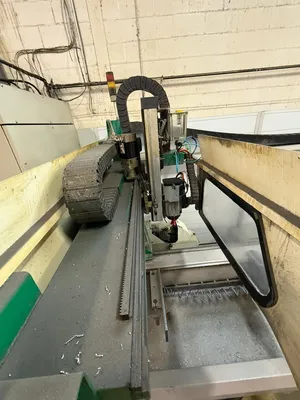

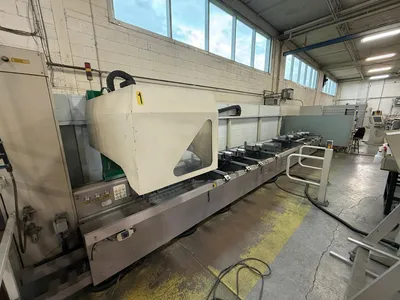

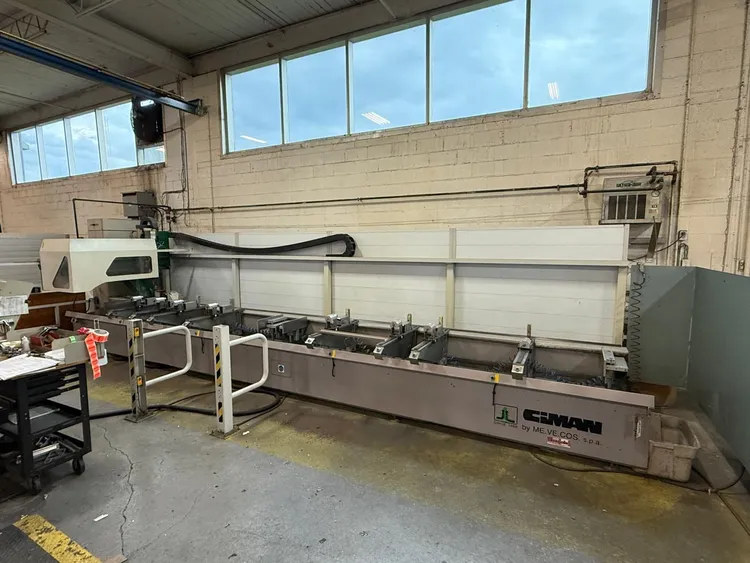

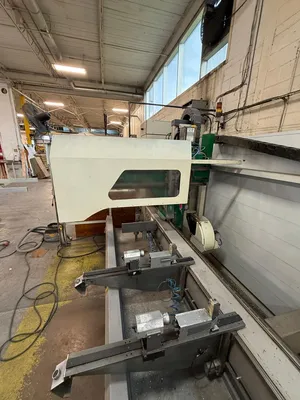

2001 CIMAN CENTRO MIZAK 6.7 4-AXIS CNC PROFILE MACHINING CENTER
Have one to sell?
ConditionUsed
1 available
2001 CIMAN CENTRO MIZAK 6.7 4-AXIS CNC PROFILE MACHINING CENTER

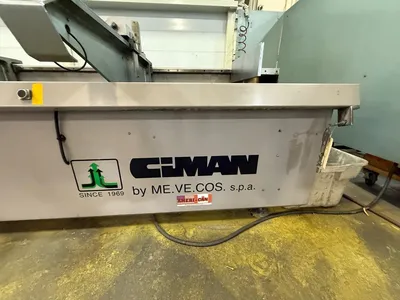

Manufacturer: Ciman
Model: Centro Mizak 6.7
Mfg Date: 2001
POWER: 400v, 60hz, 120 amp, 12 kw
Machine type: 4-axis CNC profile machining center
Axis Travels (Stroke)
X-axis travel: 6,700 mm
Y-axis travel: 650 mm
Z-axis travel: 400 mm
B-axis rotation (head tilt): ±100°
Axis/Feed Rates
X-axis feed: up to 80 m/min
Y-axis feed: up to 60 m/min
Z-axis feed: up to 30 m/min
Spindle
Speed range: 0–24,000 rpm
Tool holder: ISO 30
Main motor power: ~7.5 HP (approx. 5.5 kW)
Cooling: typically air-cooled
Tooling / ATC

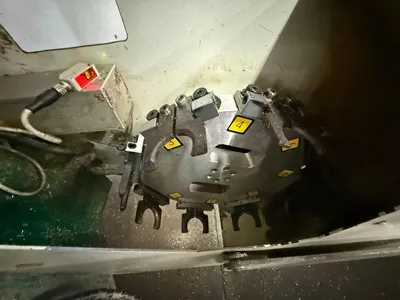

Automatic tool changer: 8 tool positions (linear rack)
Workholding & Software

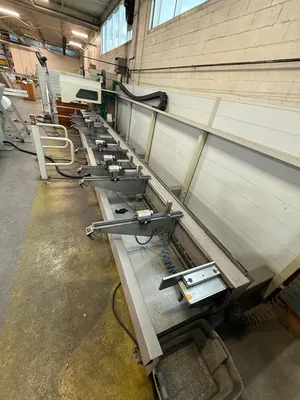

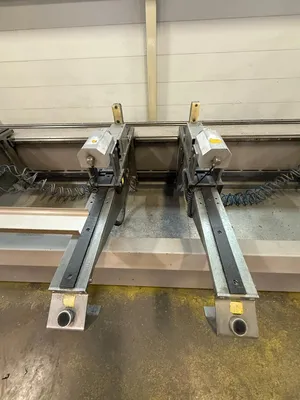

Pneumatic vices/clamps along X for profile/bar positioning

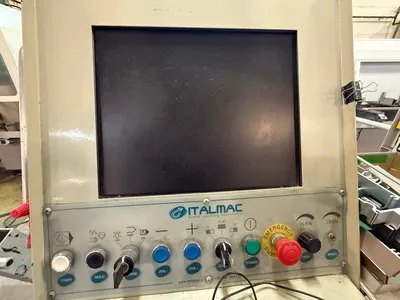

Control/software: SHX-based programming environment (with CNC controller)
General
Number of controlled axes: 4 (X, Y, Z, B)
Typical operations: drilling, milling, slotting, routing, tapping (as configured)
Intended materials: profiles/panels suited to the configured spindle and fixturing (commonly woodworking; some units set up for light alloys)
Weight: 4000 kg
Machine Dimensions: 27' X 6' X 8'
2001 CIMAN MIZAK 6.7 4-AXIS CNC PROFILE MACHINING CENTER
Manufacturer: Ciman
Model: Mizak 6.7
Mfg Date: 2001
POWER: 400v, 60hz, 120 amp, 12 kw
Machine type: 4-axis CNC profile machining center
Axis Travels (Stroke)
X-axis travel: 6,700 mm
Y-axis travel: 650 mm
Z-axis travel: 400 mm
B-axis rotation (head tilt): ±100°
Axis/Feed Rates
X-axis feed: up to 80 m/min
Y-axis feed: up to 60 m/min
Z-axis feed: up to 30 m/min
Spindle
Speed range: 0–24,000 rpm
Tool holder: ISO 30
Main motor power: ~7.5 HP (approx. 5.5 kW)
Cooling: typically air-cooled
Tooling / ATC
Automatic tool changer: 8 tool positions (linear rack)
Workholding & Software
Pneumatic vices/clamps along X for profile/bar positioning
Control/software: SHX-based programming environment (with CNC controller)
General
Number of controlled axes: 4 (X, Y, Z, B)
Typical operations: drilling, milling, slotting, routing, tapping (as configured)
Intended materials: profiles/panels suited to the configured spindle and fixturing (commonly woodworking; some units set up for light alloys)
Weight: 4000 kg
Machine Dimensions: 27' X 6' X 8'
