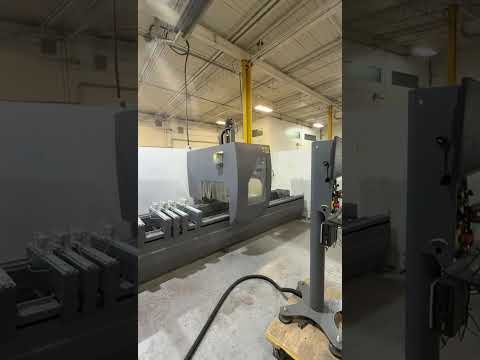

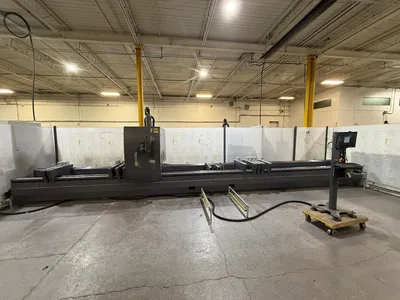

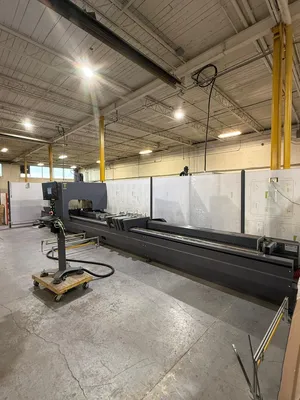

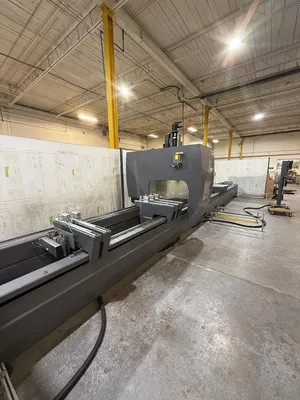

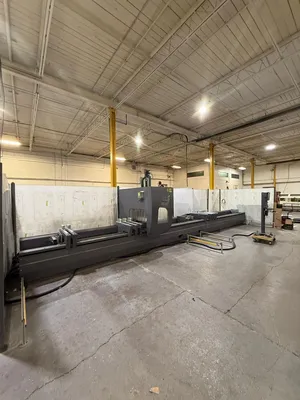

2020 ITALMAC PEGASO 9MT 4A 4-AXIS CNC MACHINING CENTER
Have one to sell?
ConditionUsed
1 available
2020 ITALMAC PEGASO 9MT 4A 4-AXIS CNC MACHINING CENTER
Manufacturer: Italmac
Model: Pegaso 9MT 4A
Mfg Date: 2020/02

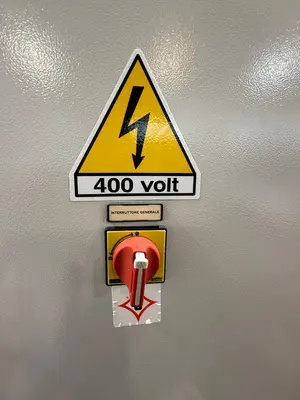

POWER:400 volt 60 hz 15 kw 20 amp
Machine type: 4-axis CNC machining center for aluminum and light alloy

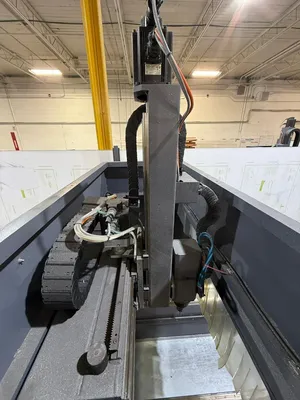

Travel (Axis Stroke)
X-axis: 9,470 mm
Y-axis: 1,325 mm
Z-axis: 600 mm
A-axis rotation (around X): –120° to +120°
C-axis rotation (around Z): –240° to +240°
Axis Speeds
X-axis: 100 m/min
Y-axis: 60 m/min
Z-axis: 30 m/min

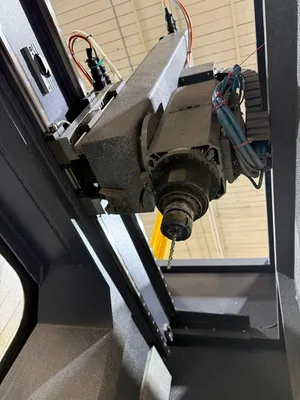

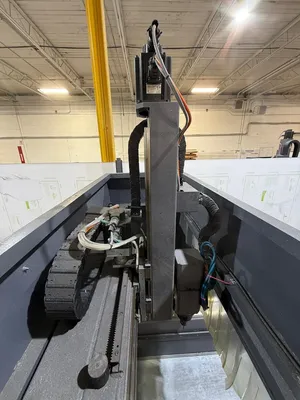

Spindle
Tool taper: HSK F63
Max spindle speed: 24,000 RPM
Cooling: liquid-cooled

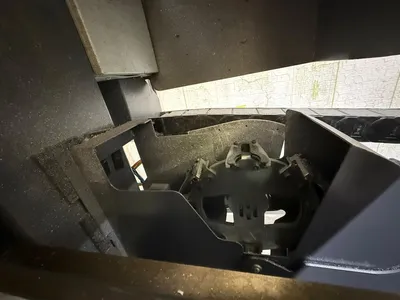

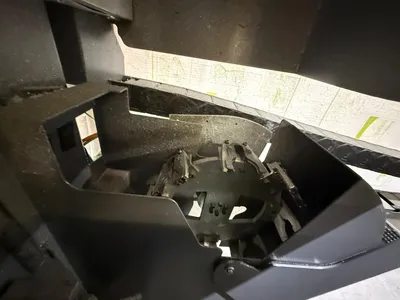

Tool Magazine
Standard tool positions: 15
Automatic tool changer type: linear rack

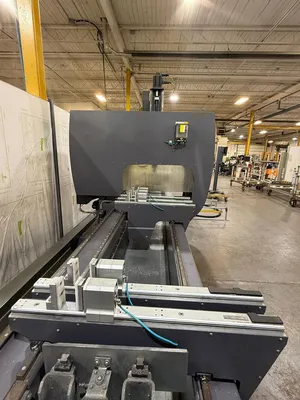

Clamping and Work Area
Designed for aluminum and alloy profiles, large extrusions, and light steel work

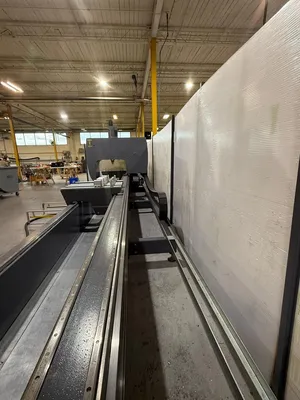

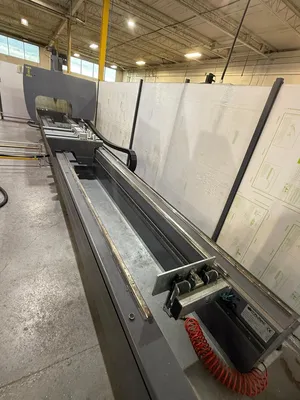

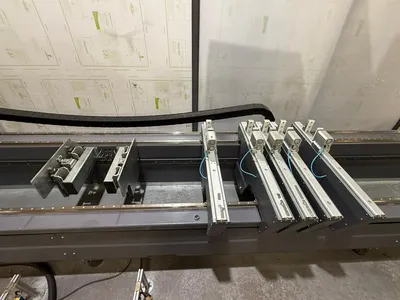

Pneumatic clamps along the X-axis bed, programmable repositioning
Capable of processing bars or profiles up to 9 m

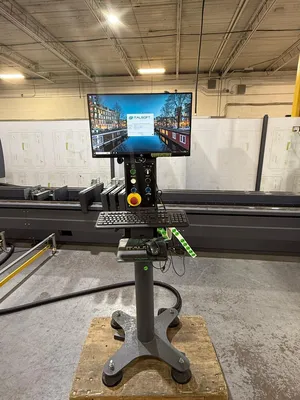

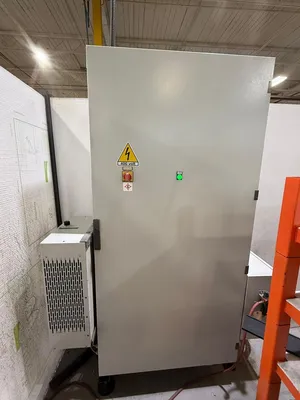

Control system: Siemens control
Weight: 4000 kg
Machine Dimensions: 33' x 6' x 8.5'
