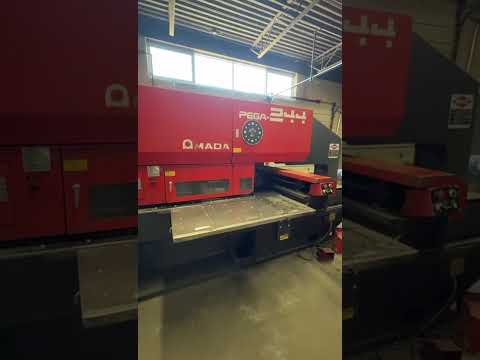

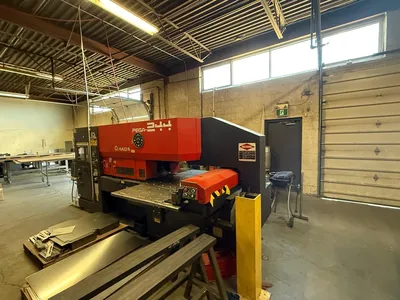

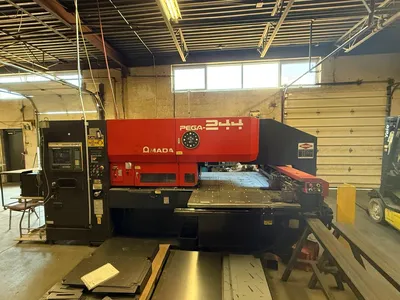

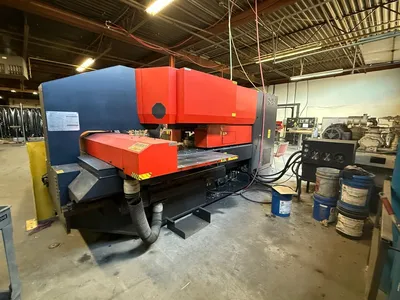

1990 AMADA PEGA 244 20 TON TURRET PUNCH PRESS
Manufacturer: Amada
Model: PEGA 204040
Mfg Date: 1990
POWER: 460v/400v/230v, 50/60hz, 3ph
Punching Force (Capacity): 20 Tons (178 kN)
No. of Turret Stations: 24
Throat Depth: 40'' (1016 mm)
Max Sheet Size (with reposition): 50'' × 100'' (1270 × 2540 mm)
Max Material Thickness: 0.25'' (6.35 mm) mild steel
Max Hit Rate: ~300 Hits/min (depending on stroke)
Turret Rotation: Programmable, bi-directional

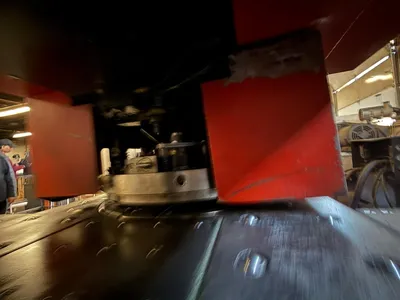

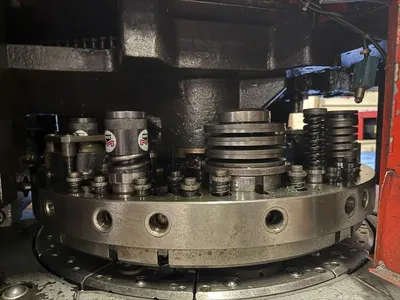

Tool Type: Amada thick-turret tooling system
Turret Index Stations: 2 Auto-index stations (standard)
Table Type: Ball transfer table with brush assist
Accuracy (Positioning): ±0.004'' (±0.1 mm) typical
Repeatability: ±0.002'' (±0.05 mm)
Work Clamp Quantity: 2
Tooling System: 1¼''–3½'' Amada thick-turret tools
Ram Drive: Crank / hydraulic hybrid
Frame Type: O-frame fabricated steel
Turret Drive: Worm-gear electric indexing
Lubrication: Centralized automatic lube system
Air Requirement: 80 psi (5.5 bar) clean dry air
CNC Control: Fanuc 0P Model B
Operator Interface: Amada Amadan-04PC control panel
Memory Storage: Built-in NC storage and external RS232 interface
Display: CRT screen, monochrome
Axis Control: X, Y, T, C coordinated motion
Program Input: Manual, RS232 serial, or punch tape (legacy)
Weight: 17,000 lbs
Machine Dimensions: 14' x 11' x 7'ft
