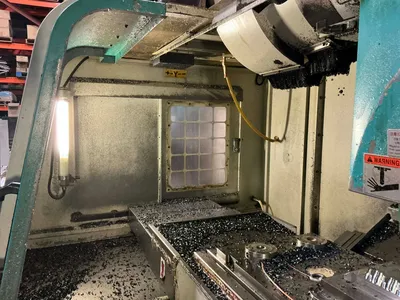

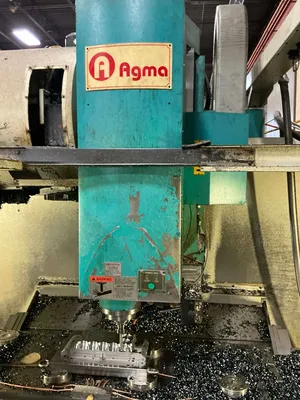

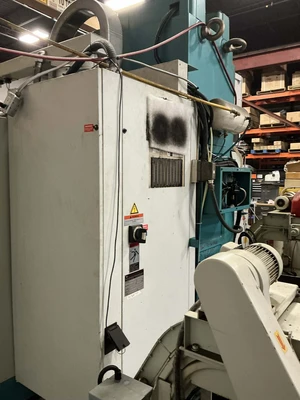

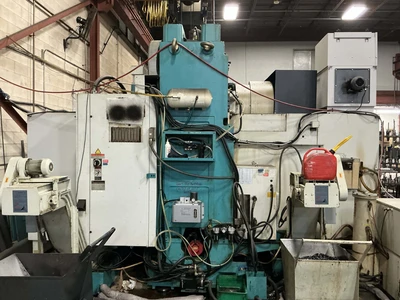

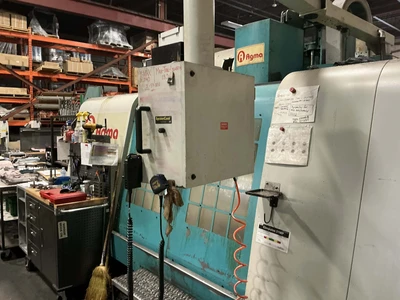

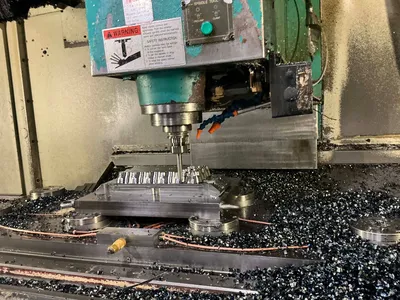

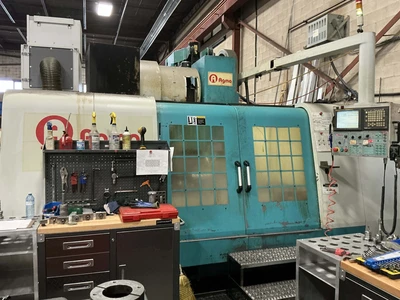

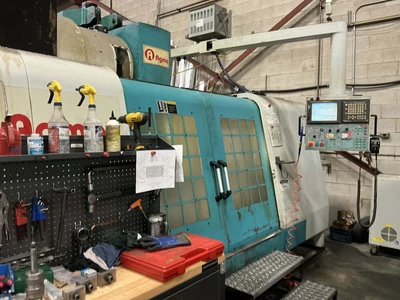

2007 AGMA VMC-158 VERTICAL MACHINING CENTER

Description

2007 AGMA VMC-158 VERTICAL MACHINING CENTER

Manufacturer: Agma
Model: VMC-158
Mfg Date: 2007

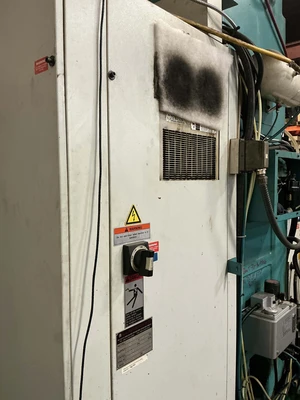

POWER: 220v, 60hz, 3ph

Hours

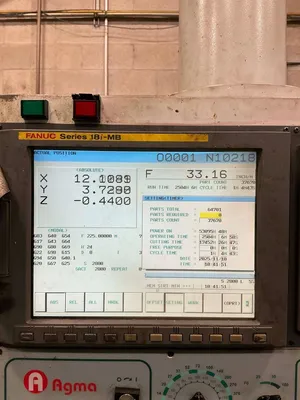

Power On Time: 53,959 hours
Operating Time: 25,804 hours
Cutting Time: 17,524 hours
Free Purpose (Idle): 8,280 hours
Part Count: 37,670 parts

Type: Vertical Machining Center

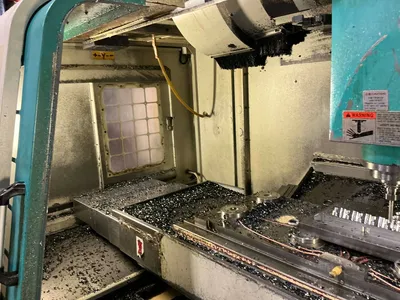

Construction: Box ways on X, Y, Z
X Travel: 59.06 in (1500 mm)
Y Travel: 31.50 in (800 mm)
Z Travel: 34.5 in (700 mm)
Table Size: 66.93 × 32.09 in (1700 × 815 mm)
Max Table Load: 4400 lb (2000 kg)
T-Slots: 5 slots, 0.71 in (18 mm) wide, 5.91 in (150 mm) pitch
Spindle Speed: 10,000 rpm belt drive
Spindle Taper: CAT40
Spindle Motor: 15/20 HP
Spindle Nose to Table: 7.87–35.43 in (200–900 mm)
Rapid Traverse X/Y: 590 ipm (15 m/min)
Rapid Traverse Z: 472 ipm (12 m/min)
RAPID FEEDRATE
X: 12000
Y: 12000
Z: 12000
RAPID OVERRIDE FEED
X: 450
Y: 450
Z: 450
MAX CUT FEEDRATE: 10000

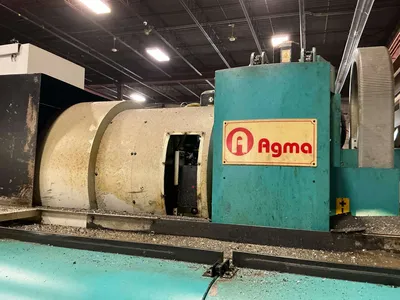

Tool Changer Type: Arm type
Tool Magazine Capacity: 24 tools

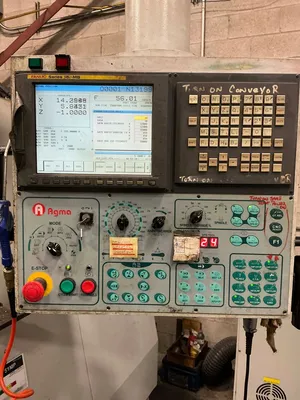

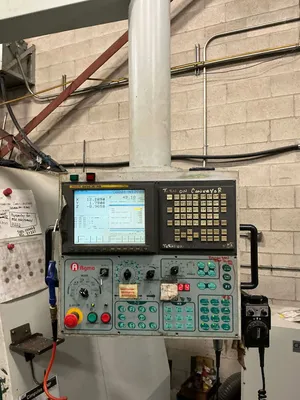

Control: FANUC Series 18i-MB

***NO TOOLING INCLUDED***
BRAND NEW AUGER
NEWLY REBUILT AUGER MOTOR
LINEAR GUIDEWAYS

Weight: 33,000 lbs
Machine Dimensions: 179'' x 150'' x 131'' in
