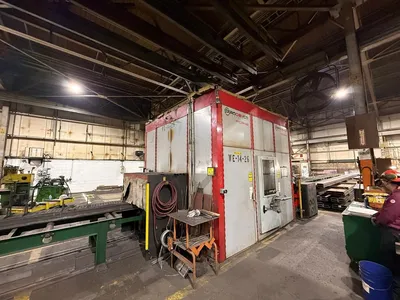

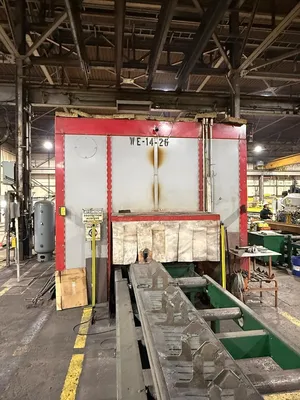

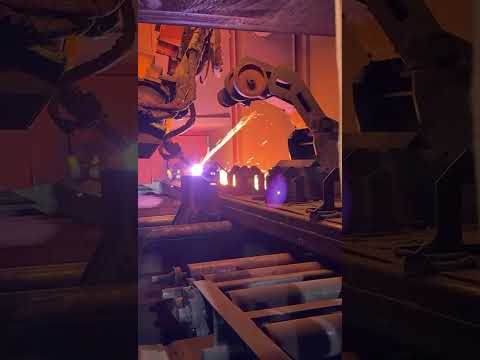

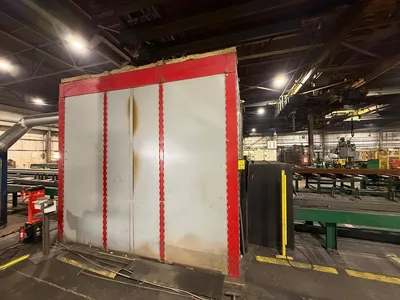

2014 PRODEVCO PCR42 7-AXIS ROBOTIC PLASMA STEEL CUTTING SYSTEM
Manufacturer: Prodevco
Model: PCR42
Mfg Date: 2014
POWER: 460v, 60hz, 3ph
Machine Type
Advanced robotic plasma steel cutting system
Handles standard structural steel and round tubes on the same platform

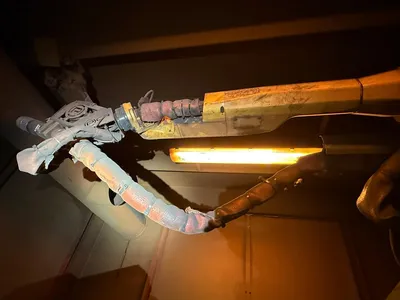

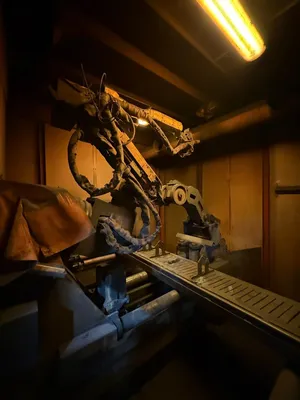

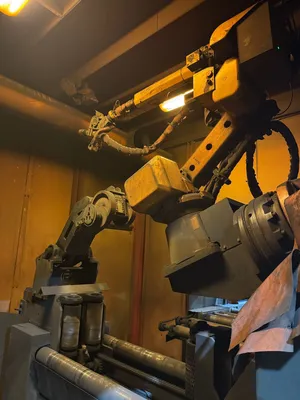

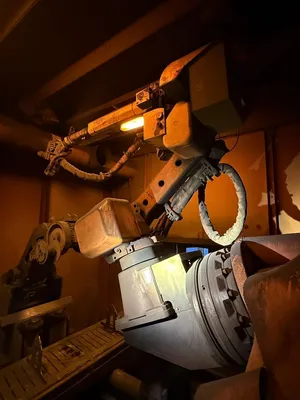

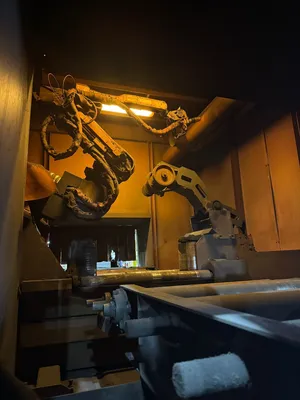

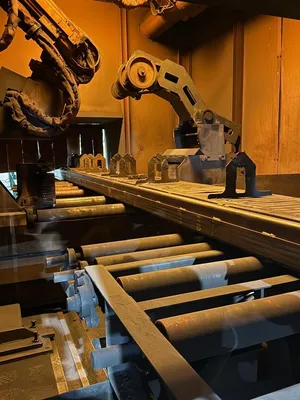

7-axis robotic cutting system
Non-contact 3D vision measuring system
Designed for precision, accuracy, and minimal setup time
Profiles & Material Size Capacity
Maximum Cutting Angle
Bevel / compound angle cuts up to 50°
H-Beams
Minimum: 4'' W × 4'' H
Maximum: 40'' W × 16'' H
Channels
Minimum: 3'' W × 1.25'' H
Maximum: 40'' W × 16'' H
Angles
Minimum: 2'' × 2''
Maximum: 8'' × 8''
HSS (Square/Rectangular Tubing)
Minimum: 2'' × 2''
Maximum: 24'' W × 20'' H
Minimum Material Length
7 feet
Maximum length: unlimited with conveyor system
Plasma Power & Cutting Thickness

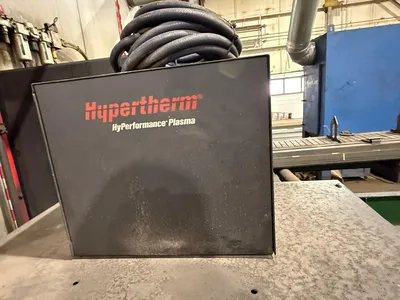

Hypertherm XPR260XD
Pierce capacity: 1-3/4''
Edge-start capacity: 3''
Supported Cutting Operations
Copes and notches
Holes and slots
Compound angle cuts
Weld preparation beveling up to 50°
Beam splitting / cut-to-length
Scribing, pop marks, letters, layout markings
4-face processing on beams, channels, angles, HSS
Full rotation control for round tube cutting

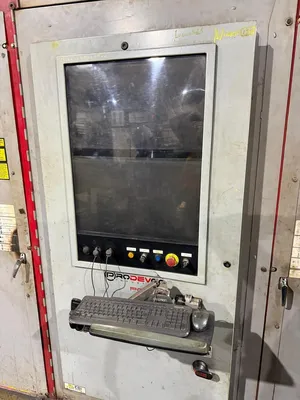

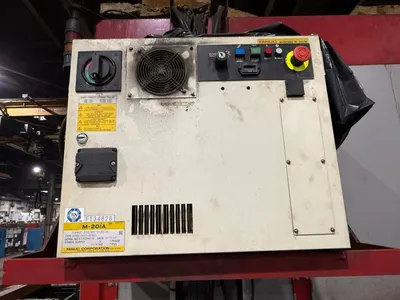

Control: Fanuc M-20iA

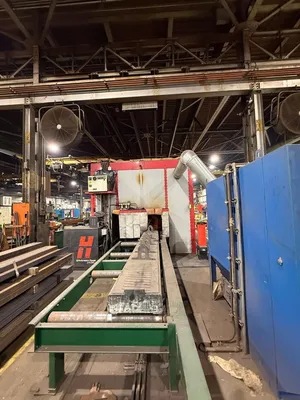

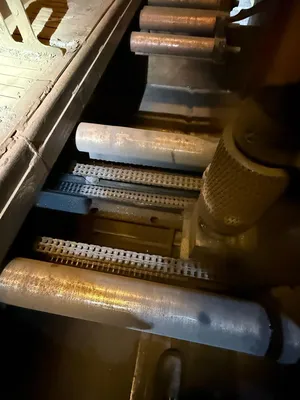

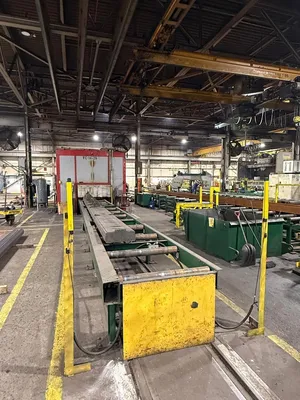

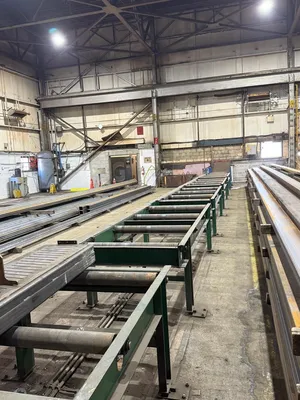

Infeed conveyor Length: 64'ft

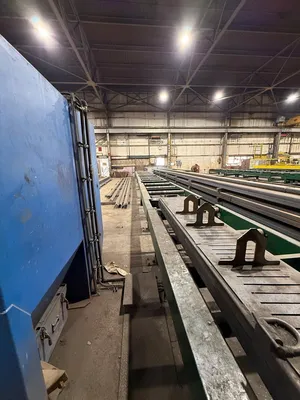

Outfeed conveyor Length: 30'ft
Infeed/Outfeed Conveyor Width: 50'' in
