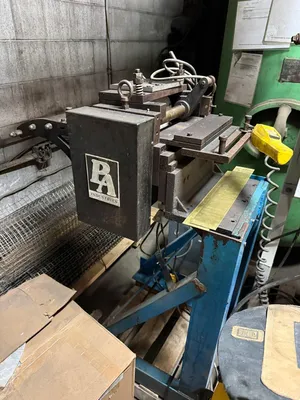

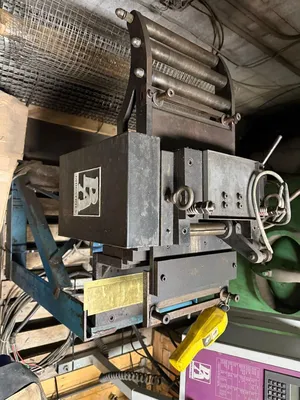

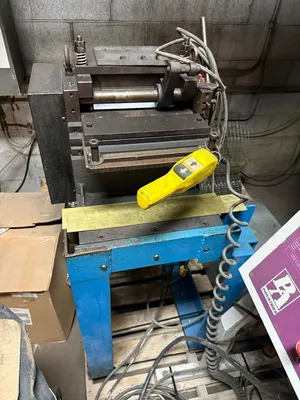

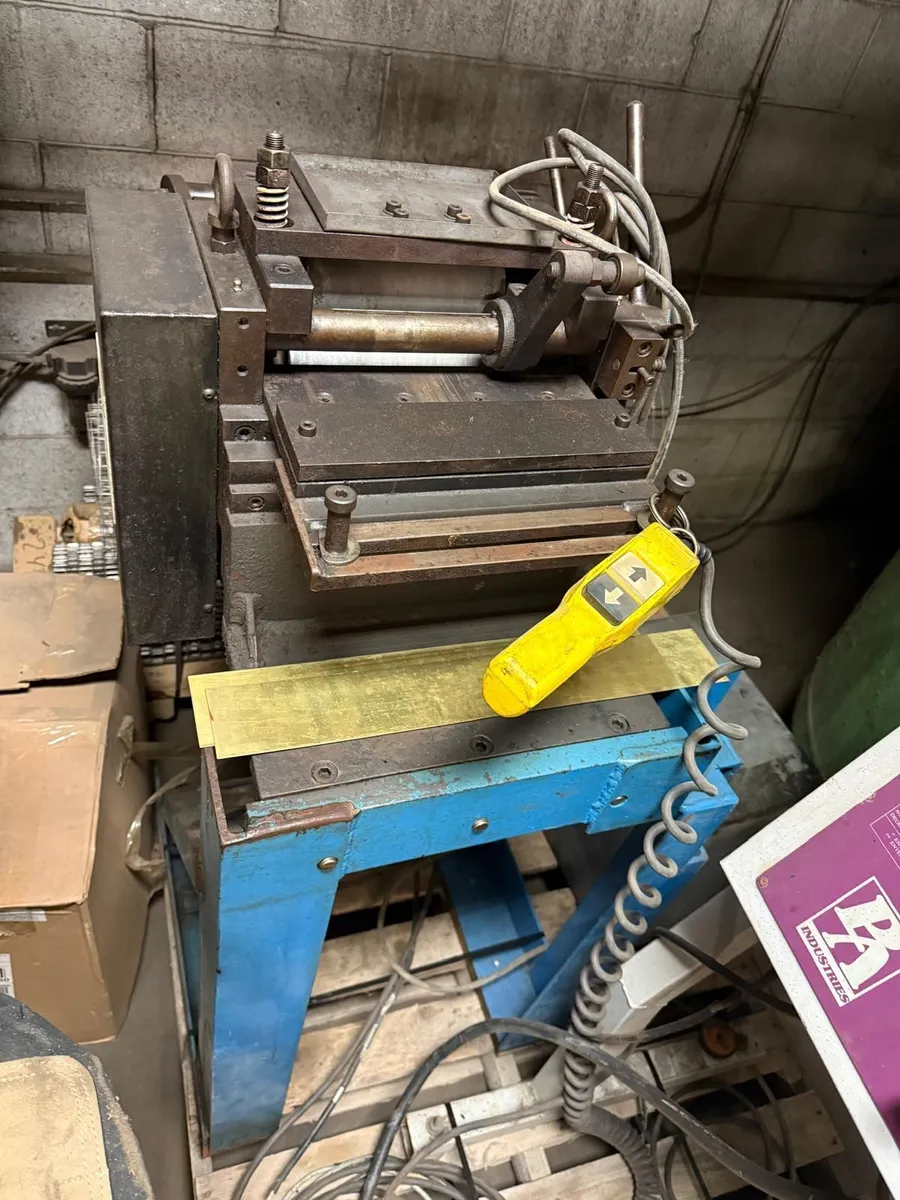

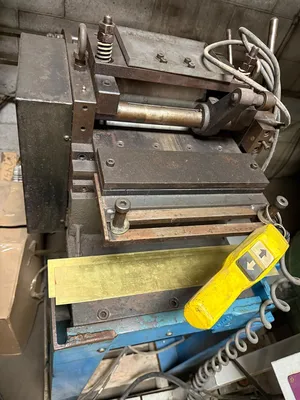

PA ULTRA ADVANTAGE SERVO ROLL FEED SYSTEM

Description

PA ULTRA ADVANTAGE SERVRO ROLL FEED SYSTEM

Manufacturer: PA Industries
Model: Ultra Advantage

POWER: 220v, 60hz,1ph

Feed System Specifications
Jog / Motion Parameters
Jog Speed:
10.0 in/s
254 mm/s

Jog Acceleration:
100 in/s²
2540 mm/s²

Jog Deceleration:
10 in/s²
254 mm/s²

Positioning / Encoder Settings
In Position Window:
0.002 in
0.05 mm

Proportional Adjust Step:
0.0001 in
0.0025 mm

Counts / Unit (Std):
12795.00
Counts / Unit (Hi-Res):
25471.00

Direction:
CCW and CW available
PID & Motion Control

P-Gain:
200 (in both inch + metric)

I-Gain:
1200 (inch)
12000 (metric)

D-Gain:
200 (inch)
200 (metric)

Feed Length Settings
Back Length:
0.000 – 999.999 in
0.00 – 9999.99 mm

Max Feed Length:
999.999 in
9999.99 mm

Speed / Acceleration
Speed (Std):
120 in/s
3048 mm/s

Acceleration (Std):
200 in/s²
5080 mm/s²

Deceleration (Std):
400 in/s²
10160 mm/s²
