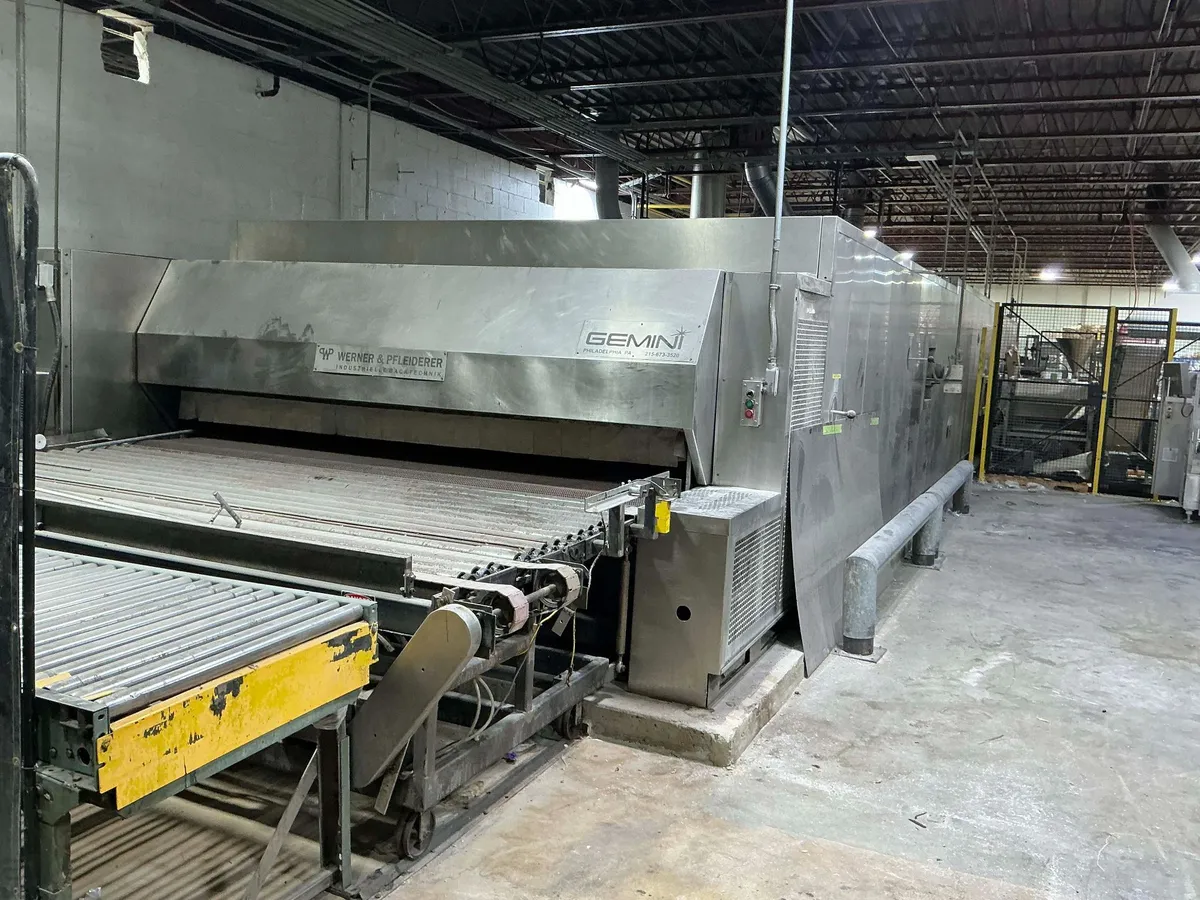

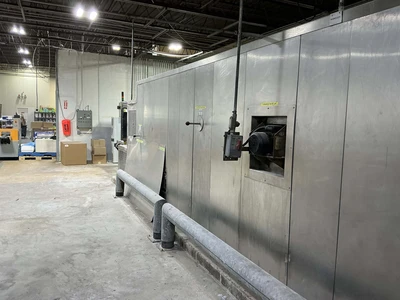

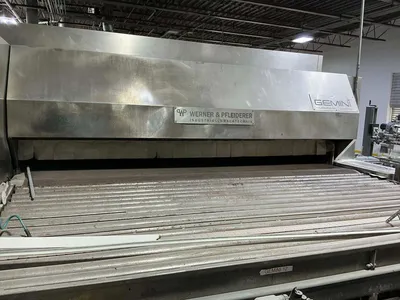

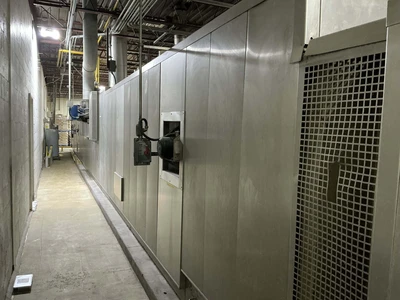

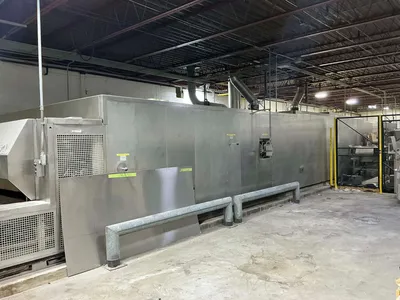

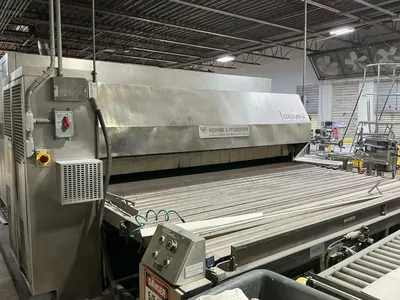

2003 WERNER & PFLEIDERER ECOTHERM AUTOMATIC TUNNEL OVEN

Description

2003 WERNER & PFLEIDERER ECOTHERM AUTOMATIC TUNNEL OVEN

Manufacturer: Werner & Pfleiderer
Model: NUN-PLUS 3300/18
Mfg Date: 2003

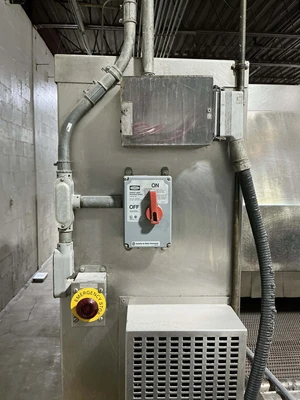

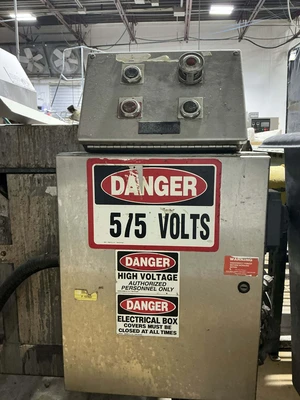

POWER: 575v, 60hz, 3ph

Type & Configuration
Type of Oven: NUN-PLUS 3300
Operating Side: Left

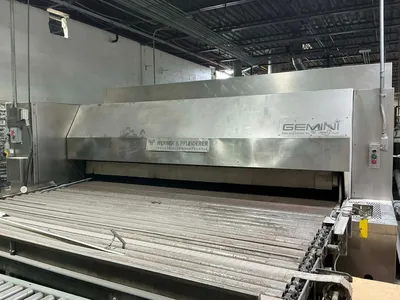

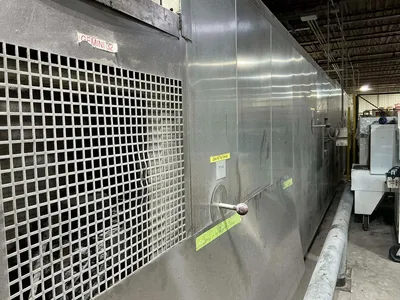

Oven Style: Ecotherm tunnel oven

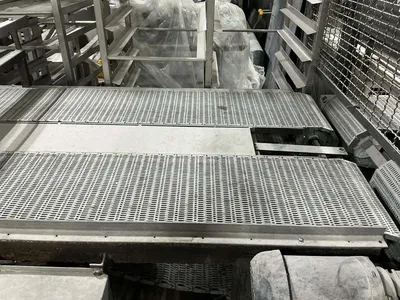

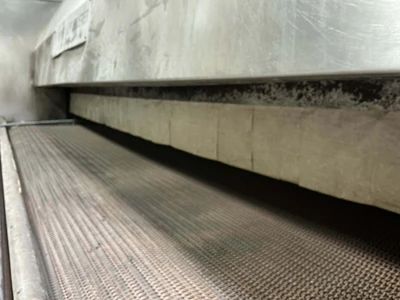

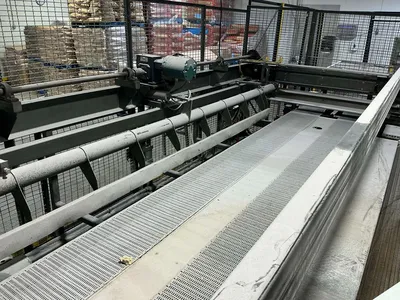

Band Type: Wire-mesh band

Burner / Heating

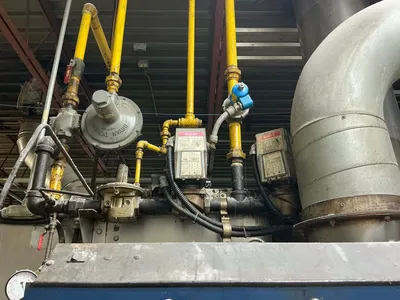

Fuel Type: Gas

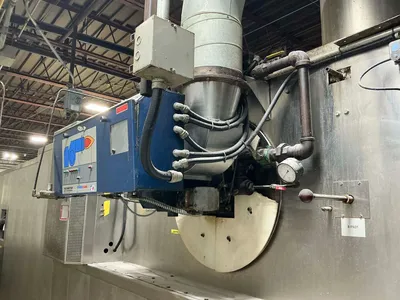

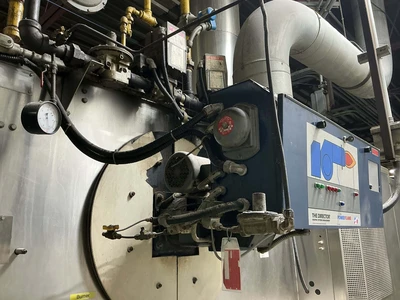

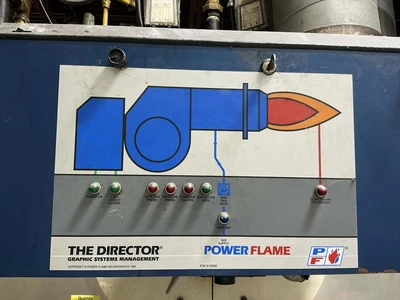

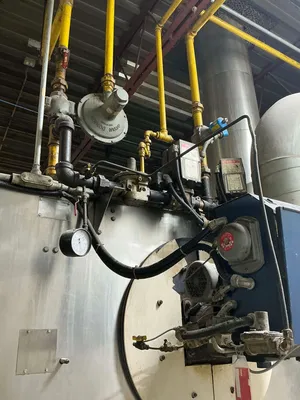

Type of Burner / Supplier: Power Flame
Temperature Range: Approx. 70°C – 350°C
Number of Burners: 1
Number of Steam & Heating Zones: 1
Combustion Air Fan: Not integrated into burner
Number of Steam Discharge Fans: 3

Control Zones
Number of Control Zones: 3
Bake Time (min): 8 – 48 minutes

Steam

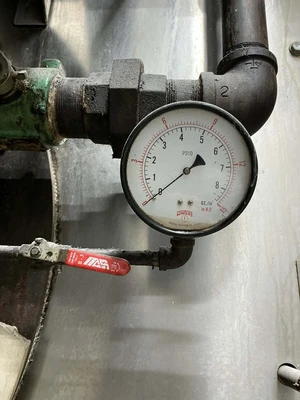

Steam Connection Requirement: Max. 0.5 bar above atmospheric
Steam Consumption: 240 kg/h

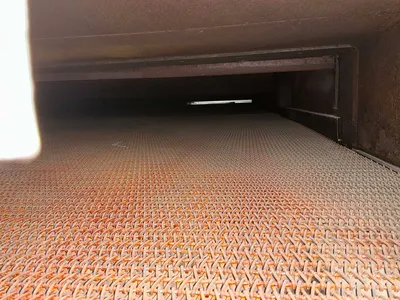

Baking Chamber
Length of Bake Chamber: 18,000 mm + 808 mm (61' ft)
Width of Bake Chamber: 3,300 mm
Height of Bake Chamber: 200 mm

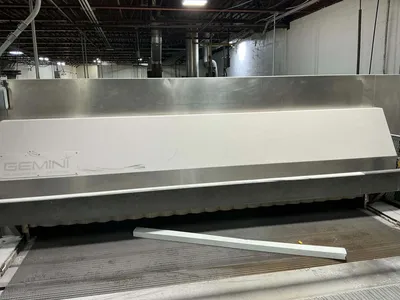

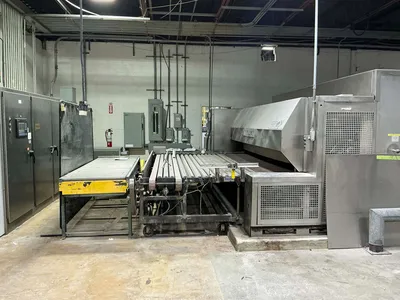

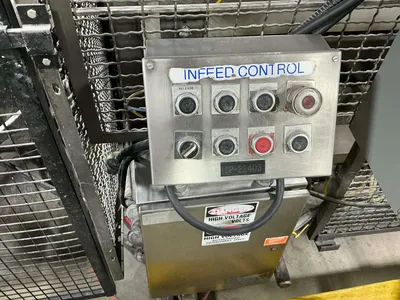

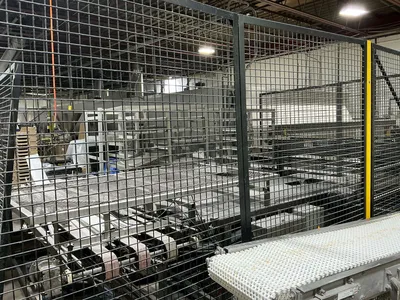

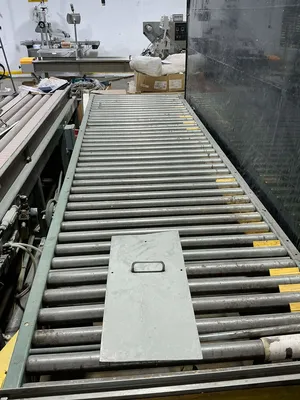

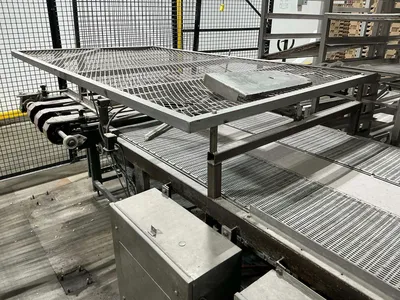

Feeding & Discharge Sections

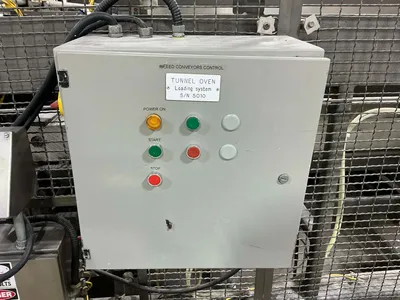

Length of Feeding Section: 1,200 mm

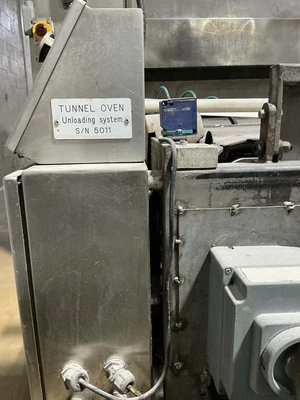

Length of Discharge Section: 1,650 mm

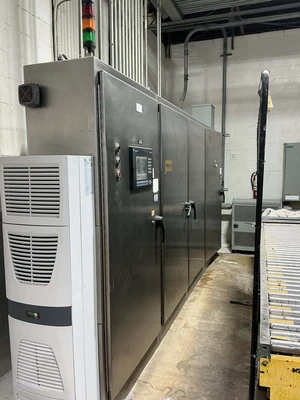

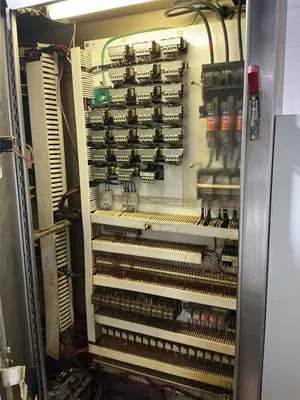

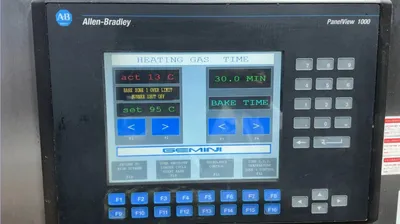

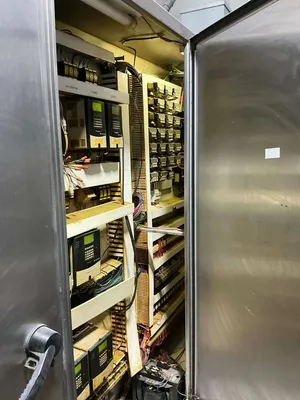

Interface: Allen Bradley Panelview 1000

Machine Dimensions: 65' x 15' x 8' ft
