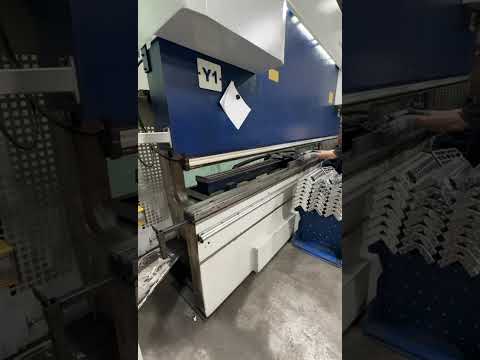

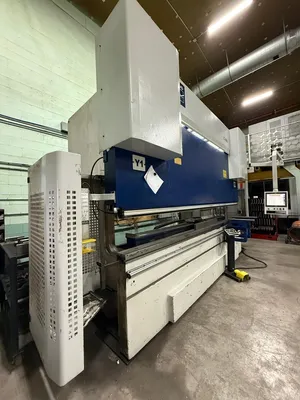

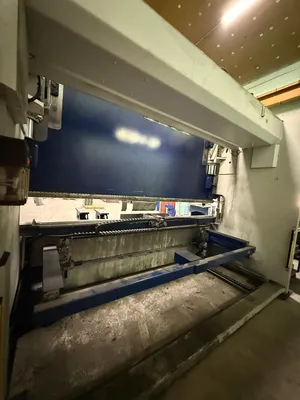

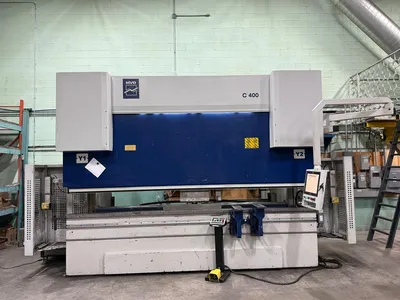

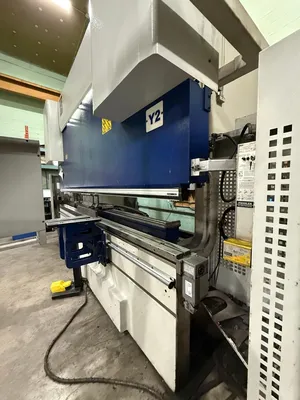

2019 MVD C400 14' X 400 TON PRESS BRAKE
Have one to sell?
ConditionUsed
1 available
2019 MVD C400 14' X 400 TON PRESS BRAKE
Manufacturer: MVD
Model: C400-4300
Mfg date: 2019
POWER: 575v, 60hz, 3ph
GENERAL
Press Force: 400 tons
Bending Length: 4,060 mm (160in)
Bed Length (table length): 4,300 mm (169in)
Distance Between Frames / Columns: 3,550
RAM & FRAME
Stroke (ram travel): 305 mm
Daylight (open height): 533 mm
Throat Depth: 406 mm
Ram Guides: Precision linear guiding system

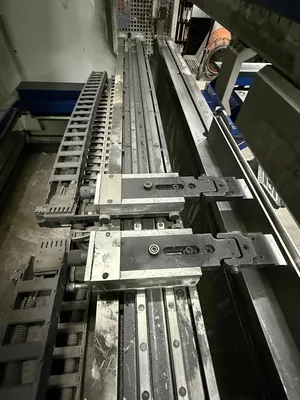

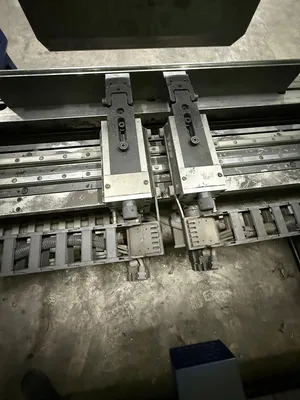

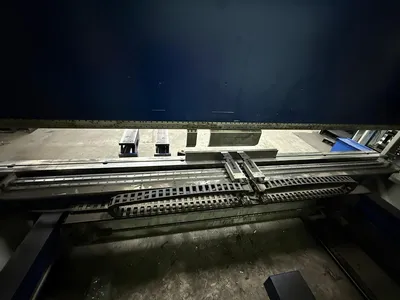

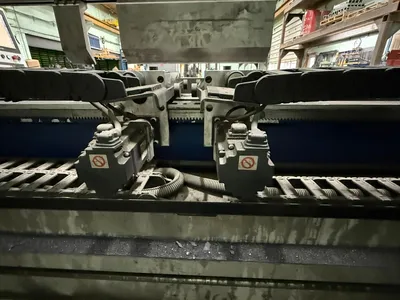

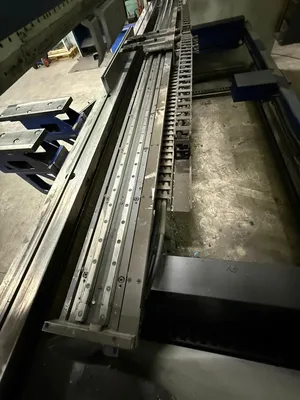

BACK GAUGE
CNC Back Gauge Axes: 4-axis (X, R, Y1, Y2)
X-Axis Travel: Approx. 750 mm
R-Axis Travel: Approx. 250 mm
Back Gauge Accuracy: ±0.03 mm

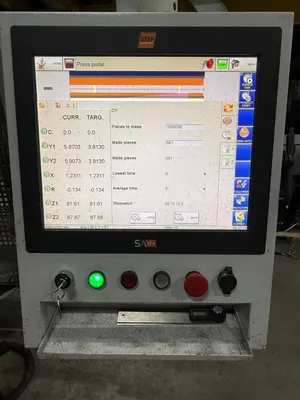

CNC CONTROL
ESA S650 touch screen CNC
Auto bending calculations and 2D programming
Crowning controlled through CNC

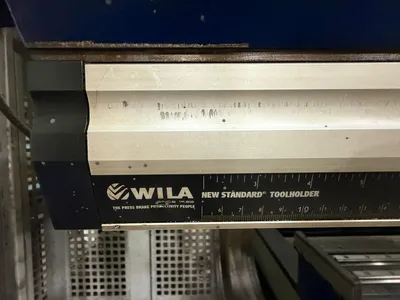

TOOLING
Top tooling only (14'ft)
WILA BIU-231
Angle: 28°
Radius: 3 mm (R3)
Height: 200 mm
Segments included: 515 / 20 / 40 / 30 / 25 / 35 / 100 mm
SPEEDS
Approach Speed: ~100 mm/s
Working/Bending Speed: ~8 mm/s
Return Speed: ~80 mm/s
*8x Punch Pieces Included*
Weight: 25,000 kg
Machine Dimensions: 240'' x 105'' x 133''in
