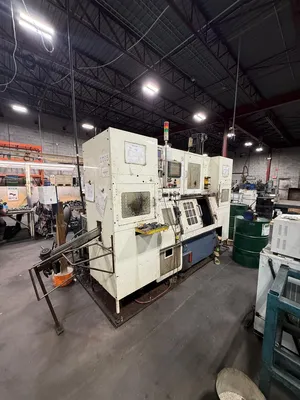

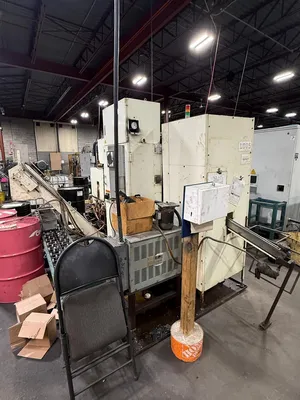

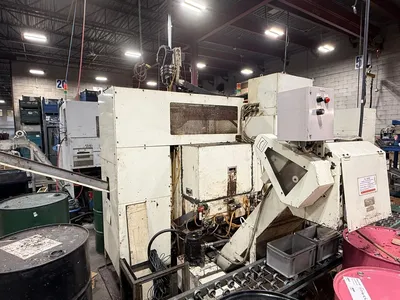

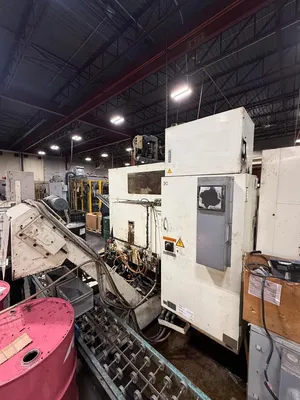

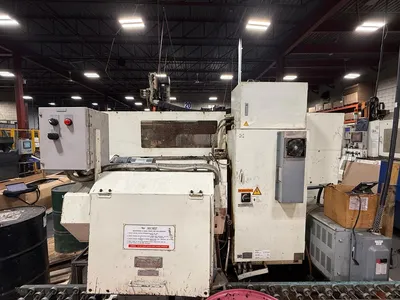

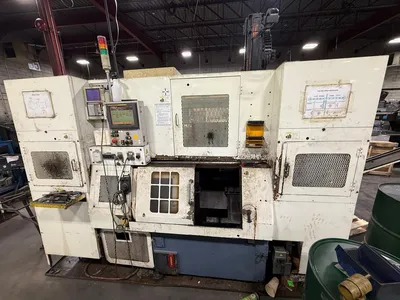

2005 FUJI FS4 CNC LATHE
Have one to sell?
ConditionUsed
1 available
2005 FUJI FS4 CNC LATHE

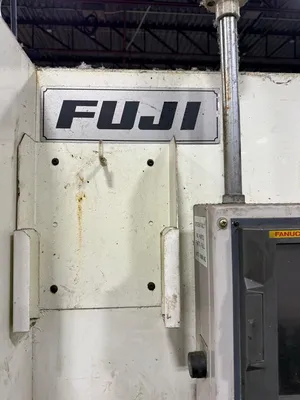

Manufacturer: Fuji
Model: FS4
Mfg Date: 2005

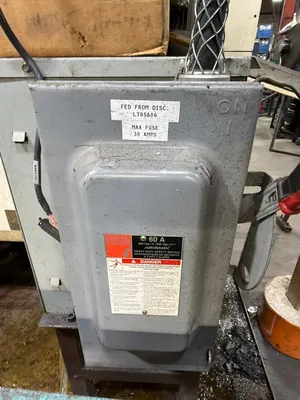

POWER: 200v, 60hz, 3ph

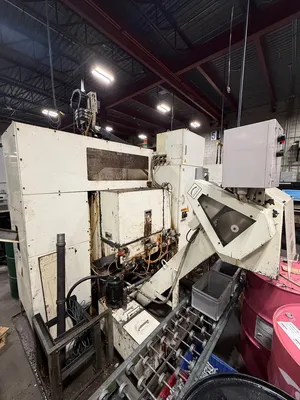

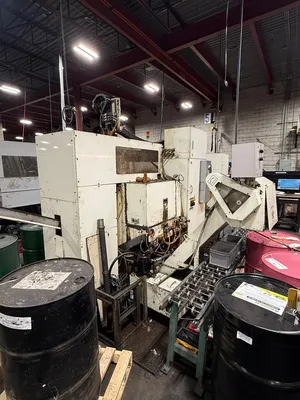

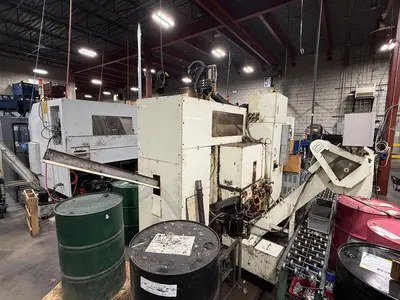

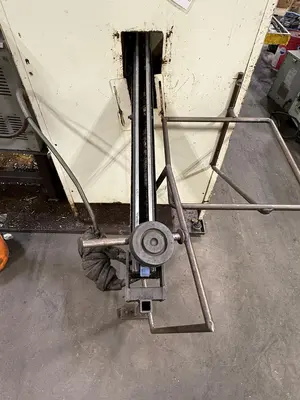

Loader: Gantry (robotic loader + infeed/outfeed conveyors + chip chute)

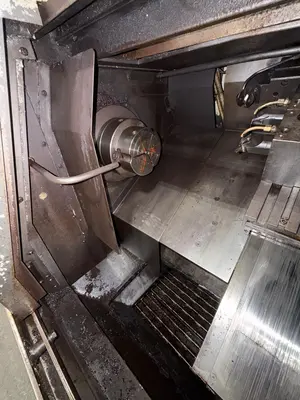

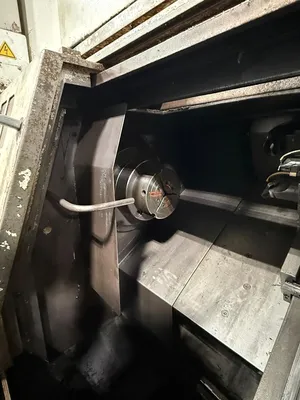

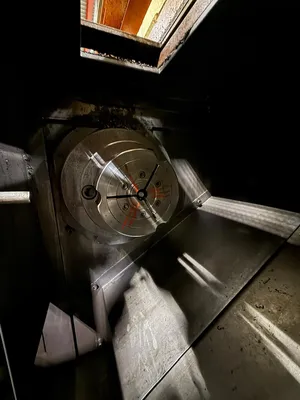

Chuck size(3 jaw): 6"" (165 mm)
Capacity & Work Envelope
Max turning diameter (with 6"" chuck): 150–200 mm
Max turning length: 100 mm
Spindles
Spindle speed: 4,000 RPM
Spindle motor power: 11 kW
Axis Travel & Motion
X-axis travel: 120 mm
Z-axis travel: 200 mm
Rapid traverse X-axis: 20 m/min
Rapid traverse Z-axis: 24 m/min
Tool repeatability: ±0.002 mm – ±0.005 mm

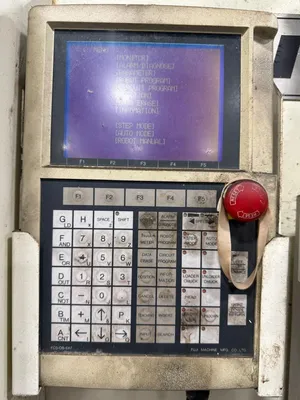

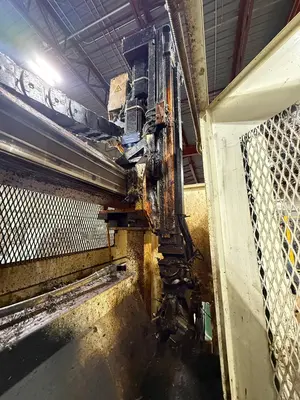

Gantry Loader / Automation System
Loader type: Gantry-style robotic loader (for infeed & outfeed of parts)
Typical gripper load capacity: 5–10 kg (suitable for small/medium turned parts)
Cycle time (load/unload): 6–9 seconds per part

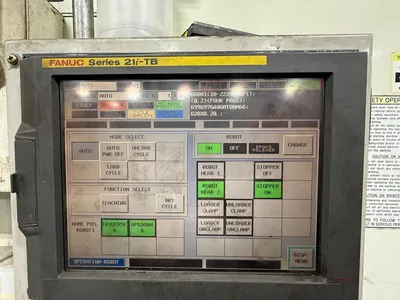

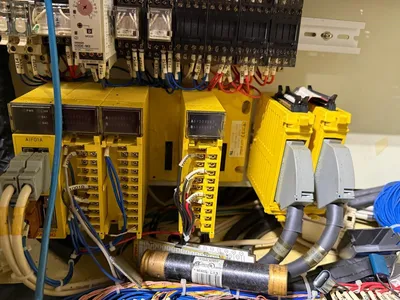

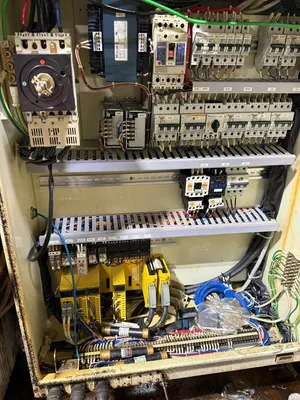

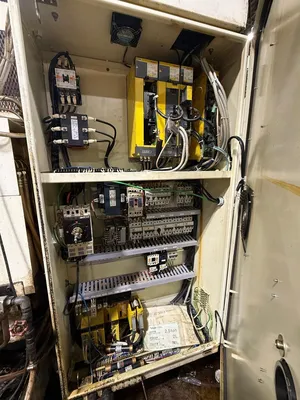

Control: Fanuc Series 21i-TB
*Includes JVC Transformer*
Weight: 2,500 lbs
Machine Dimensions: 93'' x 180'' x 120''in
