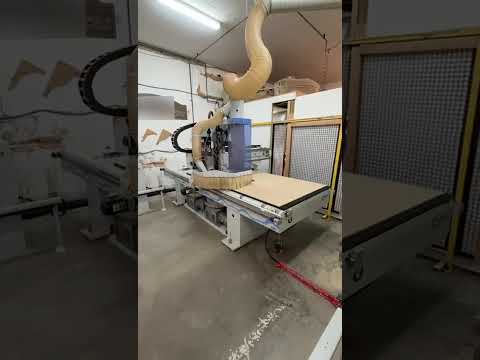

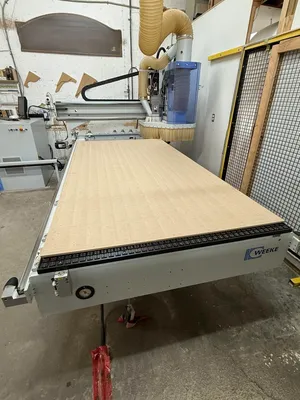

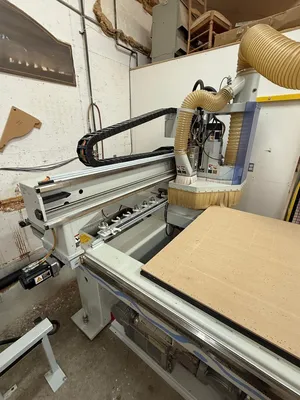

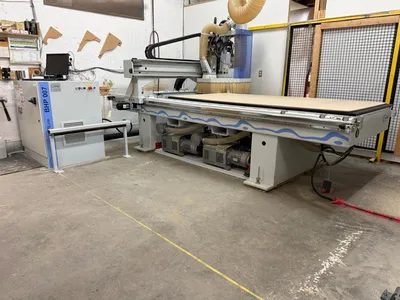

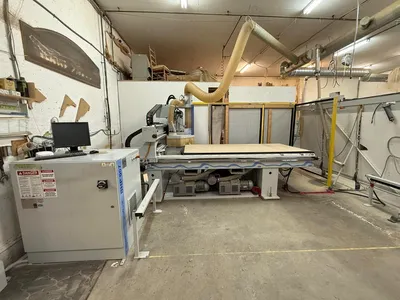

2011 WEEKE PROFI BHP 007 CNC ROUTING CENTRE

Manufacturer: Weeke
Model: Profi BHP 007
Mgf Date: 2011

POWER: 480V, 60HZ, 3PH

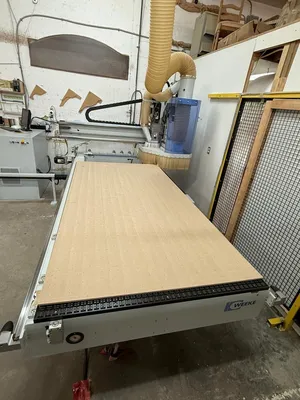

WORKPIECE CAPACITY

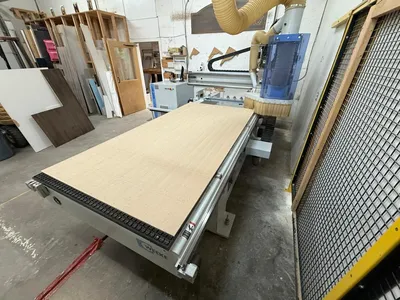

Table size: 4' x 8'ft
Maximum Panel Length: 3,050 mm (96")
Maximum Panel Width: 1,250 mm (49")
Workpiece Thickness: 8 – 60 mm
Maximum Workpiece Weight: 50 kg (110 lb)

DRILLING UNIT
Vertical Drill Spindles: 9
Horizontal Drill Spindles:
X Direction: 2
Y Direction: 2
Spindle Speed: 6,000 RPM
Drill Spindle Power: 1.5 kW

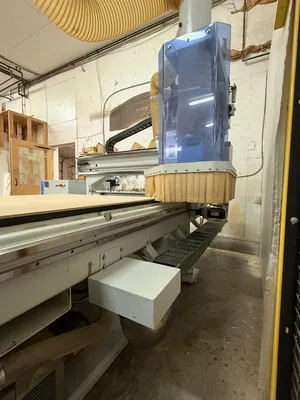

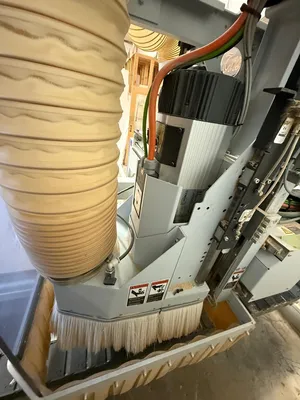

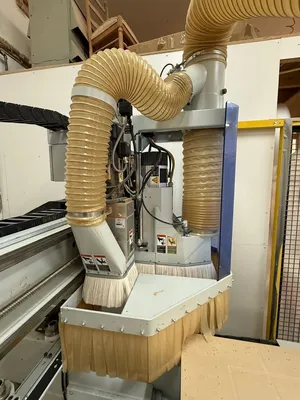

ROUTING / MILLING
Routing Spindle Power: 3.5 – 4.0 kW
Routing Spindle Speed: up to 18,000 RPM

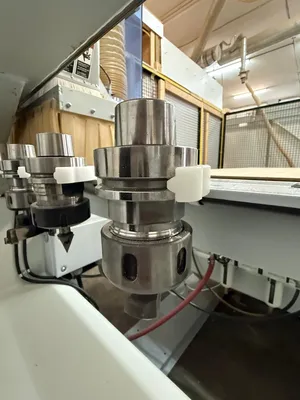

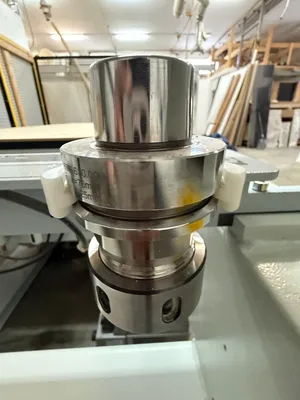

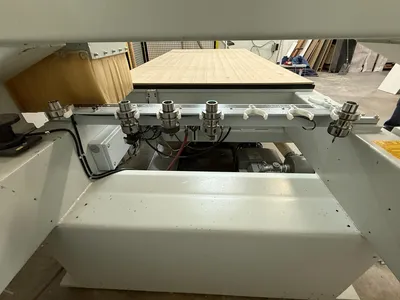

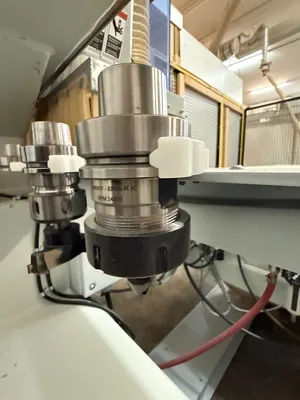

Tool Holder: ISO 30
Tool Change: Automatic

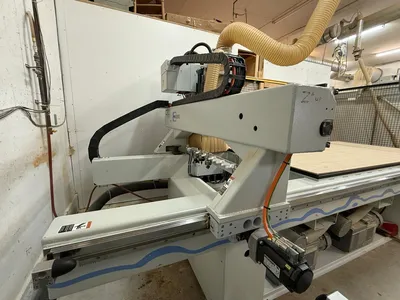

AXES & FEED
CNC Axes: X, Y, Z
Positioning Accuracy: approx. ±0.1 mm
Repeatability: approx. ±0.05 mm

CLAMPING & HANDLING

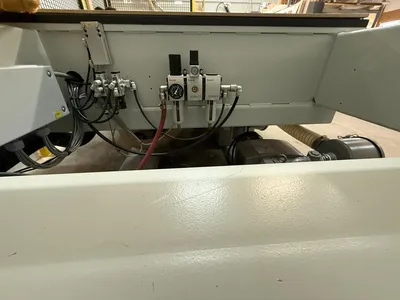

Material Positioning: Pneumatic Clamps
Reference System: Automatic Panel Alignment
Panel Support: Phenolic / Aluminum Support Rails

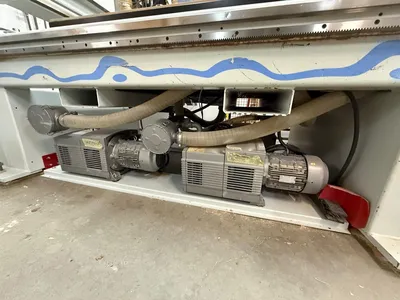

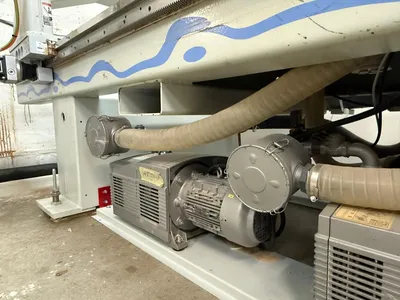

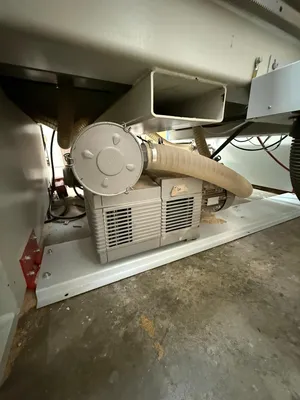

Becker VT 300 Vacuum Pump (X2)
Type: Dry-running (oil-less) rotary vane vacuum pump
Rated Airflow: 300 m³/h
Rated Airflow: 174 SCFM
Maximum Vacuum: 24–25 inHg
Ultimate Vacuum: −850 mbar
Motor Power: 6.4–7.5 kW (8.5–10 HP)
Motor Speed: 1720 RPM (60 Hz)
Voltage: 460 V
Phase: 3-phase
Frequency: 60 Hz
Duty Rating: Continuous (S1)
Cooling: Air-cooled
Vane Type: Self-lubricating graphite composite
Lubrication: Oil-free
Noise Level: approx. 77–80 dB(A)
Filtration: Integrated suction filter and silencer
Mounting: Horizontal base mount

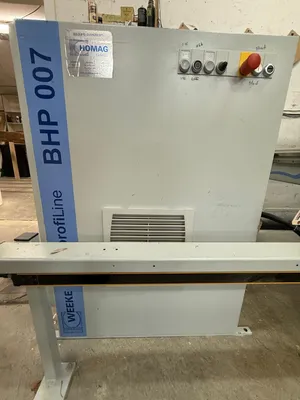

CONTROL
CNC Control: HOMAG / WEEKE Controller
Programming: WoodWOP Compatible

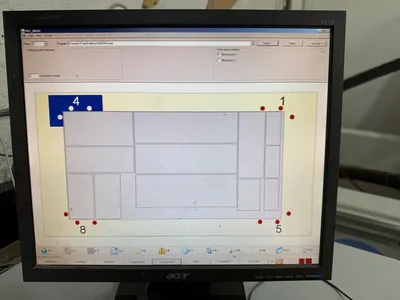

Interface: Industrial Control Panel with Display

Weight: 3100 LBS
Dimensions: 80'' X 150'' X 95''
