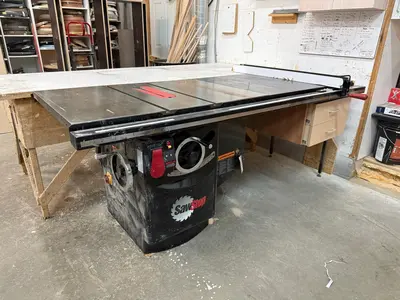

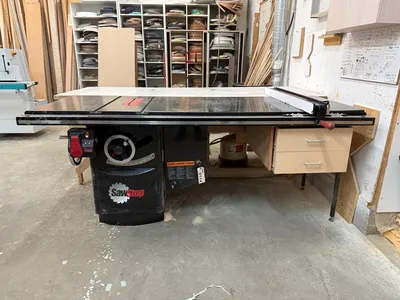

Manufacturer: SAWSTOP
Model: ICS73600
Mgf Date:
POWER: 600v, 60hz, 3ph
CUTTING CAPACITY
Blade Diameter: 10"
Blade Tilt: Left
Arbor Size: 5/8"
Maximum Cut Depth at 90°: 3-1/8"
Maximum Cut Depth at 45°: 2-1/4"
RIP CAPACITY (DEPENDS ON RAIL SET)
Rip Capacity Right of Blade:
52-1/2" with 52" rails
Rip Capacity Left of Blade: 12-1/2"

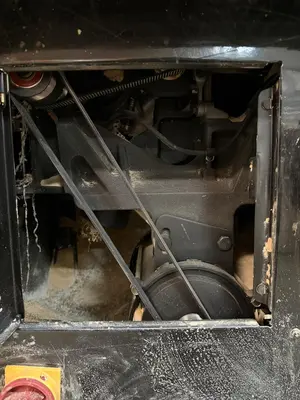

MOTOR & ELECTRICAL (ICS73600)
Motor Power: 7.5 HP
Rpm: 3450 rpm
Full Load Amps: 6.9 A
Motor Type: TEFC

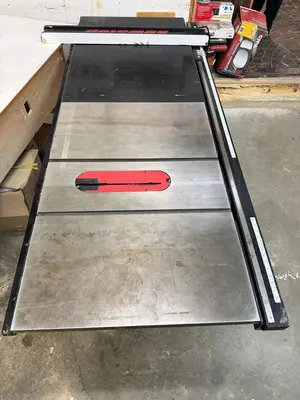

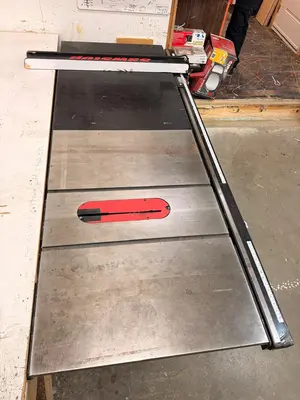

TABLE & DIMENSIONS
Total Table size: 30'' x 80''
Cabinet Footprint: 20" W × 25" D
Main Cast Iron Table: 24" W × 30" D
Table with Extension Wings: 44" W × 30" D
Extension Wing Size: 10" W × 30" D
Overall Dimensions (52" Rails): 85-1/4" W × 36-1/2" D × 34" H
ACCURACY & BUILD
Arbor Runout: Max 0.001"
Blade Lateral Movement: Max 0.006"
Blade to Miter Slot Alignment: Max 0.010"
Table Flatness (Diagonal): Max 0.010" gap
Table and Wing Flatness: Max 0.025" gap
Miter Slots: T-slot, 3/4" wide (top), 1" wide (bottom), 3/8" deep
Weight: 685 lbs
Dimensions: 30'' x 85'' x 37''
