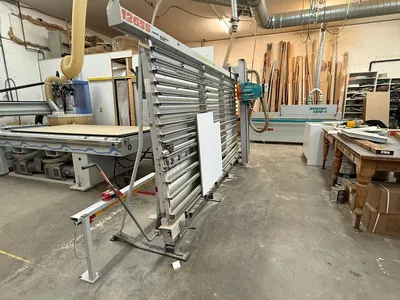

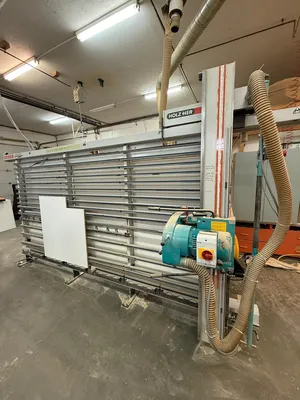

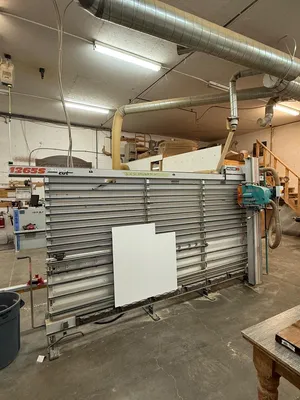

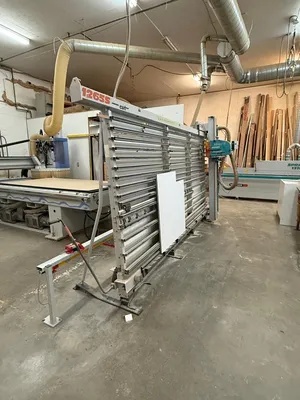

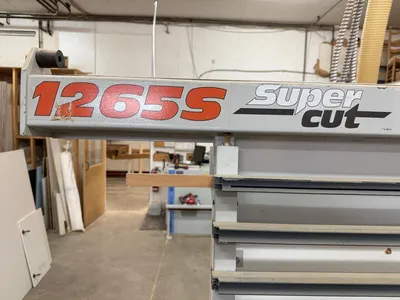

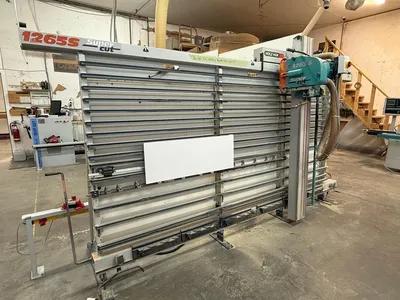

2003 HOLZHER 1265S VERTICAL PANEL SAW

Manufacturer: Holzher
Model: 1265S
Mgf Date: 2003

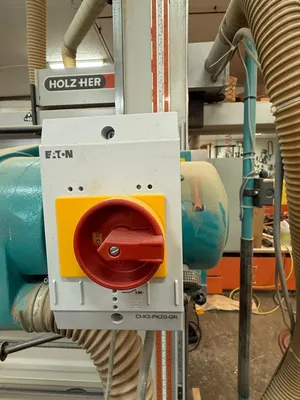

POWER: 400v, 50/60hz, 3ph

CUTTING CAPACITY
Maximum Panel Length (Horizontal Cut): approx. 3,200 mm (126")
Maximum Panel Height (Vertical Cut): approx. 2,100 mm (76")
Maximum Cutting Thickness: approx. 60 mm (2-3/8")
Minimum Strip Width: approx. 50 mm (2")

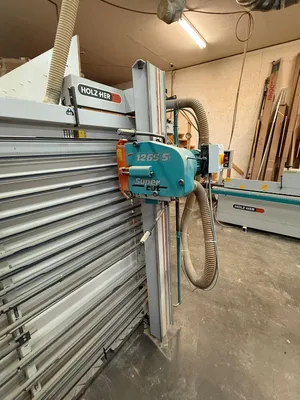

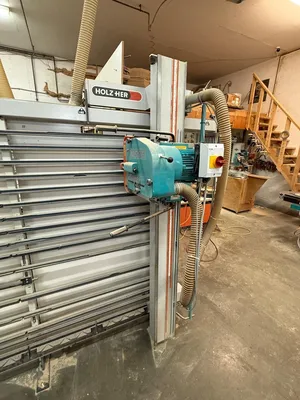

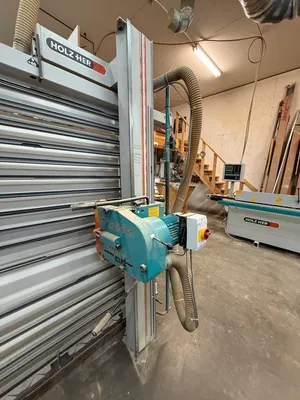

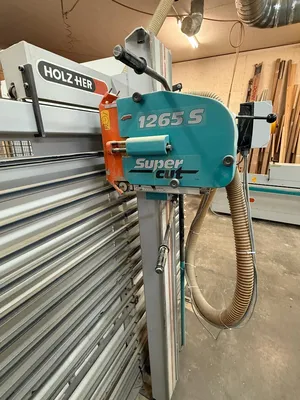

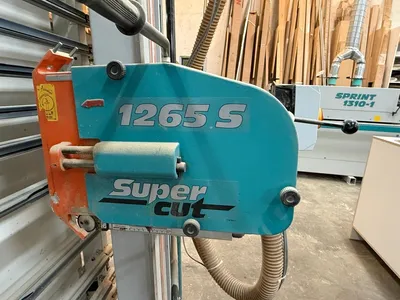

SAW UNIT
Main Saw Blade Diameter: approx. 250 mm (10")
Scoring Blade: Yes
Blade Tilt: Fixed (vertical / horizontal cutting via carriage)
Saw Motor Power: approx. 4 HP (3 kW)

MOTION & OPERATION
Vertical Saw Travel: Manual
Horizontal Saw Travel: Manual

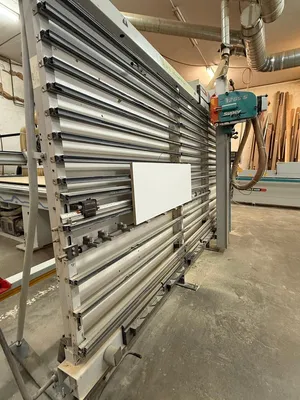

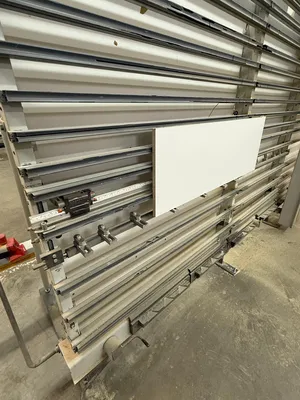

Panel Support: Roller supports with phenolic or aluminum strips

Cutting Modes:
Vertical cuts
Horizontal cuts

ACCURACY
Cutting Accuracy: approx. ±0.2 mm
Repeatability: approx. ±0.1 mm

DUST COLLECTION
Dust Ports: 2
Dust Port Diameter: approx. 100 mm (4")
Recommended Extraction Volume: approx. 1,200 – 1,500 m³/hr

CONSTRUCTION & FEATURES

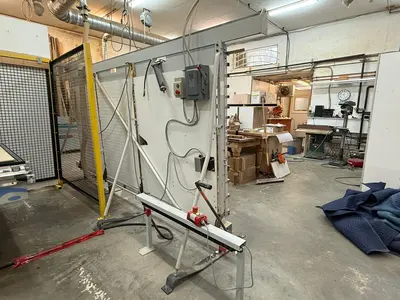

Heavy-Duty Welded Steel Frame
Industrial Aluminum Guides
Adjustable Material Stops
Integrated Scoring System
Designed for High-Volume Panel Processing

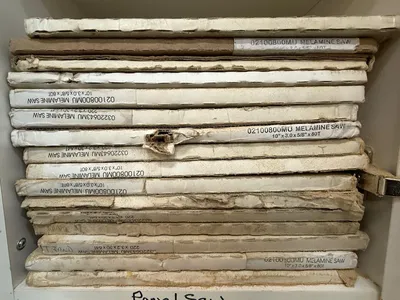

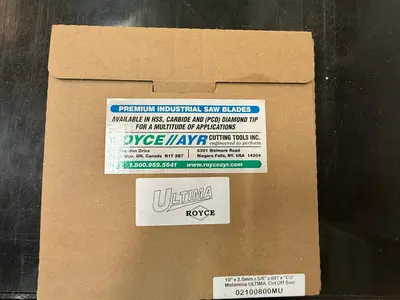

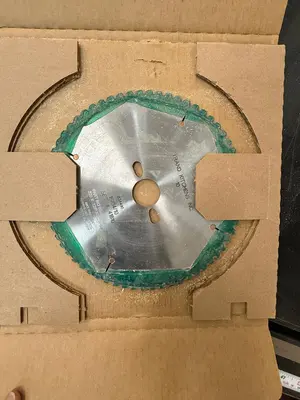

*Includes 17 Spare Blades*

Weight: 2000 lbs
Dimensions: 40'' x 150'' x 90''
