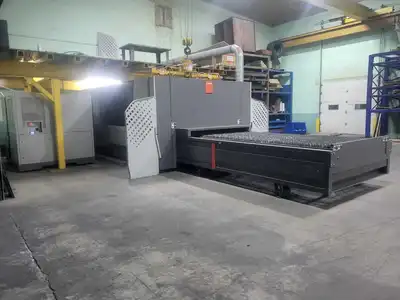

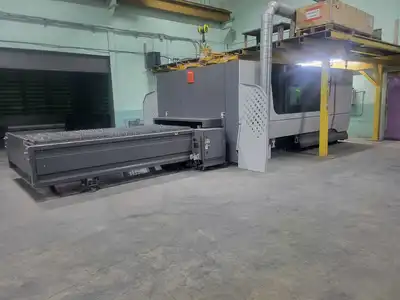

2021 BYSTRONIC BYSMART 3015 5' X 10' 6KW FIBER LASER CUTTING SYSTEM
Have one to sell?
ConditionUsed
1 available
2021 BYSTRONIC BYSMART 3015 5' X 10' 6KW FIBER LASER CUTTING SYSTEM
Manufacturer: Bystronic
Model: Bysmart Fiber 3015
Mfg Date: 2021
POWER: 480v,60hz, 3ph
HOURS: Cutting Hours: 2,809 hrs
Running Hours: 6,791 hrs
Mechanical / Machine Specs
Working Area / Table Size: 3000 mm × 1500 mm (5' × 10')
Dual Shuttle Table: Yes
Enclosure: Fully enclosed cutting cabin
Cutting Bed Condition: Still mounted with slag-loaded slats
Laser Cutting System
Laser Type: Fiber
Laser Power: 6,000 W (6 kW)
Laser Medium: Ytterbium Fiber
Wavelength: 1060–1080 nm
Head: Bystronic cutting head
Cutting Capacity:
Mild Steel
Max thickness: 1.25'' (30 mm)
Typical pierce: 1.0'' (25 mm)
Assist gas: Oxygen or Nitrogen
Stainless Steel
Max thickness: 1.00'' (25 mm)
Assist gas: Nitrogen
Aluminum
Max thickness: 1.00'' (25 mm)
Assist gas: Nitrogen
Positioning & Axis Position
X Travel: 3060 mm (120.4'')
Y Travel: 1530 mm (60.2'')
Z Travel: 150 mm (5.9'')
Max Simultaneous Speed: 140 m/min
Acceleration: 30 m/s²
Z-Axis Speed: 60 m/min
Accuracy: ±0.05 mm
Repeatability: ±0.03 mm
Pallet Shuttle System
Shuttle Table: Dual, automated
Exchange Time: ~25 seconds
Table Size: 3000 × 1500 mm
Software/CNC
CNC System: ByVision Cutting
OS: Embedded Windows
File Formats: DXF, DWG, IGES, GEO, Step

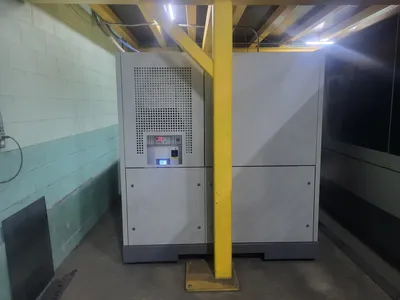

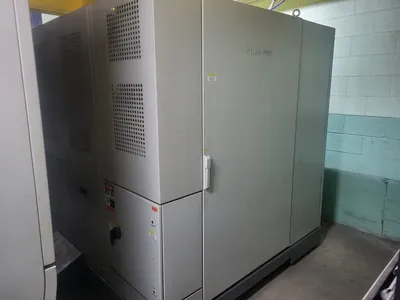

**Includes Chiller & Fume Extractor**
Weight: 20,000 lbs
Machine Dimensions: 32' x 22' x 10'ft
2021 BYSTRONIC BYSMART 3015 5' X 10' 6KW FIBER LASER CUTTING SYSTEM
Manufacturer: Bystronic
Model: Bysmart Fiber 3015
Mfg Date: 2021
POWER: 480v,60hz, 3ph
HOURS: Cutting Hours: 2,809 hrs
Running Hours: 6,791 hrs
Mechanical / Machine Specs
Working Area / Table Size: 3000 mm × 1500 mm (5' × 10')
Dual Shuttle Table: Yes

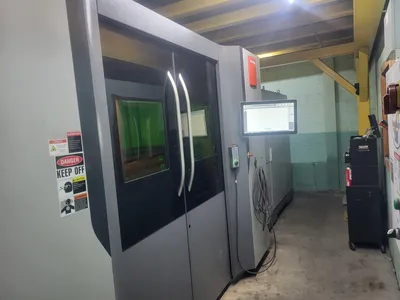

Enclosure: Fully enclosed cutting cabin

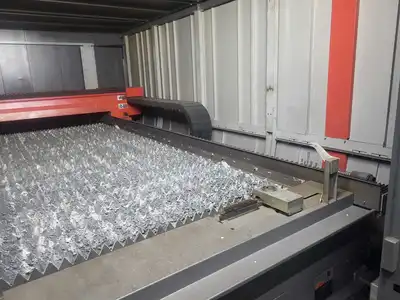

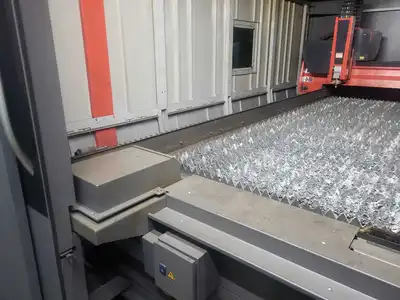

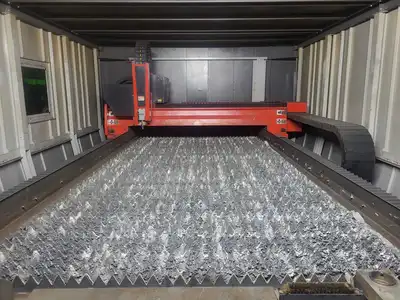

Cutting Bed Condition: Still mounted with slag-loaded slats
Laser Cutting System
Laser Type: Fiber
Laser Power: 6,000 W (6 kW)
Laser Medium: Ytterbium Fiber
Wavelength: 1060–1080 nm
Head: Bystronic cutting head
Cutting Capacity:
Mild Steel
Max thickness: 1.25'' (30 mm)
Typical pierce: 1.0'' (25 mm)
Assist gas: Oxygen or Nitrogen
Stainless Steel
Max thickness: 1.00'' (25 mm)
Assist gas: Nitrogen
Aluminum
Max thickness: 1.00'' (25 mm)
Assist gas: Nitrogen
Positioning & Axis Position
X Travel: 3060 mm (120.4'')
Y Travel: 1530 mm (60.2'')
Z Travel: 150 mm (5.9'')
Max Simultaneous Speed: 140 m/min
Acceleration: 30 m/s²
Z-Axis Speed: 60 m/min
Accuracy: ±0.05 mm
Repeatability: ±0.03 mm

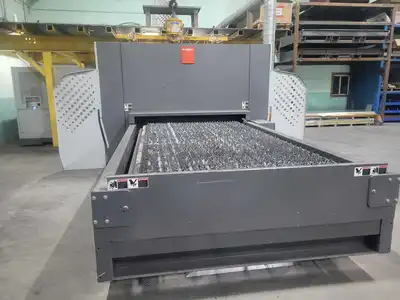

Pallet Shuttle System
Shuttle Table: Dual, automated
Exchange Time: ~25 seconds
Table Size: 3000 × 1500 mm
Software/CNC

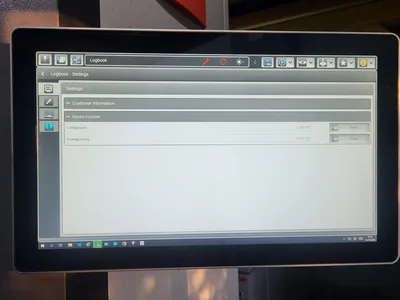

CNC System: ByVision Cutting
OS: Embedded Windows
File Formats: DXF, DWG, IGES, GEO, Step

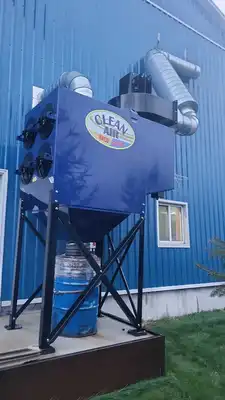

**Includes Chiller & Fume Extractor**
Weight: 20,000 lbs
Machine Dimensions: 32' x 22' x 10'ft
