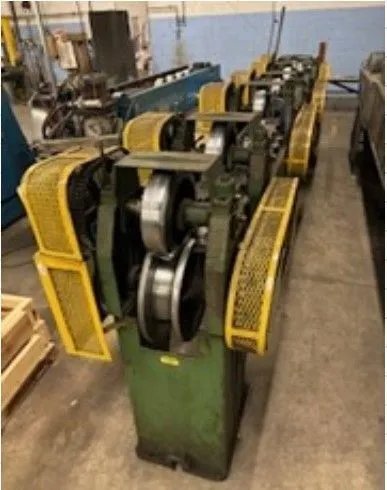

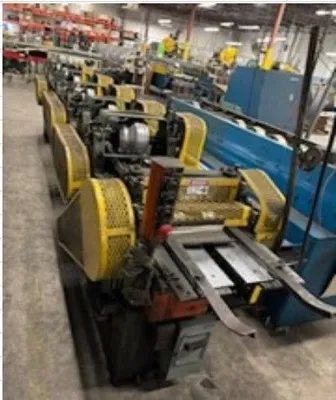

ARTOS 4'' OGEE ROLL FORMER
Manufacturer: ARTOS
Machine Type: 4'' OGEE
POWER: 230v, 60hz, 3-h
Performance
Maximum forming speed: 165 feet per minute
Operation: Continuous roll forming
Material Capacity
Materials: Aluminum, galvanized steel, painted steel
Maximum thickness: Up to 24 gauge steel (profile and material dependent)
Strip feed: Coil-fed strip
Roll Former Construction
Frame: Heavy welded steel frame
Roll stations: Multiple forming stands
Rolls: Hardened steel forming rolls
Roll shafts: Bearing-supported steel shafts
Guarding: Full safety guarding over roll stations
*Includes several press dies*
4'' OG End Cap
4'' OG Centre Drop/3"" Hole
4'' OG Connector
4'' OG Mitre Forming Third Stage
4'' OG Miter Second Stage Brake Die
4'' OG Mitre O/S Blanking Stage 1
4'' OG Mitre I/S Blanking Stage 1
4'' OG Mitre Forming
WEIGHT: 3,500 LBS
MACHINE DIMENSIONS: 144'' X 36'' X 50''IN
