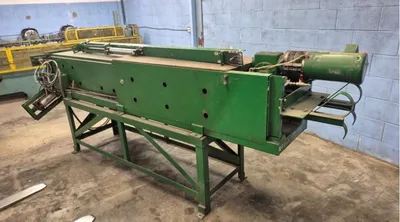

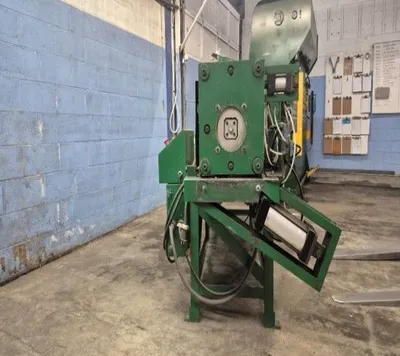

GROVER 2307A ROLL FORMER

Description

GROVER 2307A ROLL FORMER

Manufacturer: GROVER
Model: 2307A

POWER: 208/230/480v, 60hz, 3ph

Drive Motor
Manufacturer: Baldor
Motor type: Industrial electric motor
Horsepower: 3 HP

Full load amps:
208 V: 8.5 A
230 V: 8.5 A
460 V: 4.0 A
Speed: 1,725 RPM
Frame: 145TC
Enclosure: DP (Drip Proof)
Service factor: 1.15
Insulation class: B
NEMA nominal efficiency: 82.5%

Gear Reducer
Manufacturer: Peerless-Winsmith
Type: Speed reducer
Input speed: 1,800 RPM
Gear ratio: 30:1
Output torque: 1,297 in-lb
Input horsepower rating: 1.69 HP
AGMA service factor: 1.0
Lubricant: Oil, AGMA #3
Operating temperature reference: 51–110 °F

Roll Former Construction
Frame: Heavy welded steel frame
Drive system: Motor → gear reducer → mechanical drive to roll stations
Roll configuration: Multi-stand roll former
Roll shafts: Steel shafts with bearing support
Roll tooling: Hardened steel forming rolls (profile-specific)
Forming direction: Horizontal strip feed

WEIGHT: 3,000 LBS
MACHINE DIMENSIONS: 144'' X 36'' X 60''IN
