| Tonnage | 50 T | 45.359 t |
| Type | 'ELE' | 'ELE' |
| Overall Length | 10' | 3 m |
| Between Housings | 8.5' | 2.6 m |
| Stroke | 4" | 101.6 mm |
| Control | CNC | CNC |
| Dimensions | 129'' x 60'' x 96'' | 129'' x 60'' x 96'' |
| Weight | 13000 lbs | 13000 lbs |

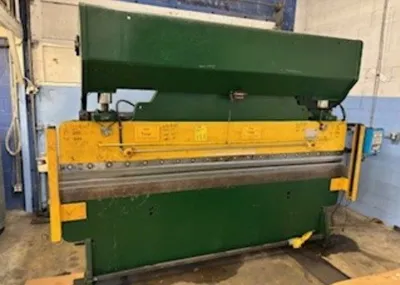

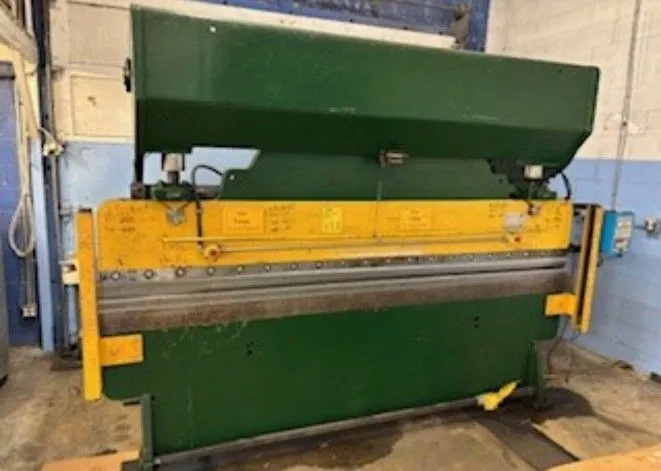

CHICAGO 810C 50 TON X 10 FT PRESS BRAKE
Manufacturer: Chicago
Model: 810C
POWER: 480v, 60hz, 3ph
Capacity
Bending capacity: 50 tons
Maximum bending length: 10 ft (120 in)
Ram / Bed
Ram stroke: 4 in
Ram adjustment: 4 in
Shut height: 12 in
Distance between housings: 102 in (8 ft 6 in)
Throat depth: 8 in
Speed
Strokes per minute: ~40 SPM
Drive & Electrical
Main motor: 5 HP
Motor speed: 1,800 RPM
*Includes CNC Backgauge*
Weight: 13,000 lbs
Machine Dimensions: 129'' x 60'' x 96'' in
