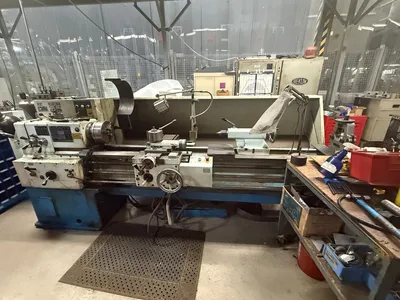

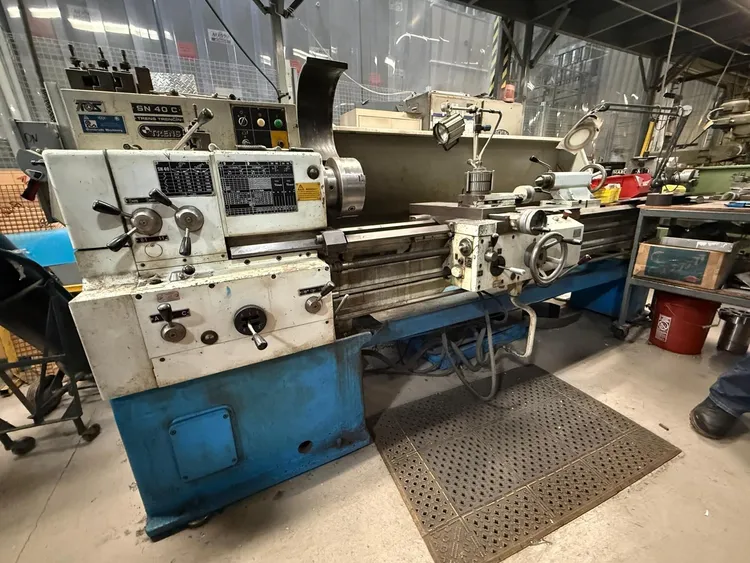

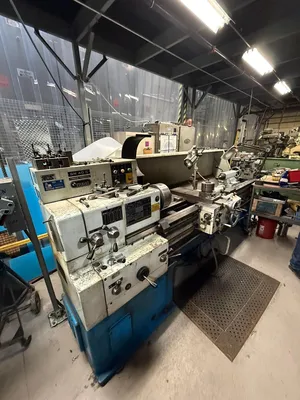

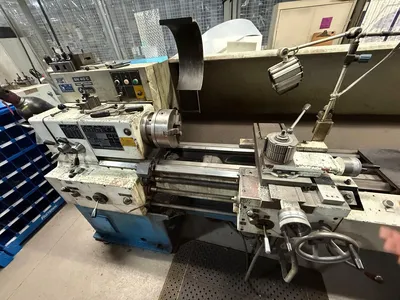

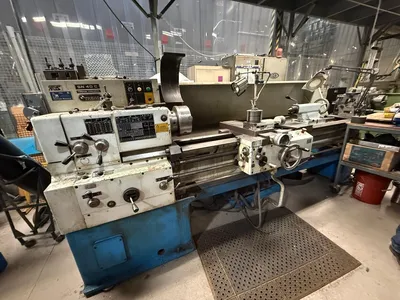

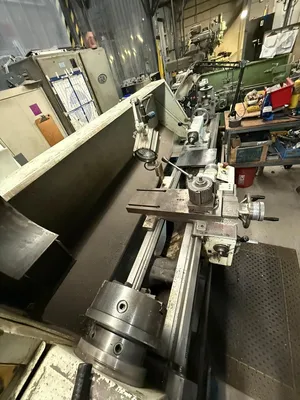

TOS TRENCIN SN40C MANUAL ENGINE LATHE
Have one to sell?
ConditionUsed
1 available
TOS TRENCIN SN40C MANUAL ENGINE LATHE
Manufacturer: TOS
Model: SN40C
POWER: 575v, 60hz, 3ph
Machine type: Manual engine lathe (gap-bed)
Swing over bed: 16'' (400 mm)
Swing over cross slide: 8-3/4'' (220 mm)
Swing in gap: 25'' (600 mm)
Distance between centers: 40'' (1000 mm)
Spindle bore: 2.04'' (51 mm)
Spindle nose: D1-6 Camlock
Spindle speeds: 22.4–2000 RPM
Power feeds (rate ranges):
Longitudinal: 0.05–0.8 mm/rev and 0.64–6.4 mm/rev (2 ranges)
Threading capability:
Inch threads: 1–80 TPI
Metric threads: 0.5–40 mm pitch
Leadscrew: 40 mm (≈1.5'') diameter, 6 mm pitch

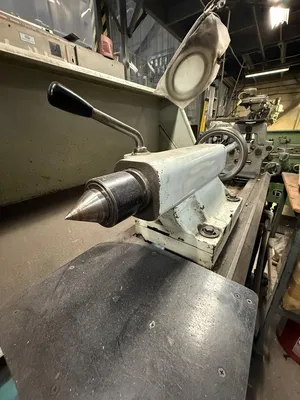

Tailstock quill (spindle) diameter: 2-3/4'' (≈70 mm)
Tailstock taper: MT5
Tailstock quill travel: 5'' (127 mm)
Main motor: 5.5 kW (7.5 HP)
Weight: 4,500 lb
Machine Dimensions: 124'' × 56'' × 68''in
