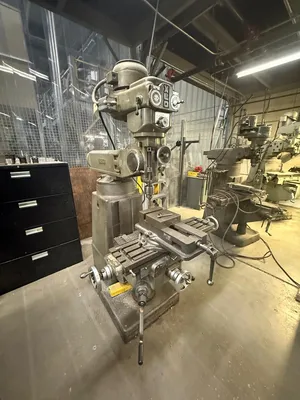

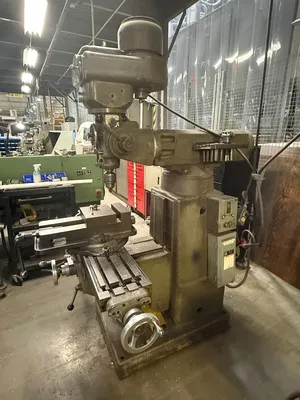

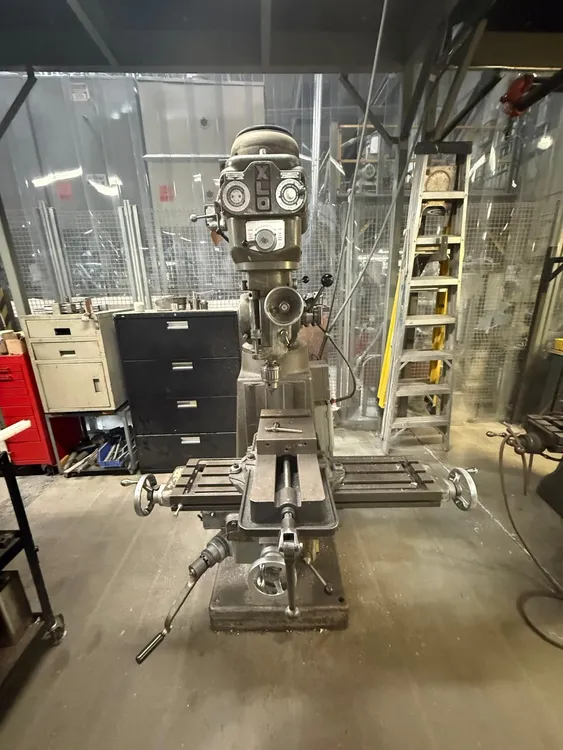

XLO 602 MANUAL VERTICAL KNEE MILLING MACHINE
Manufacturer:
Model: 602
POWER: 575v, 60hz, 3ph

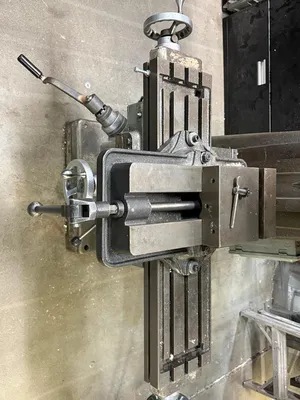

Table
9 in. × 36 in. table:
Cross travel (Y): about 13in.
Knee travel (Z): about 16 in.

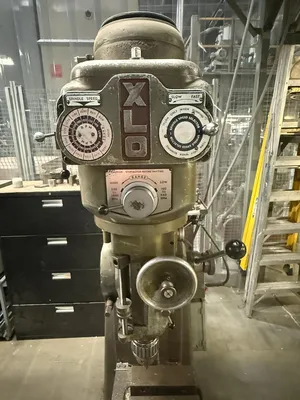

Spindle / Head
Spindle taper: R8
Quill travel: 6 in.
Spindle speeds:
Low range: about 100–640 RPM
High range: about 620–3800 RPM
Spindle rotation: reversible

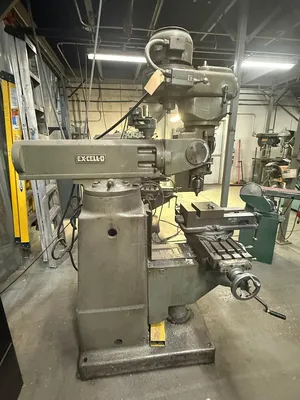

Ram / Turret
Ram travel (in/out): about 16 in.
Turret swivel: 360 degrees
Distances / Capacity
Spindle nose to top of table (max distance): about 18.5 in.
Motor / Electrical
Spindle motor:1.5 HP
Weight: 3,500 lbs
Machine Dimensions: 60in x 66in x 88in
